Feature:
is suitable for small wire cable processing, such as AC/DC, power cord, computer cable, electronic cable, multi-core cable.

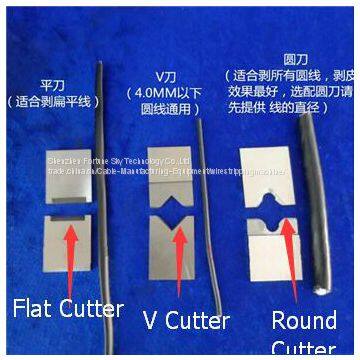

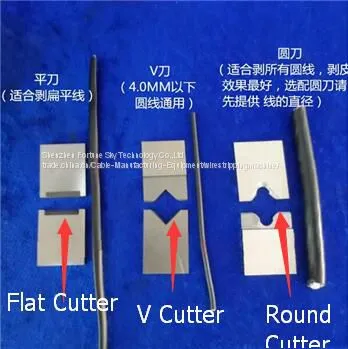

Cutter Types & Options:
Stripping cutter 1 set (2 pieces), LL-305 will be equipped with flat cutter in default, other models with v-cutter in default, flat cutter suits for flat cable, v-cutter suits for wire diameter 4.0mm or less (may adjust the size), round cutter suits for wire diameter 4.0mm above (diffirent wire size,diffirent round cutter size).
Please kindly provide your wire diameter and insulation thickness for choosing a suitable blade and model.
Machine Working Video
Specifications
Model No. |
LL-305 |
LL-310 |
LL-315 |
LL-330 |
LL-416 |
LL-520 |
Stroke |
50mm |
100mm |
150mm |
330mm |
150mm |
500mm |
Stripping (Diameter) |
Max 7mm |
Max 12mm |
Max 18mm |
Max 20mm |
Max 25mm |
Max 40mm |
Power Voltage |
AC 110V/220V/60Hz/20Hz |
|||||
Air Pressure |
3-7KG/CM2 |
|||||
Force |
31-73kg |
49-115kg |
84-196kg |
84-196kg |
165-300kg |
400kg |
Net.Weight |
20KG |
25KG |
35KG |
65KG |
45KG |
102KG |
Size: mm |
400x300x270 |
480x330x280 |
660x390x340 |
1100x550x450 |
615x425x375 |
900x700x600 |
