Automatic Wire Cut Strip Cable Bending Machine

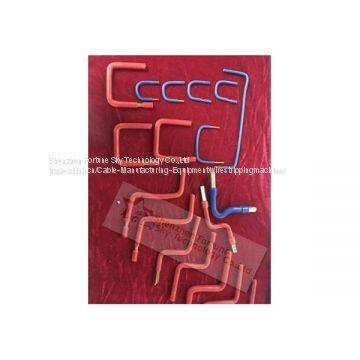

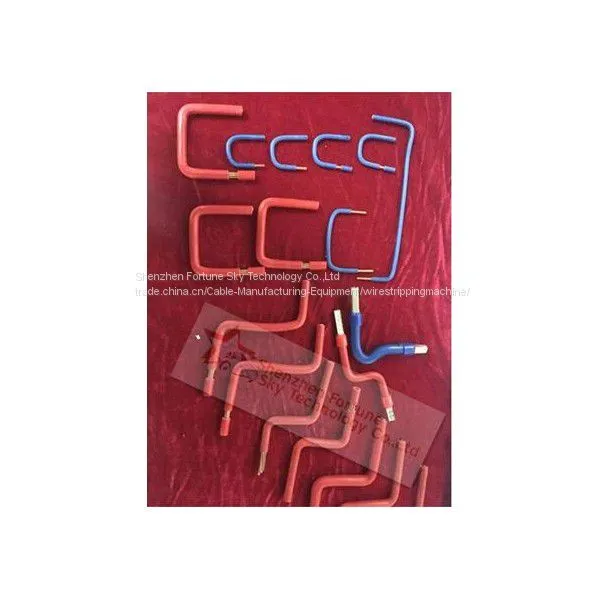

It can strip bend cut full automatically
Product Feature:
The machine uses a hybrid drive microcomputer full LCD control system, specialized for the cutting,stripping,
dual direction 30 degrees to 90 degrees bending of wire harness used in automobile,power plant, power
distribution box, battery box and other industries.
Machine Working Video
Technical Parameters
Applicable Wire Range |
|||
Function |
Wire cutting, stripping, bending |
||
Cutting wire core |
0.1-6mm2 |
0.1-16mm2 |
0.1-25mm2 |
Production Capacity |
200-800pcs/hour (decided by wire type) |
||
Cutting Length |
0.1mm-99999.9mm |
||
Intermediate strip no. |
13 strips |
||
Stripping length |
Strip front 0.1-30mm, Strip rear 0.1-20mm |
Strip front 0.1-50mm, Strip rear 0.1-20mm |
|
accuracy of inlet outlet motor |
Mute hybrid stepping motor 0.1mm per step |
||
Remark Function |
Auto-inlet, auto-outlet, timing start |
||
Driving Mode |
2 wheels |
4 wheels |
4 wheels |
Dimension |
420X297X345MM |
530X420X370MM |
|
Net Weight |
30KG |
38KG |
|
Blade material |
Import tungsun steel/high speed steel |
||
