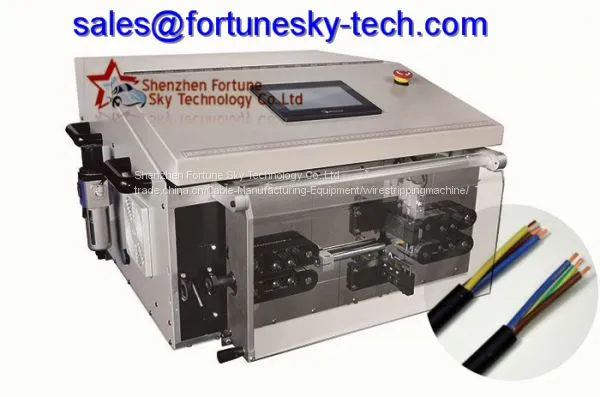

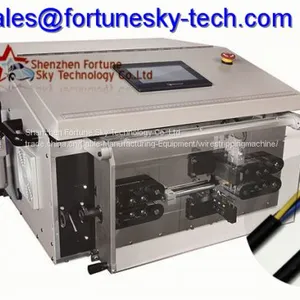

Fully Automatic Round Sheathed Cable Cutting Stripping Machine
Machine Working Video
Stripping machine parameters:
Model No.: DM8500
Wire cutting capacity: 50mm ~ 9999mm
Processing diameter: 3.0-8.0mm
Cutting depth unit: 0.01mm
Processing efficiency: 400-700pcs per hour (depended by wire )
Maximum capacity of sheath stripping: left rear: 45mm / right rear: 100mm
Shortest sheath stripping length: 35mm
Dimensions: 560X690X400mm
Weight: 102KG
Power: AC220V 50 60HZ Power: 500W
Features:
1. This machine is suitable for processing multi-core power cord and special single-core wire;
2. wire cutting, stripping jacket, stripping core wire and other complex work order can be completed on the machine, to maximize the saving labor costs and improve processing quality;
3. The mobile blade holder, cutting, stripping were used different tools to complete, cut neatly, stable stripping quality;
4. Up to 100 groups of storage capacity, so that a variety of data processing intact, retrieved at any time!
Economical alternative is Pneumatic Jacket Multicore Wire Stripping Machine
