Hydraulic-Roller Rolling Machine/Hydraulic Symmetric Three-Roll Rolling Machine
US$ 100 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
wenao
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Technical Parameters for High Drecision Small-size Upper-roller Universal Plate Rolling MachineUS$ 10,000 - 99,999MOQ: 1 Set -
Series W11Y Hydraulic 3-roller Symmetrical Plate Rolling Machine/shear Brake and Slip Roll MachineUS$ 1 - 99,999MOQ: 1 Set
-
High Precision Medium and Large-size Upper-roller Universal Plate Rolling MachineUS$ 10,000 - 75,000MOQ: 1 Set
-
Upper-roller Universal Rolling Machine & Plate Rolling Machine, Plate RollerUS$ 38,000 - 89,999MOQ: 1 Set
-
W11 Mechical 3-roller Symmetrical Plate Rolling Machine, Manual Sheet Metal Rolling Machine&machinery Sheet Bending MachineUS$ 30,000 - 55,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
wenao
Model Number
W11Y Series
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Manual
Extra Services
End Forming
Certification
Other, ISO 9001:2000, CE and ISO
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Hydraulic 3 Roller bending machine1. High precision,Wide application
2. The two lower rollers can move up & down

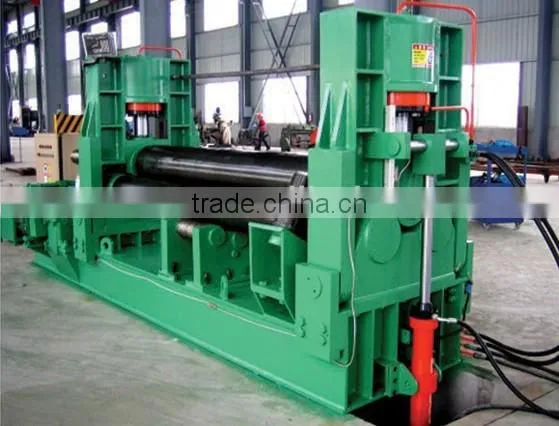

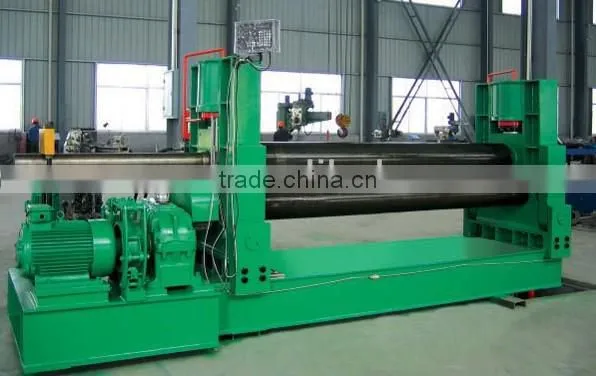

W11Y Hydraulic-Roller Rolling Machine/Hydraulic Symmetric Three-Roll Rolling Machine
Specifications
The two lower rollers can move up & down in arc way around fixed roller,It can finish pre-bending &rolling by feeding once.
Hydraulic 3 Roller Plate Bending Machine
1) The two lower rollers can move up and down in arc way around fixed roller upper roller
2) It can finish pre-bending and rolling by feeding once.
3) The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate

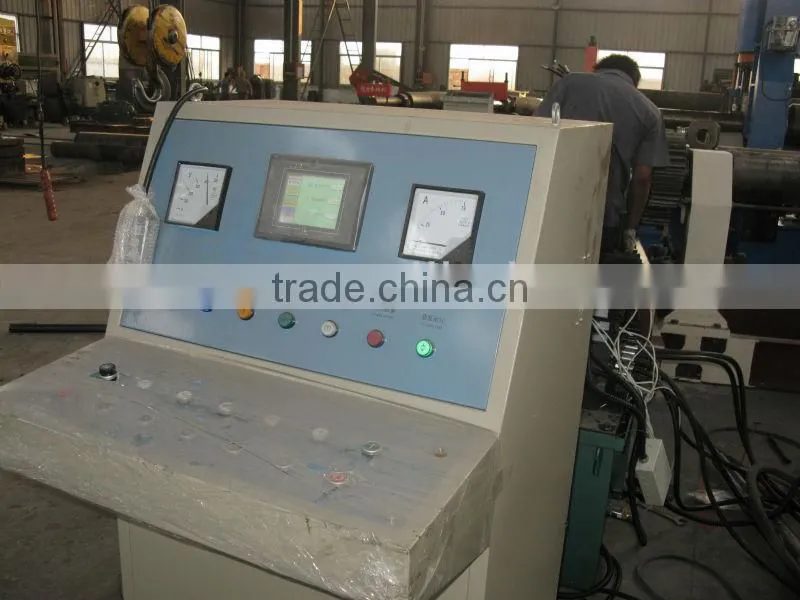

4) It is controlled by micro-machine and has digital display, simply operation and high efficiency
5) With compact structure, it is economical and practical and fit for rolling thin and medium plates
| Model type | Max.thickness(mm) | Width(mm) | Yield limit (Mpa) | Rolling Speed (m/min) | Min. full loading diameter (mm) | φupper(mm) | φUnder(mm) | Center(mm) | Main motor power(kw) | Hydraulic motor power(kw) |
| W11Y-30*2000 | 30 | 2000 | 245 | 4 | 1200 | 360 | 290 | 480 | 22 | 7.5 |
| W11Y-25*2500 | 25 | 2500 | 245 | 4 | 1200 | 370 | 300 | 480 | 22 | 7.5 |
| W11Y-30*2500 | 30 | 2500 | 245 | 4 | 1200 | 420 | 360 | 550 | 30 | 11 |
| W11Y-25*3000 | 25 | 3000 | 245 | 4 | 1200 | 430 | 370 | 550 | 30 | 11 |
| W11Y-30*3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 30 | 11 |
| W11Y-40*2500 | 40 | 2500 | 245 | 3.5 | 1400 | 500 | 400 | 600 | 37 | 15 |
| W11Y-40*3000 | 40 | 3000 | 245 | 3.5 | 1600 | 540 | 440 | 600 | 45 | 18.5 |
| W11Y-50*3000 | 50 | 3000 | 245 | 3.5 | 2000 | 580 | 480 | 750 | 55 | 22 |
| W11Y-60*3000 | 60 | 3000 | 245 | 3.5 | 2400 | 660 | 560 | 800 | 75 | 30 |
| W11Y-70*3000 | 70 | 3000 | 245 | 3.5 | 2800 | 710 | 620 | 850 | 90 | 37 |
| W11Y-80*3000 | 80 | 3000 | 245 | 3.5 | 3200 | 770 | 680 | 900 | 90 | 37 |
| W11Y-90*3000 | 90 | 3000 | 245 | 3.5 | 3600 | 820 | 730 | 950 | 110 | 45 |
| W11Y-100*3000 | 100 | 3000 | 245 | 3.5 | 4000 | 860 | 770 | 1000 | 110 | 45 |
| W11Y-110*3000 | 110 | 3000 | 245 | 3.5 | 4400 | 900 | 810 | 1080 | 132 | 55 |
| W11Y-120*3000 | 120 | 3000 | 245 | 3.5 | 4800 | 950 | 860 | 1160 | 132 | 55 |
