Upper-roller Universal Rolling Machine & Plate Rolling Machine, Plate Roller

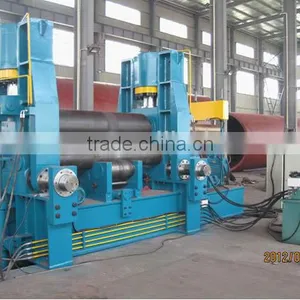

Upper-roller Universal Rolling Machine & Plate Rolling Machine, Plate Roller thumbnail-1

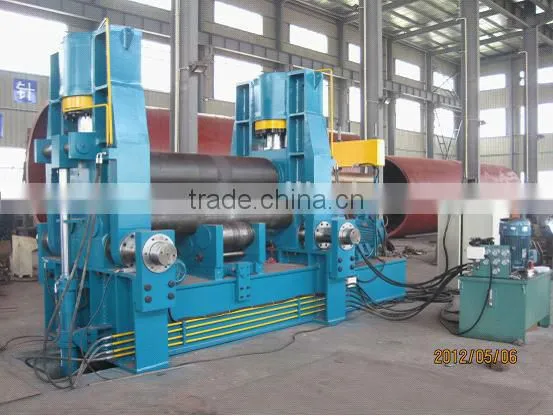

Upper-roller Universal Rolling Machine & Plate Rolling Machine, Plate Roller photo-1
US$ 38,000 - 89,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
wenao
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name wenao
Model Number W11SNC-16X2000
Machine Type Roller-Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Other, mechnical
Automation Manual
Extra Services End Forming
Certification ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Upper-roller Universal Rolling machine
1.High precision,Wide application
2.ISO9001:2008
3.High performance

Upper-roller Universal Rolling machine & Plate rolling machine, plate roller Upper-roller Universal Rolling machine, Upper-roller Universal Rolling machine, mechical 3-roller symmetrical rolling machine, Manual rolling machine



We offer a wide array of excellent quality heavy duty plate bending machine. We have firmly positioned ourselves as one of the supreme automatic plate bending machine manufacturers, based in China. Plate bending machine is manufactured from the high grade raw materials under the supervision of experts so as to assure the quality. Utilization of modern equipments in the manufacturing of heavy duty plate bending machine make them perfect for steel & aluminum fabrication, cone making, ship & marine building and for other applications. Plate bending machine encompasses both brilliant quality and long lasting excellent performance.

Machine Application & Usege :

 -Boiler Tank , Air Conditioning Channels, Sheet Metal Cover.

 -Cone Making & other Aluminum & Steel Fabrication, Marine & Ship Building, Pressure Vassals, Wind Mills.



Technical Features :

-Bottom roll are fixed and driven by Gears and warm Reduction Gear Box. Top Roll rotates in fixed positions and can be adjusted up & down manually by adjustable screws.

-Housing are made from M.S. Plate of suitable strength and mounted on heavy base frame. Rolls are made from forged steel and perfectly machined for accurate result.

-For longer life and smooth working of machine, Gun Metal Bushes are provide and given sufficient lubrication system.


Performance:

The machine adopts 3-roller  symmetrical structure with the upper roller moving vertically in the center between the through the drive of the screw the nut , the worm and he lead screw,The two lower rollers rotates  ,and provides the engagement of the output gear of the moderator with the gear of the lower rollers. The disadvatage of the machine is that the ends of the plate materials need to have the help from other equipment for prebending.

specifications:




specification
Max.thickness
of coiled plate
Max. width
of coiled plate
Yielding limit
of sheet metal
Coiling speed

Min full loading
 diameter of coiled plate
Diameter of
top shaft
Diameter of
bottom shaft
Central distance
between bottom shafts
Motor power
mm mm mm m/min mm mm mm mm kw
W11-6X1500 6 1500 245 5 380 160 140 220 4
W11-6X2000 6 2000 245 4.5 380 170 160 260 5.5
W11-6X3200 6 3200 245 4.5 380 220 180 280 7.5
W11-8X2000 8 2000 245 4.5 400 185 170 260 5.5
W11-8X2500 8 2500 245 4.5 550 240 180 280 7.5
W11-12X2000 12 2000 245 4.5 550 240 180 280 7.5
W11-12X2500 12 2500 245 4.5 600 260 220 320 11
W11-12X3000 12 3000 245 4 700 280 240 360 11
W11-16X2000 16 2000 245 4 600 260 220 320 11
W11-16X2500 16 2500 245 4 700 280 240 360 15
W11-16X3200 16 3200 245 4 850 340 260 430 18.5
W11-20X2000 20 2000 245 4 700 280 240 360 15
W11-20X2500 20 2500 245 4 850 340 260 430 18.5
W11-25X2000 25 2000 245 4 850 330 270 430 18.5
W11-25X2500 25 2500 245 4 900 370 270 480 22
W11-30X2500 30 2500 245 4 1200 420 360 550 30
W11-30X3000 30 3000 245 4 1200 450 390 600 37
W11-40X2500 40 2500 245 4 1250 500 400 600 37
W11-50X2500 50 2500 245 4 1250 540 440 630 37




                                 Upper-roller Universal Rolling machine & Plate rolling machine, plate roller
