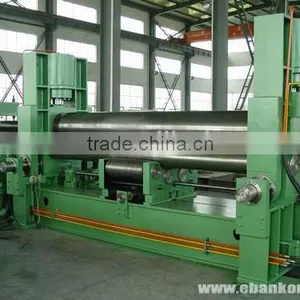

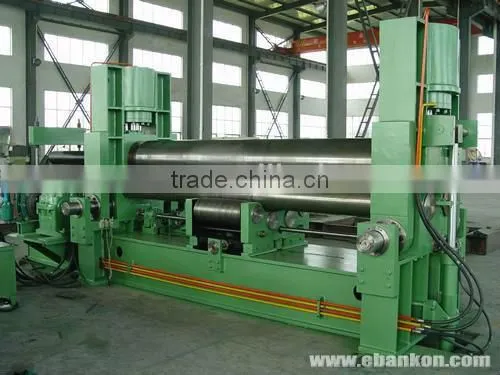

High precision medium and large-size upper-roller universal plate rolling machine

Specifications

Universal plate rolling machine
Cone device
Up driver roller
Pre-bending function
ISO&CE

 High precision medium and large-size upper-roller universal plate rolling machine,  Universal plate rolling machine, Specification plate bending machine, Plate rolling machine



Usage

1. High productivity and good precision for metal sheets bending, different up-die and bottom-die, working for multifarious pieces. One-off bending shaped by one time stroke. Can make complex shapes by repetitious bending work. Can punch with corresponding die.

2. Mechanical stopper in oil cylinder, typical of high feedback precision for position of gliding block ,accurate and stable operation,good synchronizing performance ,and high repeated positioning precision of gliding block.



Model	Plate width	Max.  plate thickness	Pre-bending  thickness (mm)	Minimum  reel diameter	Plate yield  limit (MPa)	Diameter of  upper roller  (mm)	Diameter of  lower roller  (mm)	Diameter of  side roller  (mm)
W11S-12×4000MM	4000	12	8	800	245	380	340	280
W11S-16×3200	3200	16	12	800	245	380	340	280
W11S-20×2500	2500	20	16	800	245	380	340	280
W11S-25×2000	2000	25	20	800	245	380	340	280
W11S-32×2500	2500	32	25	1500	245	520	500	350
W11S-32×4000	4000	32	25	1300	245	650	580	480
W11S-40×3200	3200	40	32	1300	245	650	580	480
W11S-45×2500	2500	45	40	13600	245	650	580	480
W11S-50×2000	2000	50	42	1300	245	650	580	480
W11S-50×3200	3200	50	40	1800	245	680	650	520
