Specifications
Upper-roller universal plate rolling machine1.High precision,Wide application
2.High performance
3.NC system
Technical parameters for high drecision small-size upper-roller universal plate rolling machine, Upper-roller universal plate rolling machine, mechical 3-roller symmetrical, Rolling machine
W11S- Upper-roller All-directional Adjusting Roll-bending Machine

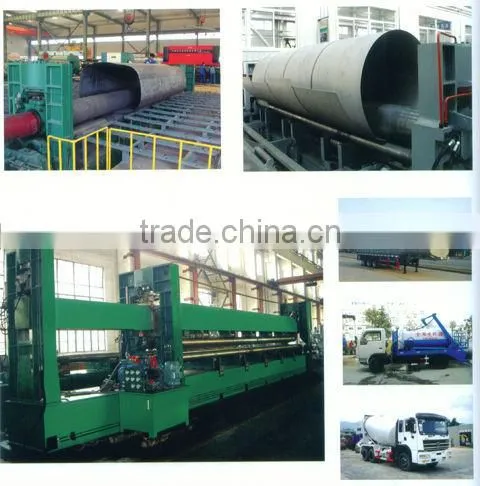

This machine used to make the steel plate into barrel shape,Circular shape,Conical sharp, etc.
The upper roller can move vertically as well as horizontally, it can finish the pre-bending work and rolling work at the same machine.
The upper roller is drum-type design, so it has the anti-deformation function. There is equipped the supporting rollers under the lower rollers, it can help to make the high precision products.
The lower rollers are fixed symmetrically deployed relatively to upper roller; mechanical drive is employed for driving lower rollers. Upper roller ascends or descends at the central symmetric location of the lower rollers; the ascending and descending are hydraulic driven. Upper roller moves to the left or right position to prepare for pre-bending work. The limited switches control the shift position. The upper roller movement is PLC controlled and LCD display is employed for displacement.
Hydraulic drive is employed for reversing and resetting of the reversal side.
Moving control station is employed for the control system; you can operation the machine at any position around the machine.
Performance:
- Preeminence goods precision.
- Unique curved technology, the end part of high accuracy has in advance curved, no back angle when bending continuously, curved course digital control.
- Man-machine interaction control interface, efficient intelligent operation.
- Physical curved technology softwware, man-machine interaction window, curved course automatic compensation.
- Single person operation, efficient asfe convenient.
- Rich curved shape, have rolling O type, U type, multistage R and other different shape.
- The option of much type is made, according to use or user requirement, have economic type number to show type and the TNC type option of numerical control.
Parameter
Parameter |
12×2000 |
16×2000 |
16×2500 |
18×3000 |
|
Max.Rolling Thickness |
mm |
12 |
16 |
16 |
18 |
Max.Pre-rolling Thickness |
mm |
10 |
12 |
12 |
14 |
Plate Width |
mm |
2000 |
2000 |
2500 |
3000 |
Diameter of Upper Roller |
mm |
250 |
255 |
300 |
350 |
Main Motor Power |
kw |
5.5 |
7.5 |
15 |
15 |
