Specifications
3 roller asymmetric plate rolling machineISO certification
Easy operation
outstanding precision

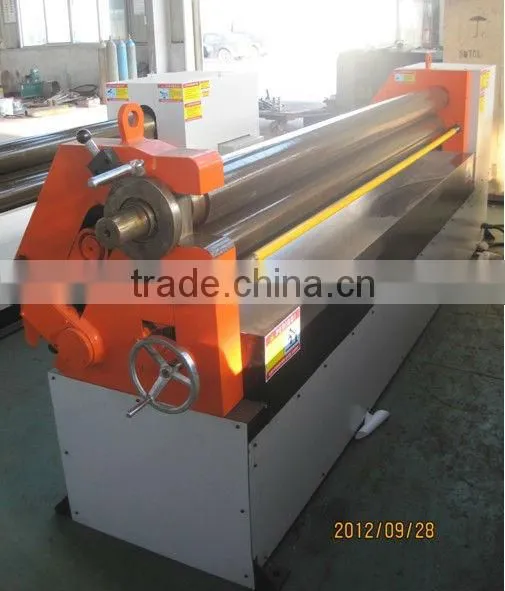

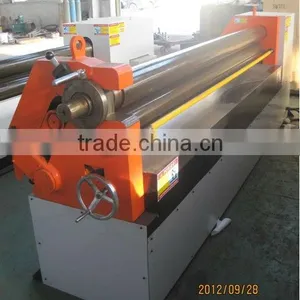

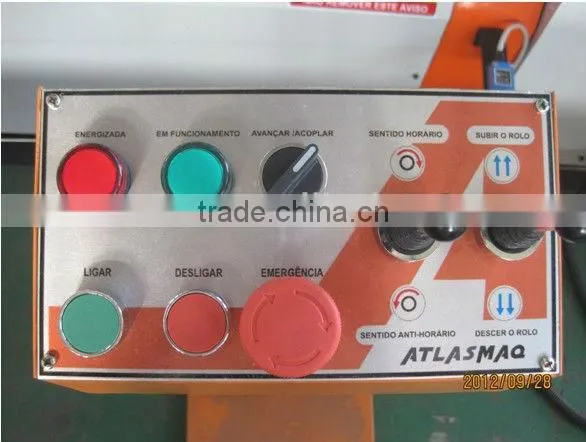

3 roller asymmetric plate rolling machine (W11F-3x1000)
Main characteristic
This is a type of 3 roller asymmetric plate rolling machine.The upper roller is the main drive. The bottom roller
do the elevation movement,through the meshing between the gear of up and bottom roller to clamp the plate
tight.The side roller do the movement of inclined lifting.There’s a double function of pre-bending and circle.It’s
impact and easy to operate and maintenance.
Main structure
1.The down rollers is the main drive, do the movement of elevation. Through the meshing of the gear between
the up and bottom roller to drive the upper roller rotate. The side roller for tilting lifting motion.It’s have double
function of pre-bending and circle.Compact structure and easy operation and maintenance.
2.The machine consists of two parts, the operation part and the transmission part which are welded at the
whole bottom pallet. The operation part consists of left and right bearing housing, one upper roller, one lower
roller and one side roller, lifting gears and some accessories. The lower roller is the main one, upper roller can
be adjusted at the height. The transmission part consists with the main motor, speed-reducing motor and
other accessories.
3.The lower roller is driven by the main motor through the reducer. The main reductor output shaft transmits to
the two lower rollers through a group of gear wheel. Through the meshing with lower roller gear and upper
roller gear to drive the upper roller.
4.The down rollers’ elevation come from the handle wheel rotate to drive the cam.

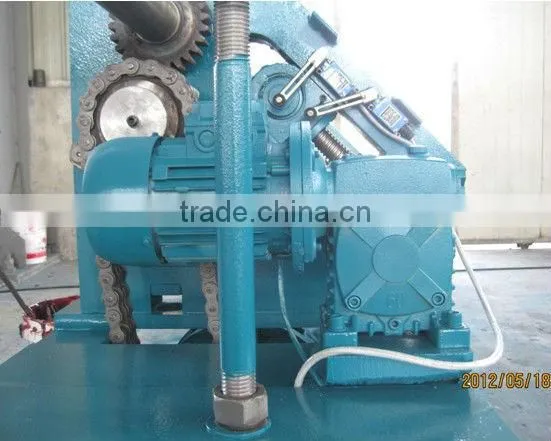

5.The auxiliary engine drive the worm screw, worm wheel,screw nut,screw mandrel to make the side roller do
elevation movement.
6.Drop the roller to the appropriate height when unloading.After the machine stopping,take the sliding set from
upper roller.Turn the upper roller to certain angle,the rolled metal cylinder can get out from one side of the
upper roller.
