Mechanical 3-roller Rolling Machine

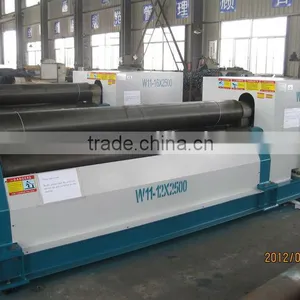

Mechanical 3-roller Rolling Machine thumbnail-1

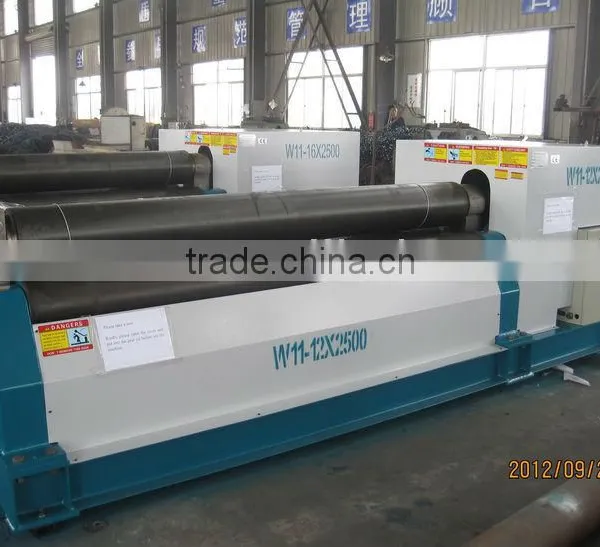

Mechanical 3-roller Rolling Machine photo-1
US$ 1 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name WENAO
Model Number W11-16X2500
Machine Type Roller-Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services End Forming
Certification Other, ISO 9001:2000 CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Mechanical 3-roller rolling machine
1)DRO for back guage
2)Unlimited length cut for back guage
3)Front and side guard fra

Mechanical 3-roller rolling machine



Mechanical 3-roller rolling machine W11-16X2500

Working principle: upper roller do vertical up-and-down movement along the central axis, two down roller keep rolling, whose motive power comes from reducer output.

Need the help of other machine to do pre-bending.

Note: main difference from hydraulic 3-roller rolling machine is this kind no use of oil hydraulic.



Main Technical Data of the Equipments



Max Thickness of Coiled Plate             16mm

Max Width of Coiled Plate                 2500 mm

Yielding Limit of Steel Plate             245Mpa

Min full loading diameter of coiled plate 650mm

Diameter of Top Shaft                     260mm

Diameter of Bottom Shaft                  220mm

Central distance between bottom shafts     320mm

Coiling Speed                             4m/min

Main Reductor Model                       ZSY200 Reductor

Main Motor Power                          11kw

Auxiliary Reductor Model                  JZQ250 Reductor

Auxiliary Motor Power                     7.5kw

Appearance Dimensions                     4680*1250*1450mm

Weight                                    5800kgs



Mechanical 3-roller rolling machineMechanical 3-roller rolling machine

Mechanical 3-roller rolling machineMechanical 3-roller rolling machineMechanical 3-roller rolling machineMechanical 3-roller rolling machineMechanical 3-roller rolling machineMechanical 3-roller rolling machineMechanical 3-roller rolling machine
