Specifications

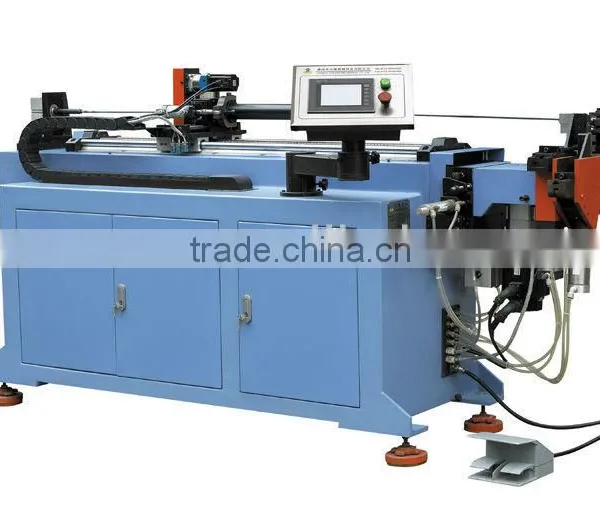

CNC bending machine1)Adopt numerical control module
2)dialogue type operation
3)program enactment easy
CNC bending machine , pipe bender, tube bender
Instruction:
Manual,automatic and semi-automatic different function machine.
It has mobile pedal switch,emergency stop function,high safty.
The cooling system make the machine running stable.
Compact bending design and handle provide the biggest bend space.
The fast mould changing device is better for flexible production.
Ingenious design with high elastic structure make the area of intervention fall to the minimum.
Attach various special accessories for you choose.
The panel display the movement situation of machine.
Can set 2 kinds of angle for take turns.
The program is simple and understandable,it can be control without high technical personnel.
The technical parameters:
Technical parameters |
SB63NC |
Max bending capability |
φ63×3mm |
Bending radius |
50~280mm |
Min bending radius |
R≥1.5D |
Bending angle |
0~190° |
Valid mandrel bar |
0~2800mm |
Bending speed |
45°/sec |
Bending accuracy |
±0.15° |
Main motor power |
5.5Kw |
System hydraulic pressure |
12MPa |
Size |
3800×1050×1300mm |
Weight |
About 1460kg |
