Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > DW-50 CNC Semi-automatich Hydraulic Pipe Bender/tube Bender

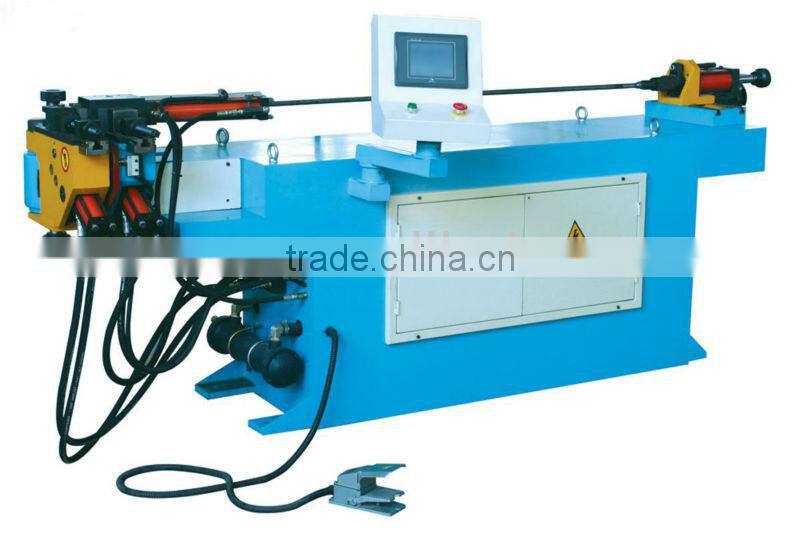

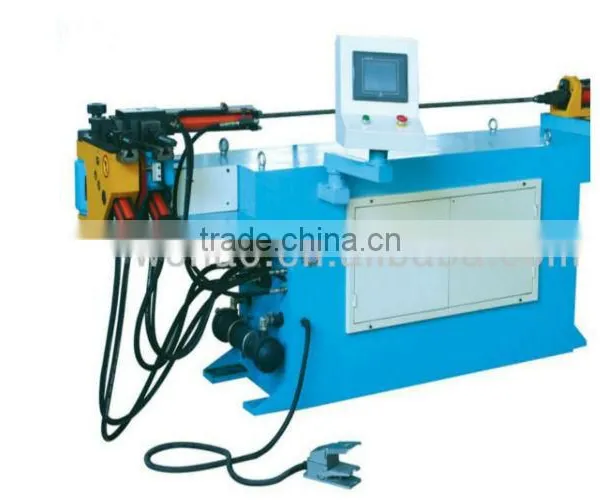

DW-50 CNC Semi-automatich Hydraulic Pipe Bender/tube Bender
US$ 5,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Wenao
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DW460NC Hydraulic Pipe Bending Machine, Pipe Bending Machine, Bending Machine for SaleUS$ 1,230 - 11,470MOQ: 1 Set -
Hydraulic Pipe Bending Machine for Sale, High Quality Pipe Bending Machine, Bending MachineUS$ 1,580 - 12,879MOQ: 1 Set
-
BD-400 Grate Cooler, Cooler, Grate Cooler ParameterUS$ 12,500 - 28,500MOQ: 1 Set
-
YB-150F Automatic Powder Packing Machine, Small Packing Machine for Sale, Packing Machine From ChinaUS$ 1,000 - 25,100MOQ: 1 Set
-
YB-150F Powder Packing Machine, Automatic Small Packing Machine for Stevia, Packing Machine for CoffeeUS$ 1,100 - 25,200MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Wenao
Model Number
DW38-CNC
Machine Type
Pipe and Tube Bending Machine
Raw Material
Pipe
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
Machining
Certification
ISO 9001:2000
After-sales Service Provided
Overseas third-party support available
Specifications
Hydraulic pipe bender machine1)Adopt numerical control module
2)dialogue type operation
3)program enactment easy
DW-50 CNC semi-automatich hydraulic pipe bender/tube bender, Hydraulic pipe bender machine, Electric hydraulic pipe bender, Tube bender
DW50 CNC high performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.
Main Parameter :
| Specification/Model | Unit | DW38NC | Remark |
| Max bending capability | mm | Φ50X2.5 | 1. The Minimum bending diameter based on the pipe diameter.2.The Max bending diameter can according to the customer’s requirement3.The Max length of mandrel can ac-cording to customer’s requirement |
| Max bending radius | mm | R300 | |
| Min bending radius | mm | R50 | |
| Max bending angle | Degree | 190 | |
| Max effective distance of mandrel | mm | 2500 | |
| Control System | NC Control | ||
| Motor power | KW | 11 | |
| Max. Hydraulic Pressure | Mpa | 12 | |
| Hydraulic System Control | Electromagnetic Valve | ||
| Oil Tank Capacity | L | 110 | |
| Weight of Machine | Kg | 3500 |
