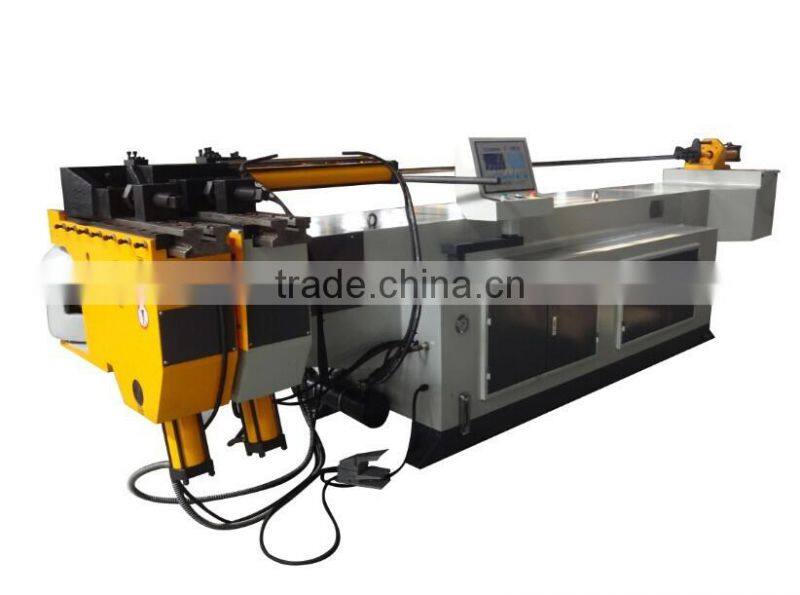

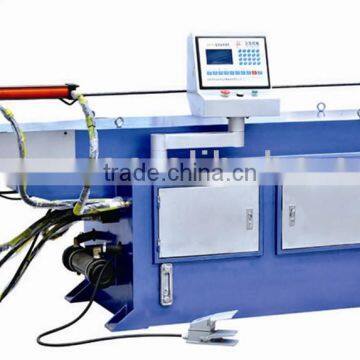

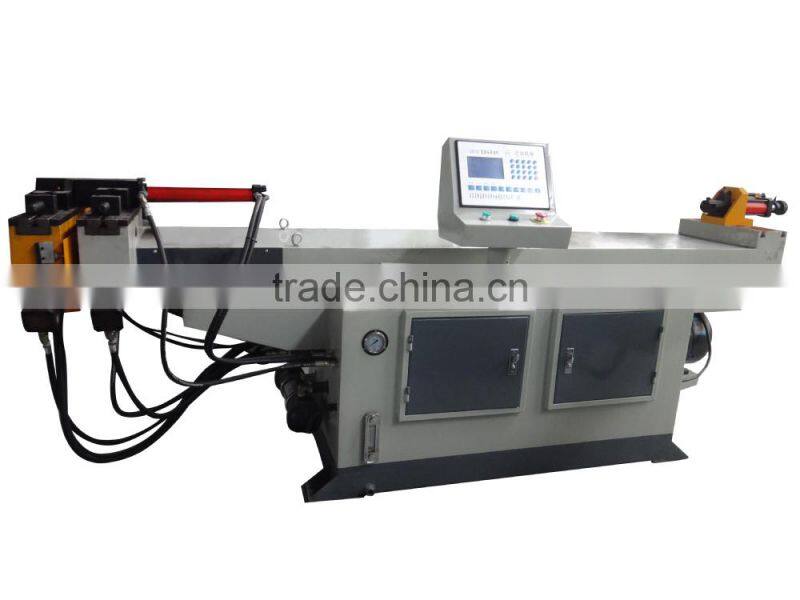

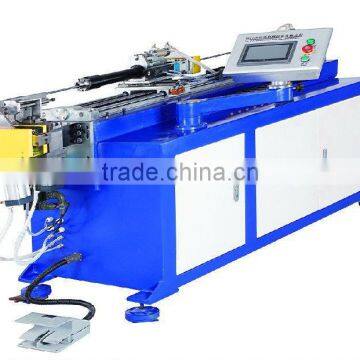

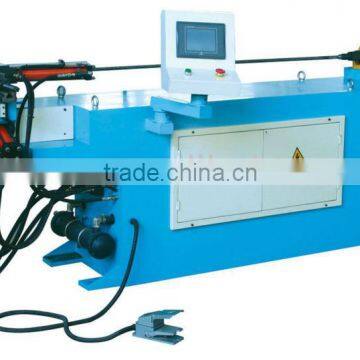

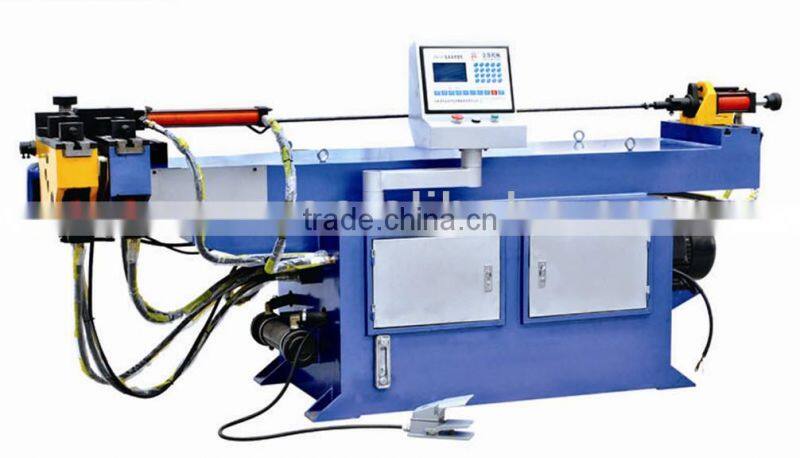

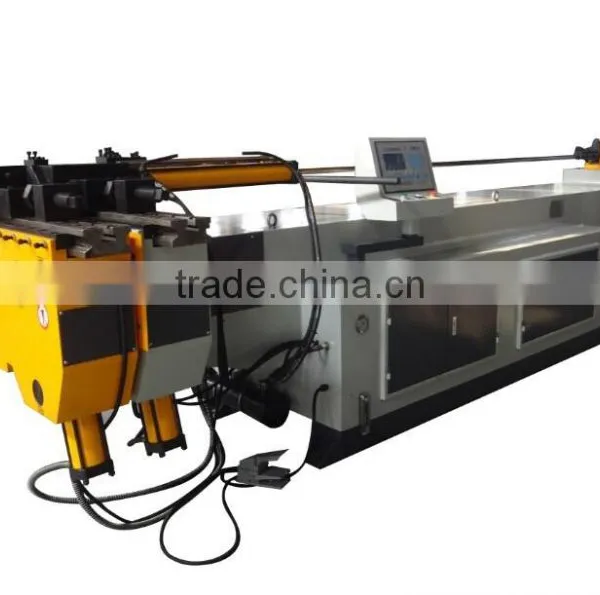

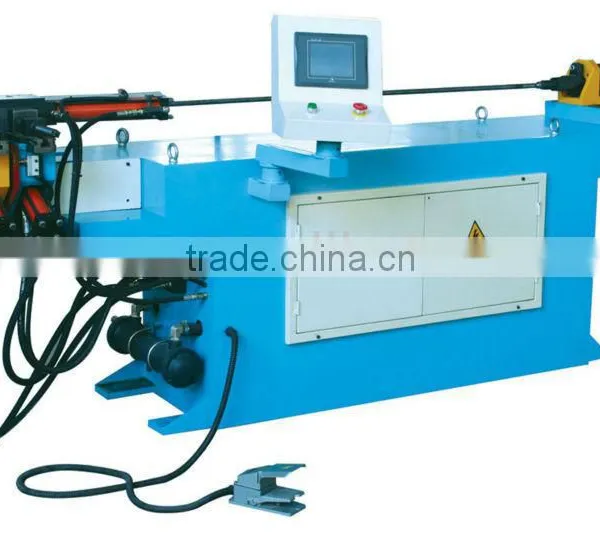

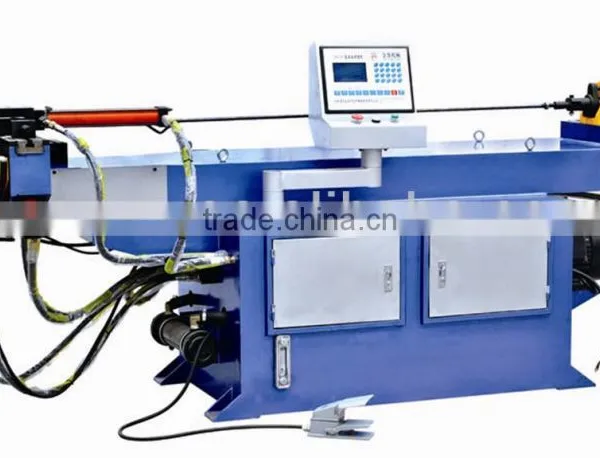

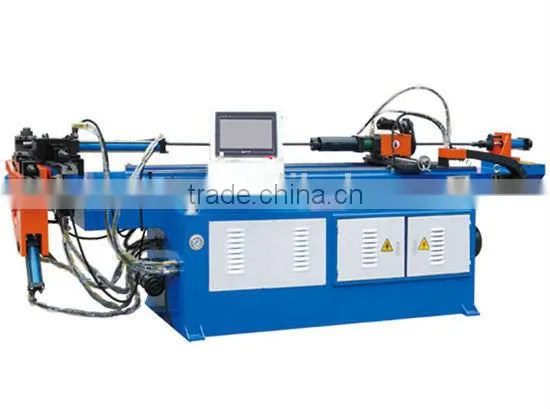

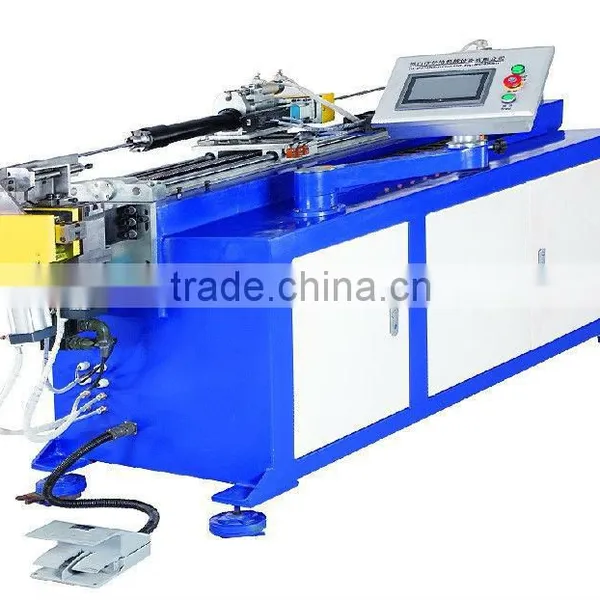

DW-38NC pipe bending, exhaust pipe bender for sale, NC hydraulic pipe bender
Instruction:
Manual,automatic and semi-automatic different function machine.
It has mobile pedal switch,emergency stop function,high safty.
The cooling system make the machine running stable.
Compact bending design and handle provide the biggest bend space.
The fast mould changing device is better for flexible production.
Ingenious design with high elastic structure make the area of intervention fall to the minimum.
Attach various special accessories for you choose.
The panel display the movement situation of machine.
Can set 2 kinds of angle for take turns.
The program is simple and understandable,it can be control without high technical personnel.
DW38NC high performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, furniture and other metal pipes processing.
The Steel Pipe Tube Bending Machine is hydraulic driven; high bend accuracy; The pipe and tube bending machine bend pipes and tubes no wrinkles, no cracks; low noise, easy operation; German technology, favorable price. It can also bend square tubes or pipes,flat bar,U or channel steel,H steel, round bar,angle bar steel, etc.
Fabricated from superior quality raw materials, these benders are extensively used in array of industries. Made in our latest technology equipped production unit by team of dedicated technicians, these benders are known for its specific design, durability and quality performance. Several quality tests are done to ensure world standard quality of these benders.We are amongst the renowned manufacturer, exporter and supplier of a diverse range of Pipe Bending Machine. Our products are precisely fabricated utilizing non-ferrous mild steel, stainless steel materials. We are supported by experienced professionals, who assist us to deliver the entire product range in well defined time frame.
1. Fabricated from finest quality raw material, this range is very durable and features highly compact functions and robust designs.This machine is widely used for bending steel tubes & pipes& any profile. Machine frame can be extended according to customer's requirements.
2. PLC operation system, 10.4" touch screen. Bend data shown clearly; two kinds of operate modes:semi-auto & auto;easy and convenientoperation.

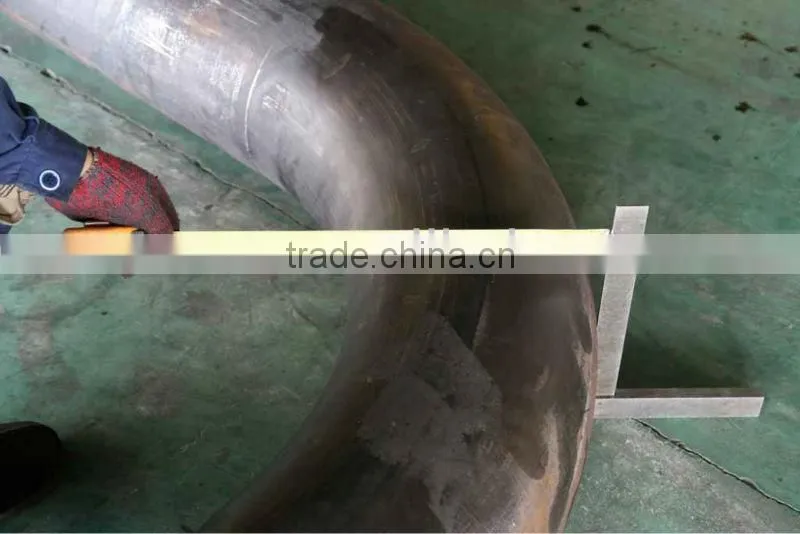

3. High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
4.Heavy duty working function, esp. for thick wall pipes; capable of bending pipes with small bend radius(less than 3D) by using special structure(awarded national patent).
5.Capable of bending pipes,tubes and all kinds of profiles,eg. Angle bar,I beam,H beam, U beam, C beam, flat bar, square pipe, round bar, etc. by changing the bend die.
6.High bend accuracy, no wrinkles,no cracks,low ovality,low thinning rate. All bend accuracy is higher than national accuracy standard.
Specification/Model |
Unit |
DW38NC |
Remark |
Max bending capability |
mm |
Φ38*2 |
1. The Minimum bending diameter based onthe pipe diameter 2.The Max bending diameter can accordingto the customer’s requirement 3.The Max length of mandrel can according to customer’s requirement |
Max bending radius |
mm |
R260 |
|
Min bending radius |
mm |
R15 |
|
Max bending angle |
Degree |
190 |
|
Max effective distance of mandrel |
mm |
1600 |
|
Control System |
|
NC Control |
|
Max elbow bend pipe |
Unit |
16 |
|
Max storable sections |
Unit |
16*16 |
|
Motor power |
KW |
4 |
|
Max. Hydraulic Pressure |
Mpa |
12 |
|
Hydraulic System Control |
|
Electromagnetic Valve |
|
Oil Tank Capacity |
L |
110 |
|
Measurement |
mm |
2600*600*1000 |
|
Weight of Machine |
Kg |
750 |
