Specifications
bending machine for sale1)Adopt numerical control module
2)dialogue type operation
3)program enactment easy

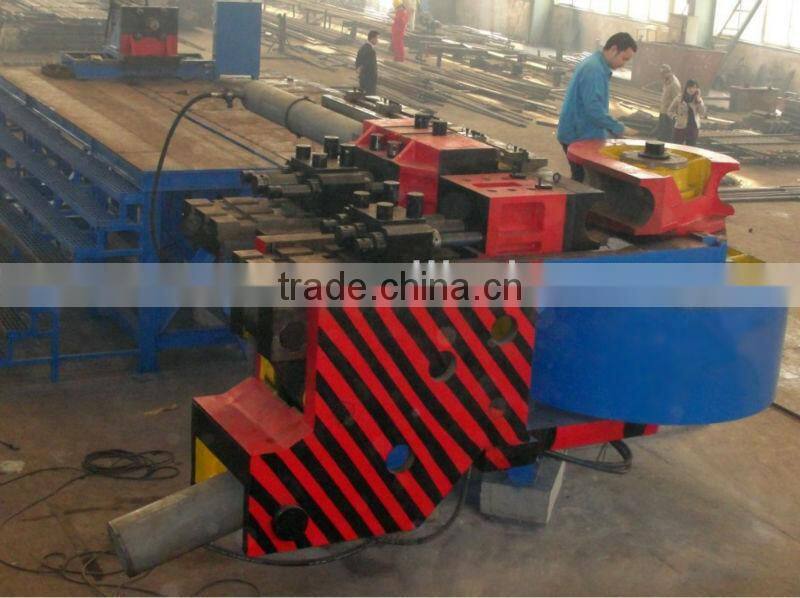

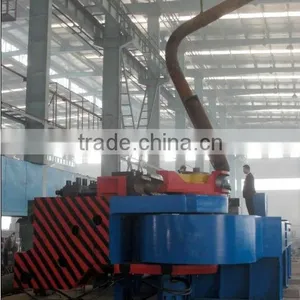

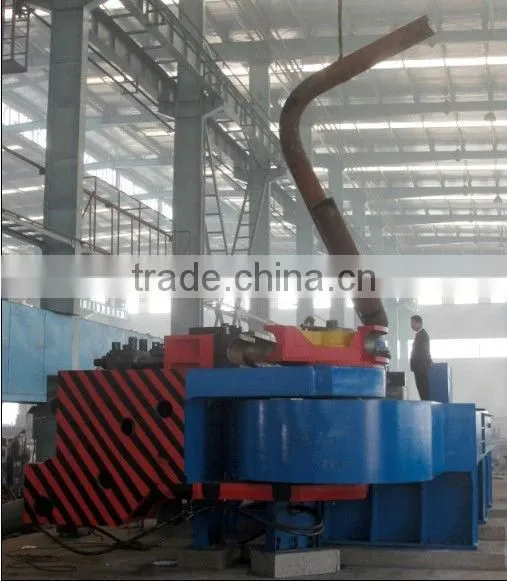

DW460NC hydraulic pipe bending machine
Model |
Unit |
DW460NCB |
Remark |
Maxi. Diameter ×thickness |
mm |
Φ460×30 |
Mini. Bending radius is more than 1.5D of pipe diameter; Maxi. Bending radius and effective wear core length can be set according to the customers requirements. |
Maxi. Bending radius |
mm |
R2000 |
|
Mini. Bending radius |
mm |
R300 |
|
Maxi. Bending angle |
|
190° |
|
Standard wear core length |
mm |
12000 |
|
Control system |
Microcomputer |
||
Maxi. Bender numbers |
pcs |
16 |
|
Parts in store |
pcs |
16×16 |
|
Hydraulic motor power |
kw |
75 |
|
Maxi. System pressure |
mpa |
25 |
|
Hydraulic system control |
Solenoid valve |
||
Contain capacity |
L |
800 |
|
Size |
mm |
≈12000×4500×2500 |
|
Weight |
kg |
≈65000 |
|
Name |
Type |
Original |
Remark |
Display |
Single-chip Microcomputer |
Nanjing |
Ordered |
Control System |
Microcomputer |
Nanjing |
Ordered |
Contactor |
|
French |
Schneider |
Thermal overload |
|
French |
Schneider |
Time Relay |
|
Japan |
OMRON |
Switch power |
Taiwan |
Meanwell |
|
Oil pump |
|
Taiwan |
Yongling |
Relief Valve |
Japan |
YUKEN |
|
Solenoid Valve |
Japan |
YUKEN |
