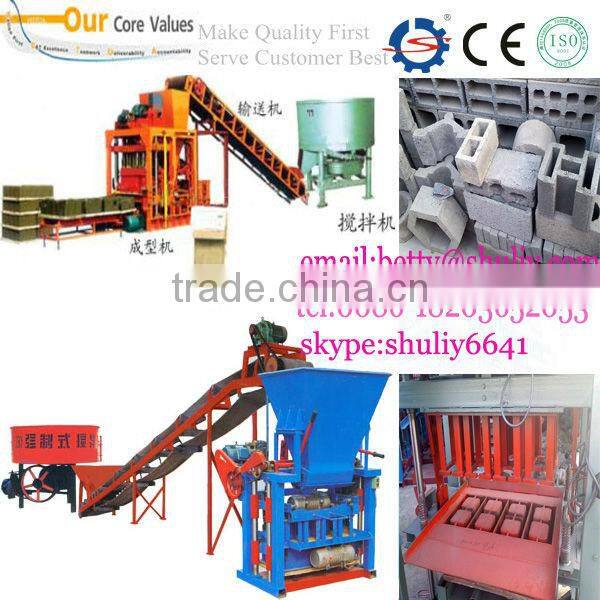

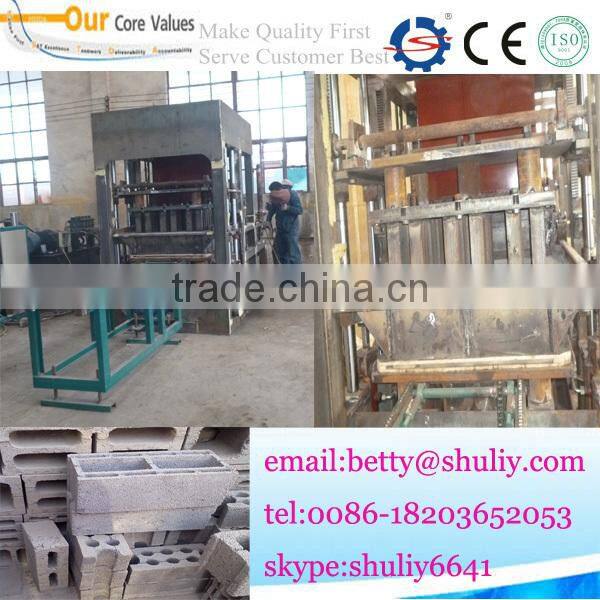

Help CenterManual Concrete Block Making Machine&fly Ash Bricks Machinery&cement Blocks Machinery
Related Products
-
Full Automatic Manual Cement Brick Moulding Machine//0086-18203652053NegotiableMOQ: 1 Set -
Concrete Brick Moulding Machine/concrete Interlocking Making Machine QTY8-15 Machine to Make Concrete Blocks//0086-18203652053NegotiableMOQ: 1 Set
-
Hot Selling Brick Making Machinery/block EquipmentNegotiableMOQ: 1 Set
-
Top Quality! Small Manual Block Making Machinery Price/Brick Making Machine//0086-18203652053NegotiableMOQ: 1 Set
-
Fly Ash Bricks Manufacturing Machine JKB40-35 Brick Moulding Machine//0086-18203652053NegotiableMOQ: 1 Set
Quick Details
Type: |
Hollow Block Making Machine |
Brick Raw Material: |
Concrete |
Processing: |
Brick Production Line |
Method: |
Hydraulic Pressure |
Automatic: |
Yes |
Capacity: |
20sets per month |
Place of Origin: |
Henan China (Mainland) |
Brand Name: |
SL |
Model Number: |
QT5-15brick making machine for sale |
Voltage: |
380v |
Power: |
37.4KW |
Dimension(L*W*H): |
9450*3300*2700MM |
Packaging & Delivery
Packaging Detail: |
wooden case |
Delivery Detail: |
15 days |
Specifications
1.PLC controller
2.anti-wear, aseismatic,anti Moist welding
3.high temperature carburizing heat treatment mold

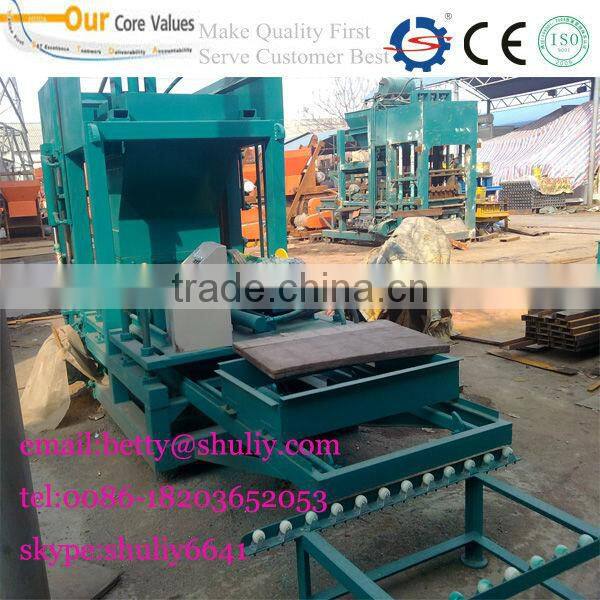

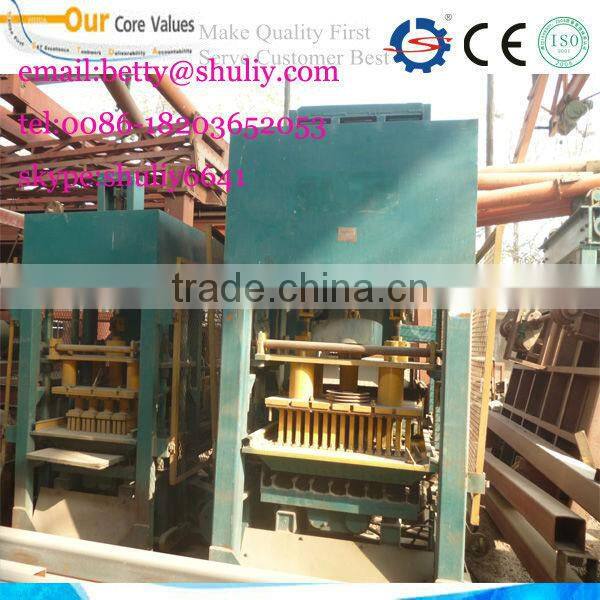

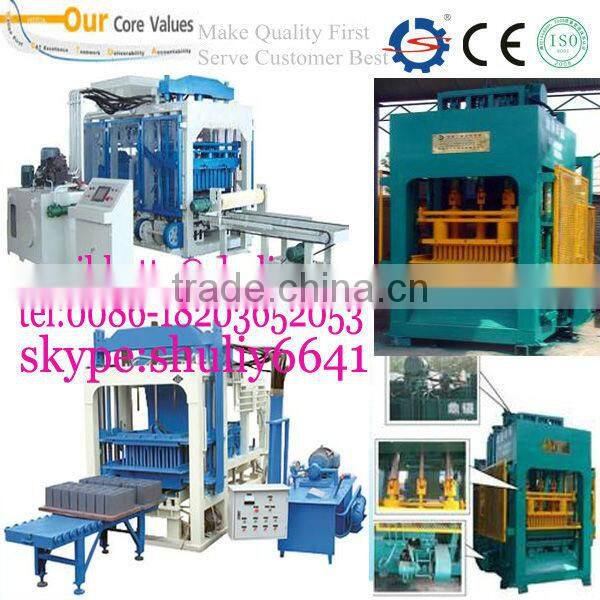

QT5-15/6-15 automatic concrete hollow brick machine
1.Advantages of QTY5-15 /QT6-15hollow brick machine :
Drop material: Semi-enclosed hopper,360-degree revolving,mix raw material uniformity.
Working ways:hydraulic vibration,so bricks form quickly,high strength and good density.
Multifunction:make hollow/solid/paving bricks,curbstone by usingfly ash,cement,sand and industrialwastesLong service life:The skeleton of machine made from superstrong steel and special welding technology

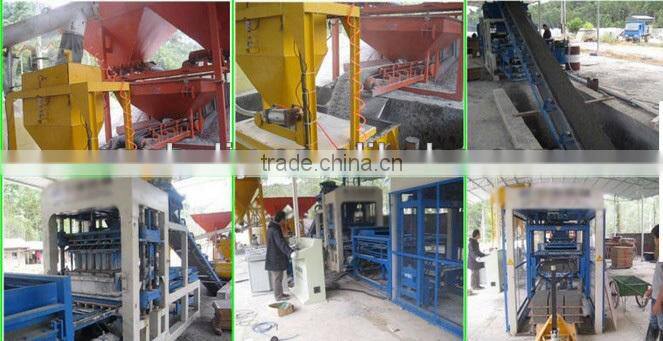

Component of Production line:
Host machine, PLC control unit, Belt conveyor, Automatic stacker,JS500 Mixer,PL1200 Batching machine, Cement silo (50T),Screw conveyor, Cement scale, Water scale, Pallet

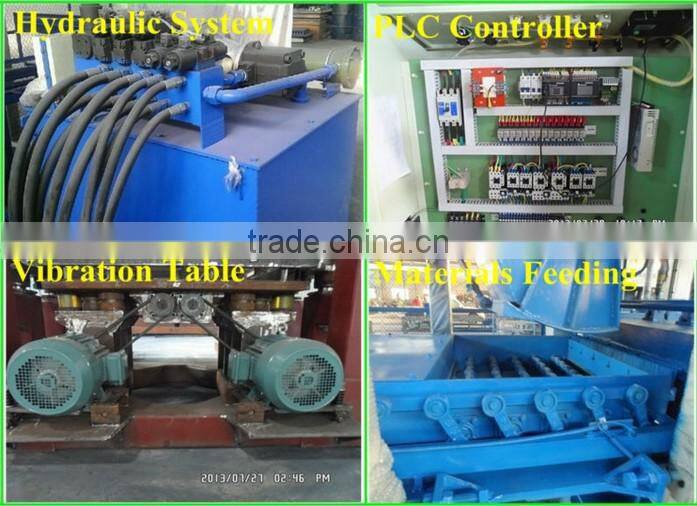

Main component of QT6-15 cement block machine :
1. Recyclematerialfeedingsystem:Economizein material for different or same density products
2. PLC (computer automatic control)
3.Multisource vibration system: For ensure the accuracy, the vibration frequency is adjustable
4. Automatic diagnosis system: Unique system
Specification
Cycle Time |
15-20 Sec |
Vibration Type |
hydraulic vibration |
Total Power |
37.4kw |
Vibration |
68(KN) |
Vibration Frequency |
3800-4500(times/sub) |
Gross Weight |
7500(kg) |
Pallet Size |
850×680×20(mm) |
Machine Size |
9450×3300×2700mm |
Rated Pressure |
31.5(mpa) |
Stacking Machine Power |
2.25kw |

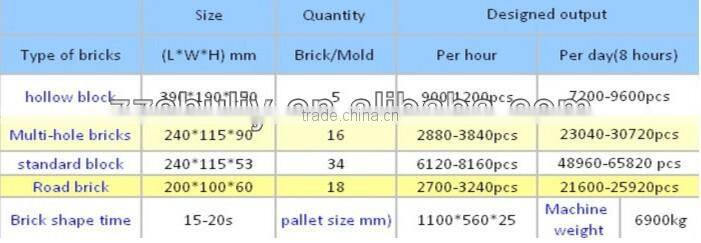

Brick Sizes and capacity for QT6-15 cement block machine:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
Blocks |
390x190x190mm |
6 |
8,640-11520 |
Porous bricks |
240x115x90mm |
15 |
21,600-28,800 |
Interlocking block |
200x100x60mm |
21 |
25,200-30,240 |
Solid bricks |
240x115x53mm |
30 |
47,200-63,600 |

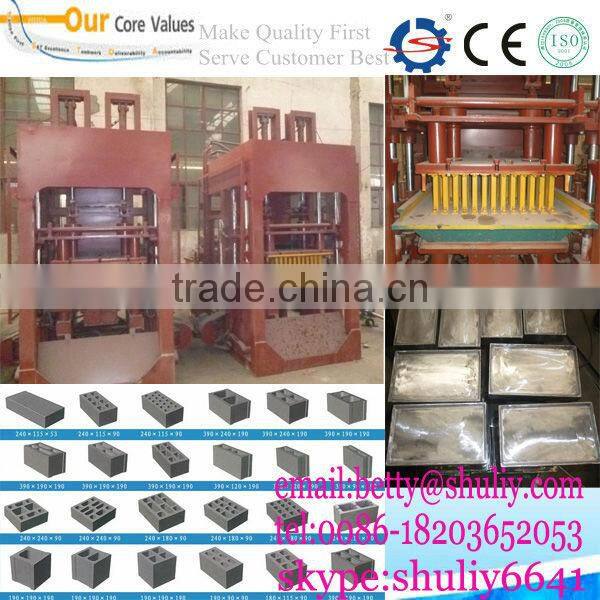

About Brick shaped mold can be produced according to user needs.
Raw material :
