Continuous tunnel microwave meat drying and sterilization machine
- 30 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | ADASEN | Model Number: | JN-30 |
Type: | Other, drying machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Continuous tunnel microwave meat drying and sterilization machine
General Description
1.Products: spices
2.Sterilization capacity: 200~300kg/h
3.Sterilize temperature:adjustable
4.Type of Feeding:continuous
5.Type of Control:control panel
Features of Design
1.Transmission System
a.Speed of Conveying belt is adjustable.
In the transmission system, it applies frequency-converting control of speed, worm gear reducer.
b.The conveyor belt is Teflon Belt,special for microwave.
c.The deviation of belt is adjusted with Hand-movement.
2. Body of the Tunnel
a.The body of the microwave tunnel is made of 304# Stainless Steel. Inside there is one set of humidity extraction system to extract the humidity after heating.
b.To be safe, there is Automatic Power-off device while open the door of the machine.
c.On top there is one set of Heat extraction system to extract the heat energy generated by working of machine.
d.One set of infrared thermometric is installed at the outlet of the tunnel to measure the temperature.
3.Controlling System
a.On the outside panel there are frequency converting speed controller, emergency stop button, Start, Stop buttons etc.
b.All the controlling components will be installed into one controlling box, which is at the exit of the machine.
c.Ordinary button control system.
d.The microwave power can be adjusted by choosing in the display text.
e.Every microwave source is an independent unit.If one is broken, the machine will not be prevented from running.
f.Every magnetron has an overheating protection device.
4.Main Technical Parameters
Power Supply:380V 50HZ three-phase five-wire
Microwave output frequency:2450±50MHz
Microwave input apparent power:≤42KVA
Microwave output power:≥30KW
Microwave power adjustment range:0-30KW(adjustable)
Ambient temperature:-5-40℃
Relative humidity:<=80%,Surrounding environment:no corrosive gas, conductive dust and explosive gas.
Overall dimension(L*W*H):about 10500*1440*1750mm
Transmission speed:0-10 m/min(adjustable)
Height of the inlet and outlet:60 mm
Microwave leak:accord with a country GB10436-89 standards
Equipment safety:accord with GB-5226Electrical safety standard,accord with a country GB16798-1997 Food machinery health security index.

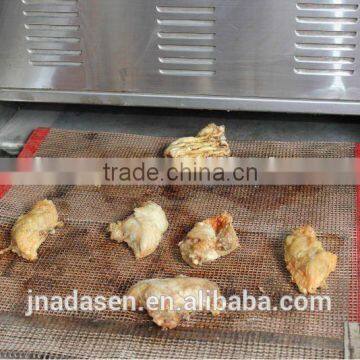

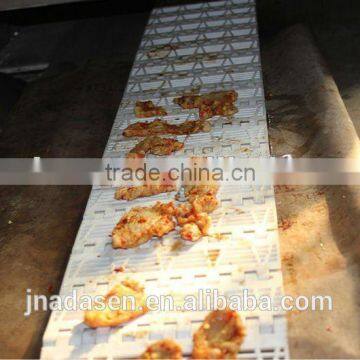

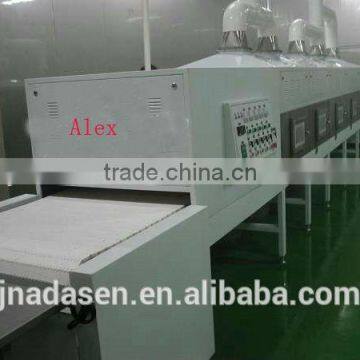

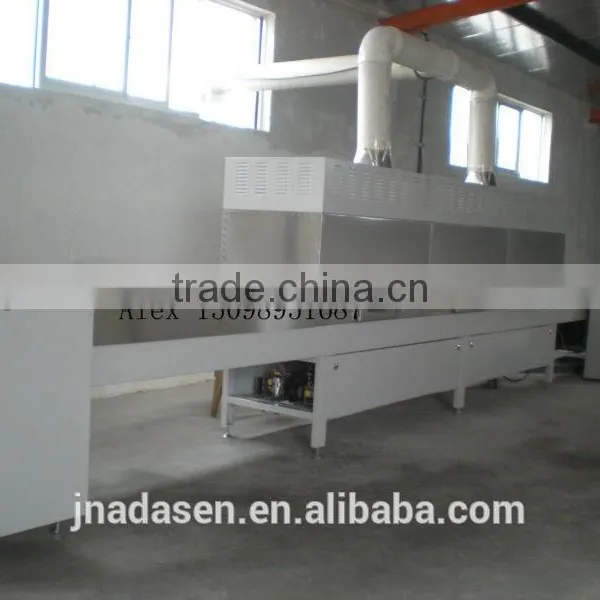

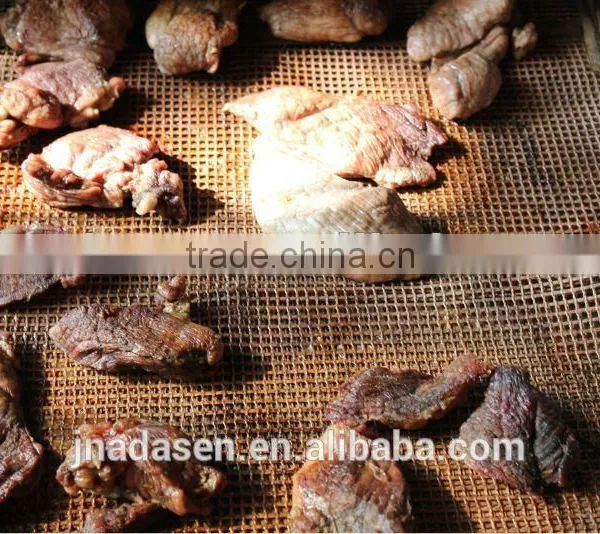

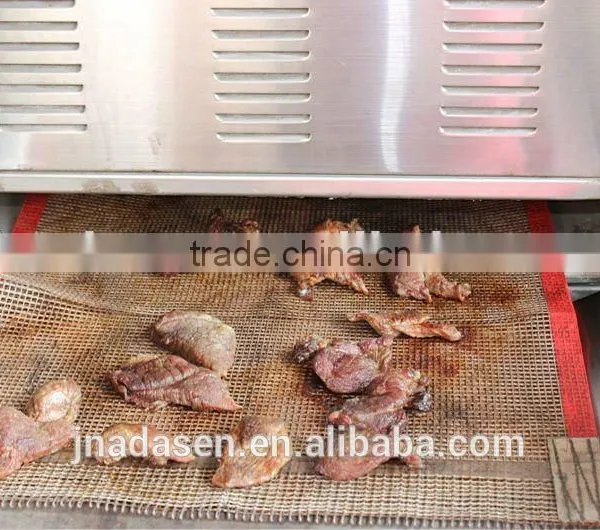

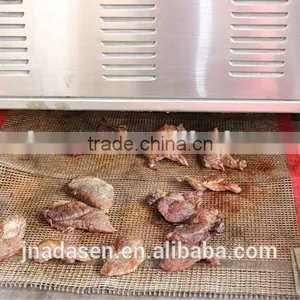

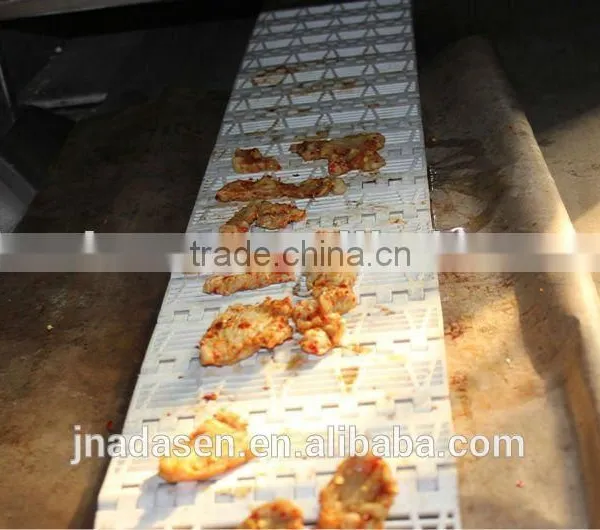

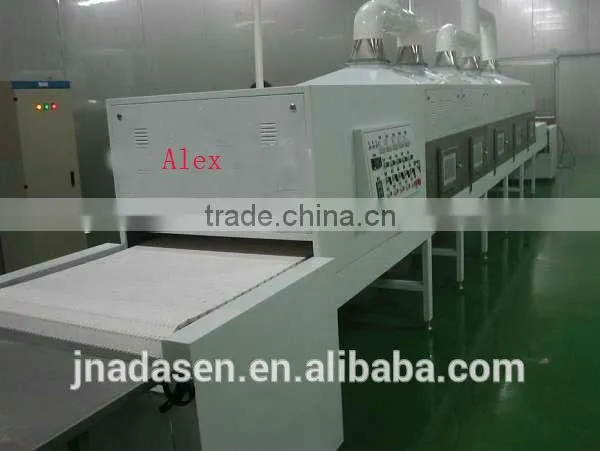

Reference of Picture
Packing and Shipping
1. Delivery Term:FOB/CFR/CIF
2. Delivery time:20 work days after having received payment
3. Package:wooden cases(fully meets with export package requirements)
4. Payment Terms:50% deposit by T/T,balance 50% paid by T/T before shipment.
5.Transportion:By vessel
NOTE:We can specially design the machine according to your production's features.
