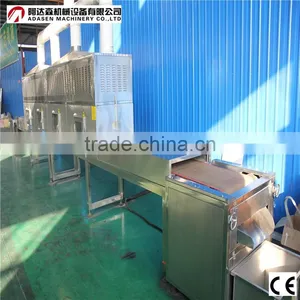

Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer

Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-1
Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-2
Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-3
Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-4
Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-5
Continous Microwave Food Drying Equipment/Vegetable Drying Machine/Dryer photo-6
US$ 9,950 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ADASEN
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name ADASEN
Model Number JN-30
Usage Other, Fruit & Vegetable
Type Microwave
Voltage 380V
Power(W) 30kw
Weight as per model
Dimension(L*W*H) 10700*850*1790mm
Certification CE ISO
Warranty 12month
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Specifications

1.Rapid/symmetrical drying

2.Energy saving/efficient

3.Mildewproofing/sterilization/keeping fresh

4.Adavanced craftwork


Features:


1, Fast heating. Microwave heating is completely different with traditional heating mode. It makes heating medium become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can achieve heating temperature in a very short time.


2,Save energy and efficiency. Because materials contain water absorb microwave easily and fever, so in addition to a small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy.


3, Heating even. No matter how shape of each part of the body, microwave heating all can make the object and evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the endogenous phenomenon focal.


4, Mouldproof, sterilization, fresh. Microwave heating has thermal and biological effect, can sterilize and mould proof in low temperature. Due to heating rapidly, the time is short, can maximum limit save material activity and the vitamin original colour and lustre and nutrition of food.


5, Craft is advanced, control easily. Microwave heating just have the basic conditions of water, electricity, as long as control power, can realize microwave heating or terminate immediately, use microwave equipment can process automation control of heating process and heating process specification.


6, Covers less area, safety and harmless. Because microwave can be controlled in made of metal heating indoor and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and dust pollution; Neither polluting food, also do not pollute the environment
.


Detailed Images
Power supply
380V 50HZ three-phase five-wire
Microwave output frequency
2450±50MHz
Microwave input apparent power
≤35KVA
Microwave output power
≥30KW
Microwave power adjustment range
0-30KW(adjustable)
Temperature
0~200C(adjustable)
Equipment type

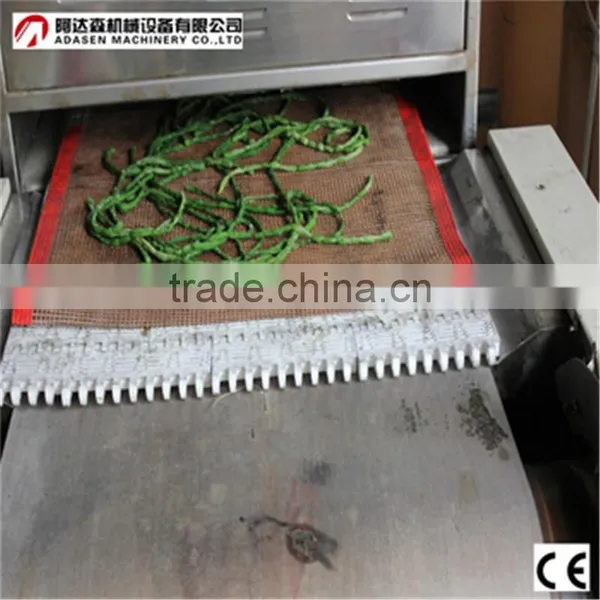

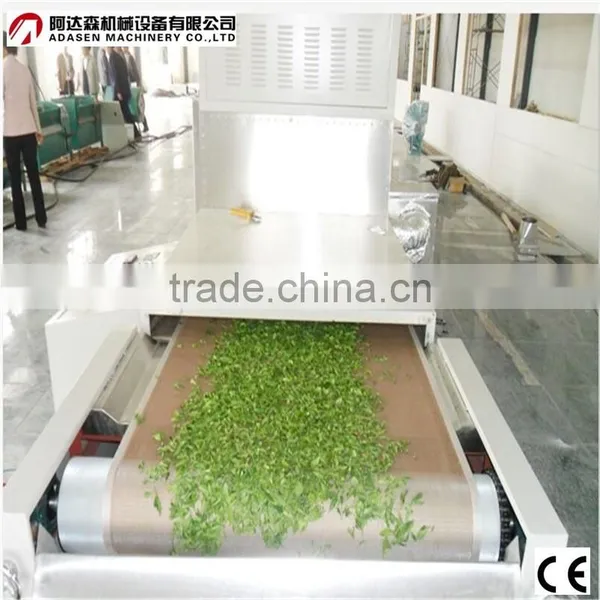

Transmission Teflon conveyor belt
Transmisison speed
0~10m/min(adjustable)
Microwave leakage limit
(mW/cm2):<1
Magnetron
Panasonic, 35sets
Material
stainless steel
Dimension(L*W*H)
10700*850*1790mm



Microwave drying is different from the traditional drying methods, the direction of heat transfer and moisture diffusion in the same direction. Compared with the traditional way of drying, the drying rate is large, energy saving, high efficiency, uniform dry, clean production, the advantages of easy to realize automatic control and improve product quality, and in the dry fields more and more be taken seriously.

Packing & Delivery

1.Package: wooden cases


2.Delivery detail: In general ,within 30 days


3.Transportation: by vessel


4.Delivery port: FOB Qingdao
