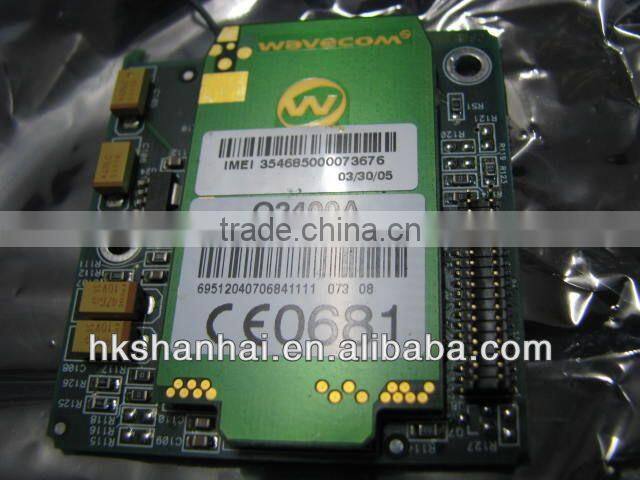

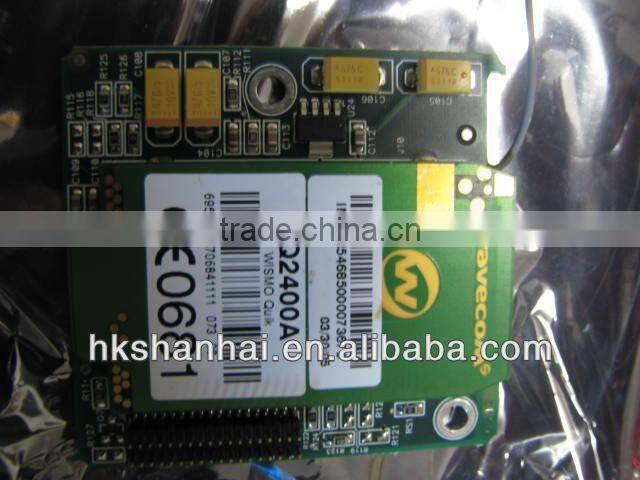

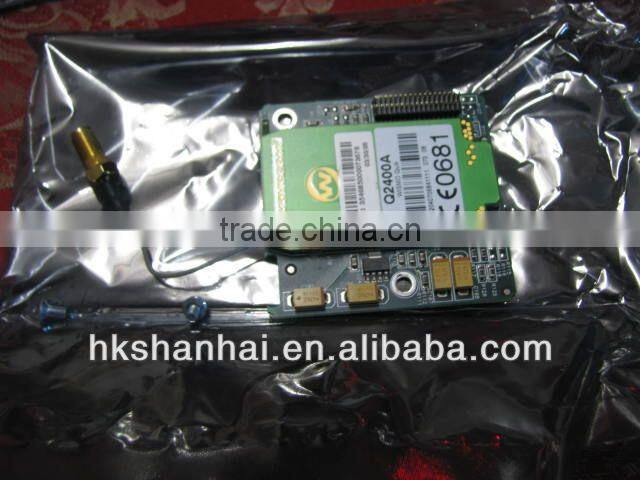

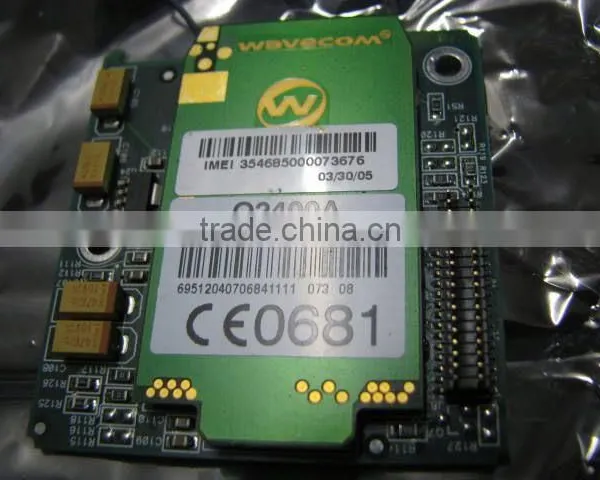

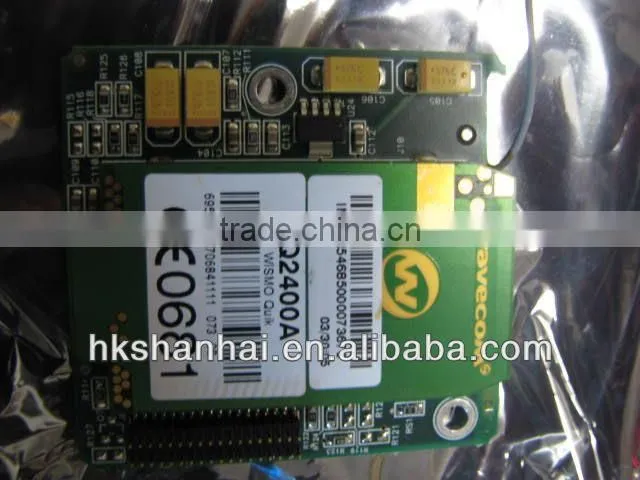

Wavecom Q2400a

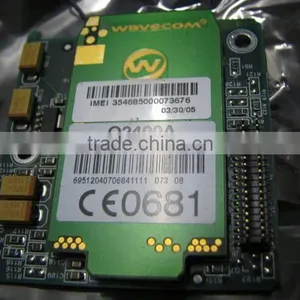

Wavecom Q2400a thumbnail-1
Wavecom Q2400a photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
Q2400A, Q2400A,E-GSM/DCS module
Brand Name:
wavecom, Wavecom
Place of Origin:
France
Contact Supplier Request Quote Chat Now
Shenzhen Shanhai Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number Q2400A, Q2400A,E-GSM/DCS module
Brand Name wavecom, Wavecom
Place of Origin France

Specifications

wavecom q2400a
1.Specialize in Module/Model/Modem
2.FAST DELIVERY
3.ROHS

wavecom q2400a



Product Features

    Dual-band GSM / GPRS MODEM module

    Implementation of the ETSI GSM Phase 2 + standard

    Category 4 (2W _AT_ 900MHz)

    Category 1 (1W _AT_ 1800/1900MHz)

    External 3V/5V SIM

 Power Supply

    3,6 VDC 1A

    Communication 300mA (0% DTX, Pmax)

    3,5 mA when idle

    External dimensions: 58 × 32 × 6 mm

    Weight: 20g (including shield)

 Short Message Service

    Point-to-point MT & MO

    Regional Broadcast Short Message

    Reply call information

    Additional Services

    Call Transfer

    Conference call

    Call barring

    Phonebook

    Fixed number of calls

    Call waiting or hold

    Calling Line Certification

    Billing

    Infrared SIM data transmission

    Echo cancellation

    SIM Toolkit

    SIM lock

    USSD













  basic characteristics

    Call or emergency call

    Maximum speed, promotion maximum speed and half speed

    Dual-tone multi-frequency function (DTMF)

    A5 / 1 & A5 / 5 encryption algorithm

Data Characteristics

    Q2403A (supports class2), of downloads 26.8kbits / s upload

    13.4kbits / s

    Q2406A / B (class10), download 53.6.8kbits / s on

    Pass 26.8kbits / s

    The data link asynchronous transmission and synchronization of up to 14,400 bits / s

    Automatic fax group 3 (class 1 & 2)

    Call and fax conversion

    IrDA 1.2A agreement

    GPRS WAP

Interface

    Single antenna interface (for 900/1800)

    SIM 3V/5V and SIM detection

Real-time clock

    Designed for handheld devices

    I / O interface

    4-bit parallel interface

    Parallel LCD interface

    I2C bus

    10 output lines for 5 × 5 keyboard

    2 microphone input and headphone output

    Buzzer Output

Power Interface

    Data manipulation

    RS232C serial line

    Controlled by AT commands

    Baud rates from 300 to 115,200 bits / s

    Automatic rate from 2,400 to 19,200 bits / s
