Specifications
wavecom fastrack m1306b1,USB/RS232 interface optional
2.Wavecom chipset Q24 plus
3.Band 850/900/1800/1900 MHz

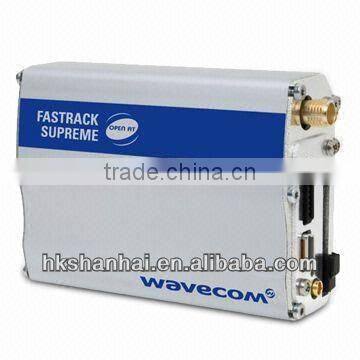

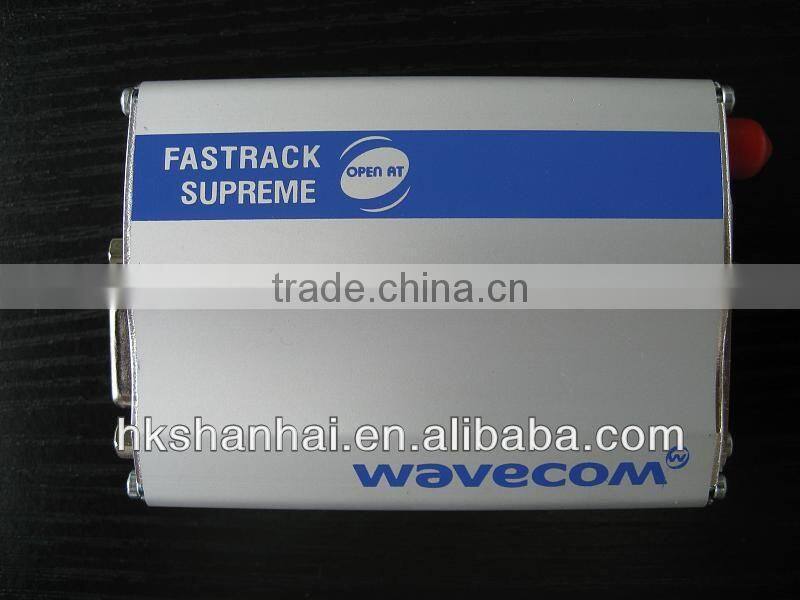

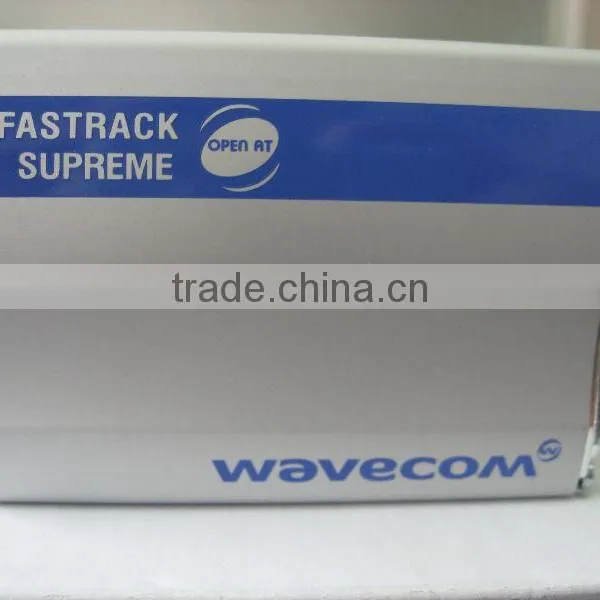

wavecom fastrack m1306b
Our gsm modem are mainly based on the brand new wavecom modules, the model number are as below:
P5186 support sms 900/1800/1900/850MHZ |
P3103 support sms 900/1800MHZ |
Q2303 support sms.900/1800MHZ |
P3203 support sms and mms 900/1800MHZ |
Q2403 support sms and mms.900/1800MHZ |
Q2406 support sms,mms and TCP protocol.900/1800MHZ |
Q24plus support sms,mms,EDGE and TCP/IP.850/900/1800/1900MHZ |
CDMA module Q2358C support sms and mms.800/1900mhz |
CDMA module Q2438F support sms and mms.800/1900mhz |
if you are not sure which one is suitable for you, pls check your country frequency (/) or talk with me directly
Dual-band GSM/GPRS 900/1800MHz ( Please confirm the support dual frequency and interface of your state before you buy.)
Application :
- Voice function call emergency telephone
Voice Codec: full-speed, full-speed and semi-enhanced rate (FR / EFR / HR)
DTMF functions (DTMF)
- Data / fax function Non-synchronous data circuit Transparent and non-transparent to the highest standards 14400 bits/s
The third category automatically fax (Class1 and Class2)
MNP2, V42bis
- Short message service text and PDU peer-to-peer (MT / MO) district Broadcast
Hardware features:
Product performance: |
Dual-band GSM modem (EGSM900/1800MHz or EGSM900/1900MHz), applied to the data, fax, voice and messaging applications, has been certified by all of its design and development of the ETSI GSM Phase2 + standard (General Telephone) |
Output Power: |
Class4(2W@900MHz) |
Input voltage: |
5V-32V |
Input current: |
5mA standby, 140 mA @ 12V calls in the state GSM900MHz |
Temperature Range: |
-20 °C - +55 °C working state |
Product Size: |
98×54×25mm |
Product Weight: |
130g |
Basic features :
RS232 /USB optional
AT command used for the remote control (GSM07.07 and 07.05)
Link bit rate from 300 to 115,200 bits / s
Automatic bit rate (300 to 38,400 bits / s)
Through micro - FIT4 Plug power connector

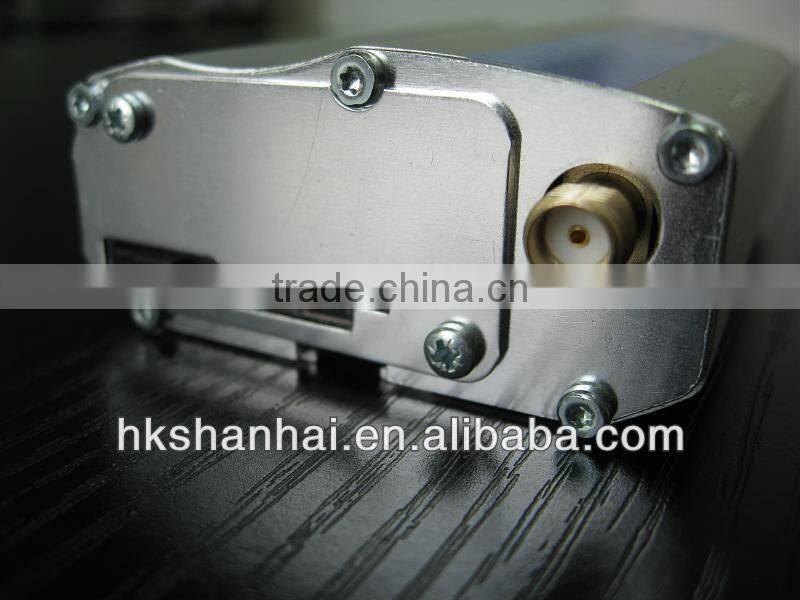

SMA Antenna Interface
Down the SIM card memory
Dual-band GSM external modem
Small size and aluminum shell shock
Install and us, connect Internet instantly
Has been through all the technical standards certification
Voice, messaging, fax and data transmission of GSM Phase2 +
Designed for a specific application of the AT command control system
Support DUAL SIM CARD(OPTION)
Supported Operating Systems:
Windows 7/ Windows Vista/ Windows XP/ Windows Server 2003/ Windows 2000/
Windows 98SE/ CE/Linux 2.40/ MAC 9.8X

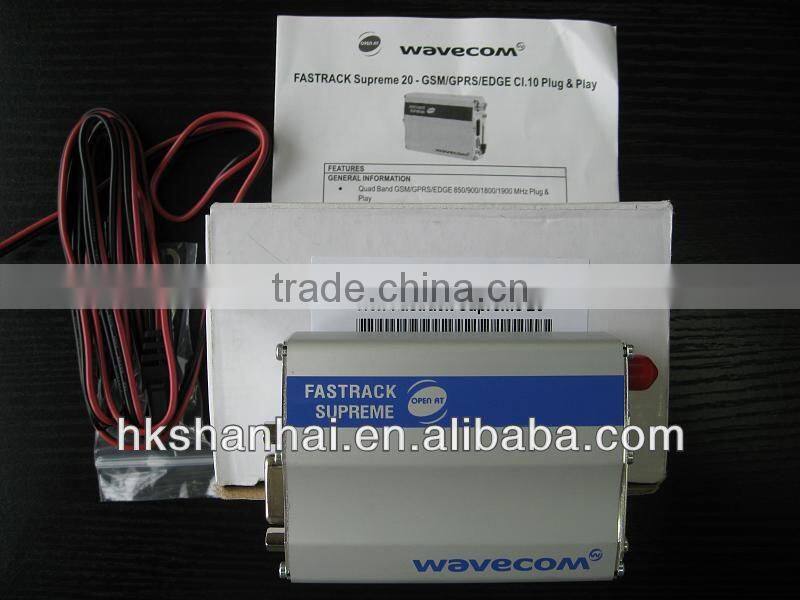

Packing List
-Modem x1(USB)
-AntennaX1
-Cable X1
-CD driverX1
-Modem x1(RS232)
- Power Supplyx1
-AntennaX1

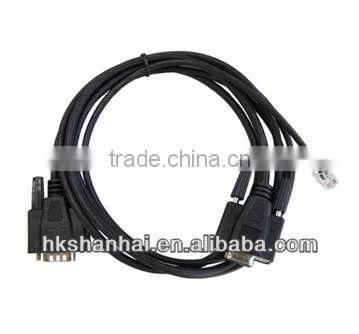

-RS232 Cable X1
-CD driverX1
Picture :
