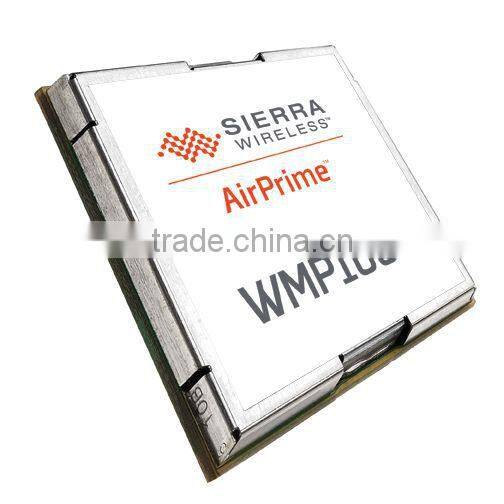

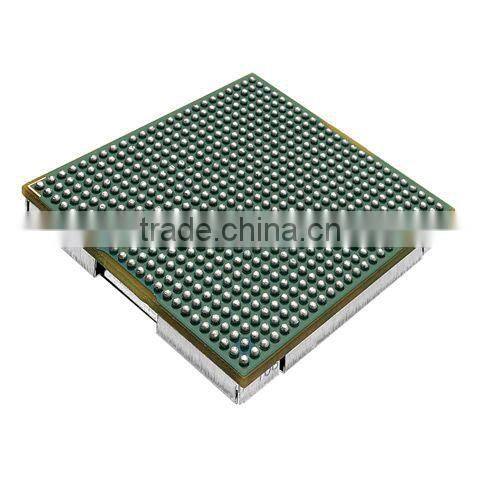

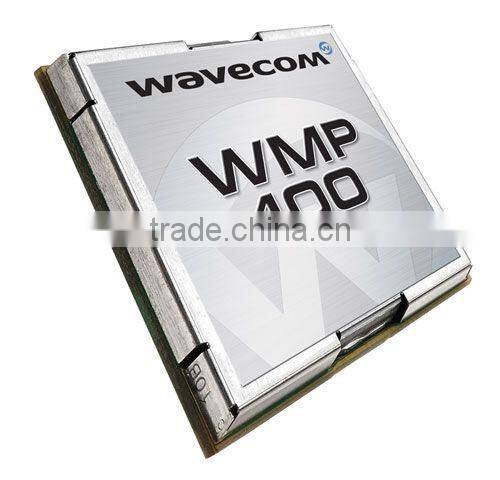

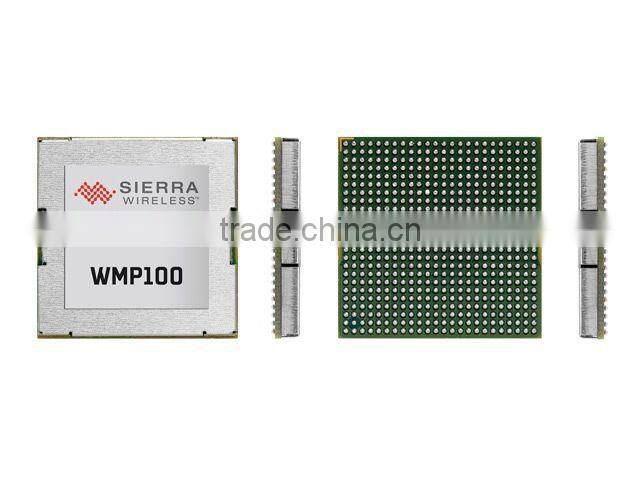

WMP100 Wavecom Module
- shenzhen
- Credit Card
You May Like
Product Details
| Model Number | WMP100, WMP100 | Type | Logic ICs | |
| Brand Name | Sierra Wireless, WAVECOM | Place of Origin | France |
Product Description
Specifications
1.Quad-band global GSM/GPRS2.Programmable
3.Automated assembly
4.Compact size, only 25 x 25 x 3mm
5.Fully automated

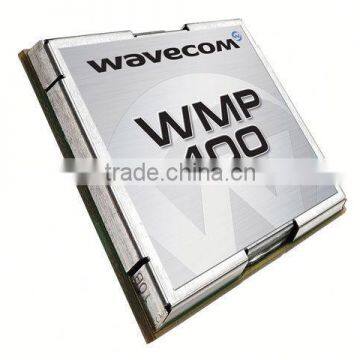

WMP100 Wavecom Module
Key features:
- Quad-band global GSM/GPRS connectivity on the 800, 900, 1800 and 1900 MHz frequency bands
- Programmable
- Automated assembly
- Compact size, only 25 x 25 x 3mm
Key benefits:
- Full pinout and software compatibility with other WMP Series intelligent embedded modules
- Improved time to market
- Fully automated, high volume production
Air Interface | GSM |
Frequency Bands | 850/900/1800/1900 MHz |
Approvals | R&TTE, CE, GCF, FCC, PTCRB, China RTE |
Alarm Power | 16uA |
Standby and Idle Power | 2.5mA |
GSM GPRS Max Power | 400mA |
CPU Processor Performance | ARM946/DSP |
CPU Core Frequency Performance | 26MHz |
CPU User MIPS Available Performance | 10 MIPS |
CPU IO Voltage Performance | 1.9V-2.8V |
CPU Analog Audio Performance | 2x speaker out, 2x micro in |
Codec | HR,FR, EFR, AMR |
Echo Cancellation and Noise Reduction | Yes (low) |
DTMF | Yes |
UART | 2 |
USB | Device 2.0 (full speed, low speed) |
SPI | 1 |
ADC | 2 |
RTC | Yes (external crystal) |
Interrupts Pins | 2 |
Flash LED Output | 1 |
PWM Buzzer | 1 |
Keyboard Interface | 5x5 (multiplexed) |
SIM Interface | 1.8V/3V |
Antenna Diversity | No |
Embedded SIM | No |
Operating Systems | Linux |
Device Management | No |
Drivers | Linux |
Device Dimensions | 25x25x3mm |
Operational Temperature | -30 to +70 |
