Specifications
wavecom q2406b1. Part Number: Q2406A module
2. Double frequency
3. New and original
wavecom q2406b
Model |
Q2406B module |
Frequency |
Dual-Band 900/1800MHz |
| Class | Compliant to GSM phase 2 |
| Ouput power | Class4 2W for EGSM900 Class2 1W for GSM1800 |
| AT commands |
Control via AT commands |
SIM application tool kit |
Yes |
| Supply voltage range | 3.1 to 4.5VDC |
| Temperature range | -20 to +55 (operational functionality) |
| Demensions | 58.3x 32.2x 3.9mm |
| Weight | 17g |
| Voice | noise suppression and echo cancellation |
SMS /data/ Interfaces |
SMS: Text and PDU mode, Point to point (MO/MT), Cell broadcast Interfaces: RF connector, 60 pin system connector, |
| Accessories |
GSM/GPRS antennas 60 pin system connector SIM card holder U.FL to SMA RF cable |
Product Description

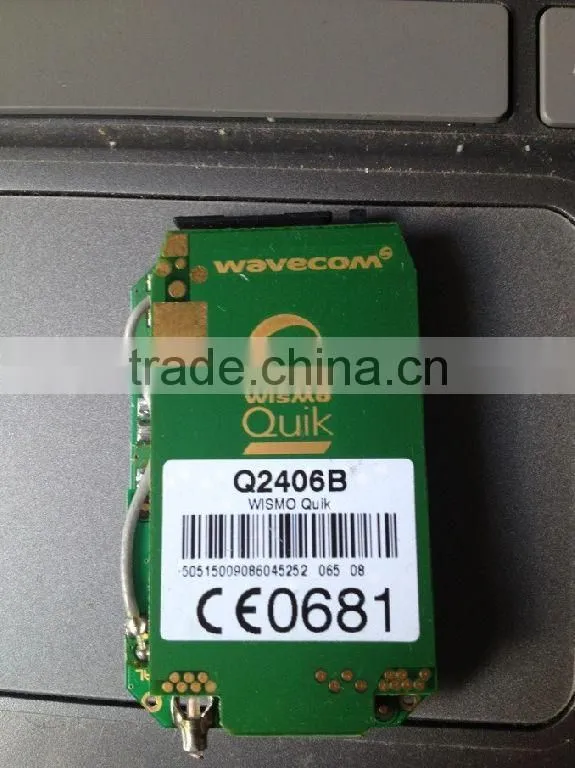

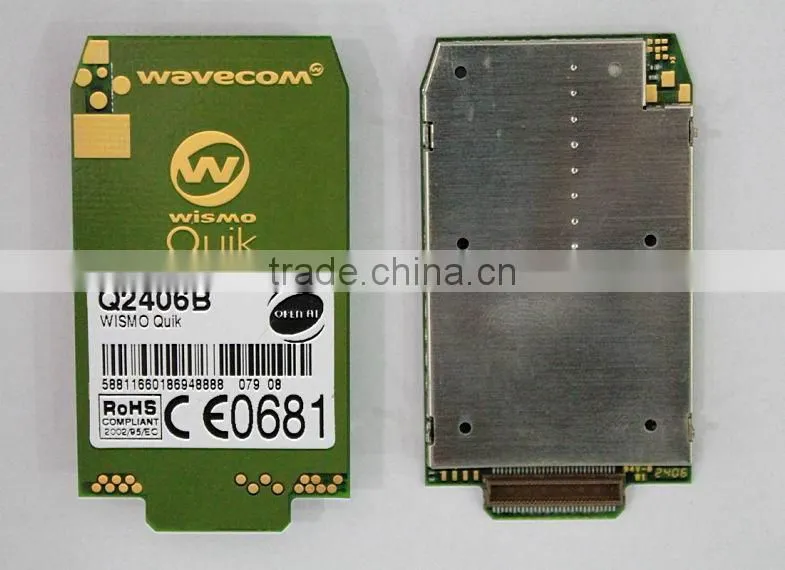

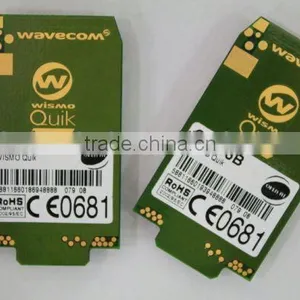

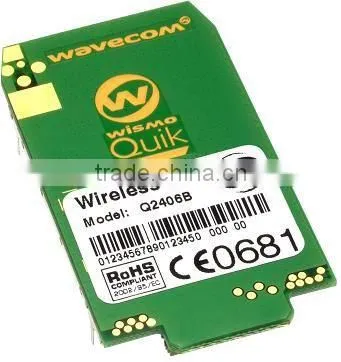

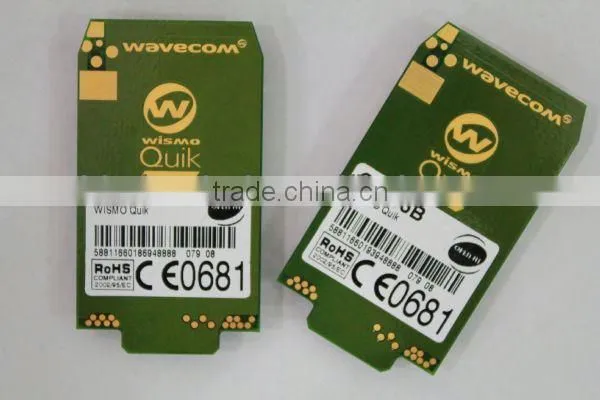

Wavecom Q2406B GSM communication module
Product characteristic
Double frequency GSM/GPRS MODEM module
Carries out ETSI GSM the Phase 2+ standard
Class 4 (2W @ 900MHz)
Class 1 (1W @ 1800/1900MHz);
Exterior 3V/5V SIM
(supports class10), downloads 53.6. Kbits/s, on passes on 26.8kbits/s
The data link asynchronous transmission and synchronization may reach 14, , 400 bits/s
Automatic facsimile group3 (class 1&2)
Telephone conversation and facsimile transformation
IrDA 1.2A agreement
GPRS WAP
Power supply
3, 6VDC 1A
In correspondence average 300mA (0%DTX, Pmax)
When free time 3.5mA
Outside measurement: 58*32*6mm
Weight: 20g (including shield)
SMS service
Point-to-point MT&MO
SMS cell broadcast
Reply call information
Attachment service
Call forwarding
Multi-party MPTY
The call limits
Telephone directory
Fixed number call
The call waits for or the maintenance
Call line authentication
Records the expense
Infrared SIM data transmission
Echo cancellation
SIM tool bag
SIM lock
USSD
Basic characteristic
Telephone conversation or emergency call
Maximum speed,: Promotion maximum speed and half speed rate
Double sound multi- frequencies function (DTMF)
A5/1&A5/5 encryption algorithm
Data characteristic
Connection
Sole antenna connection (for 900/1800)
SIM 3V/5V and SIM examination
Real-time clock
In order to grasp the equipment design
I/O connection
4 parallel connection
Parallel LCD connection
I2C bus
10 outputs lines for 5*5 keyboard
2 microphones inputs and 2 earphones output
The buzzer outputs
Power source connection
For data manipulation
RS232C string mouth line
Through AT command control
Baud rate from 300 to 115, 200 bits/s
Automatic speed from 2, , 400 to 19, , 200 bits/s
