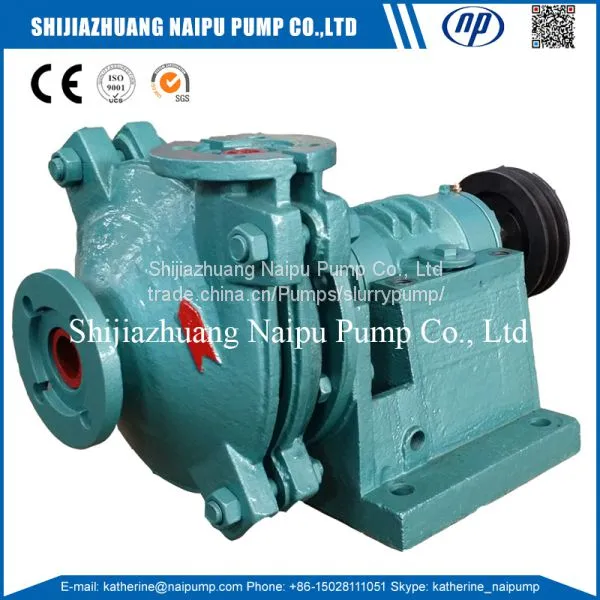

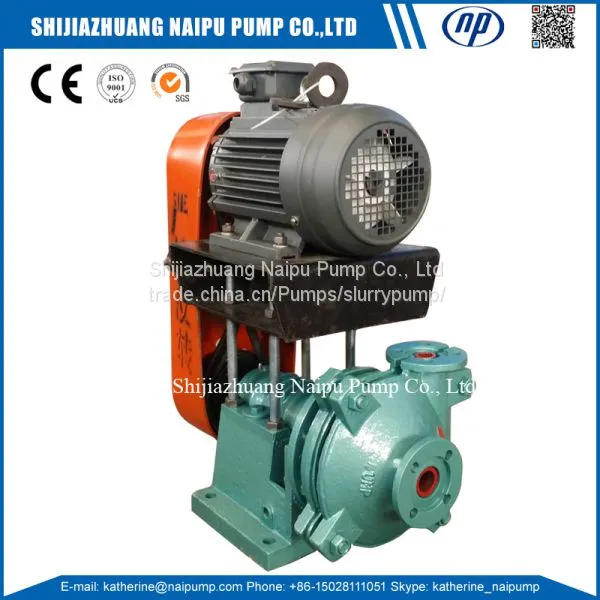

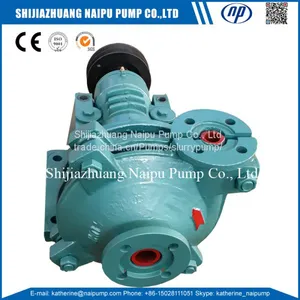

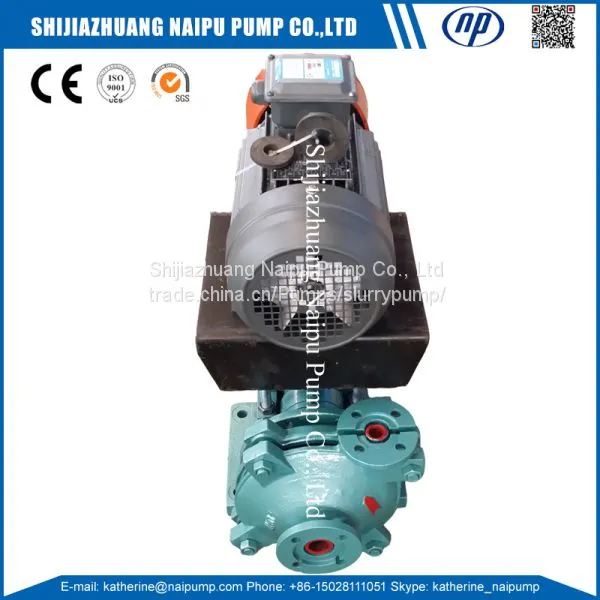

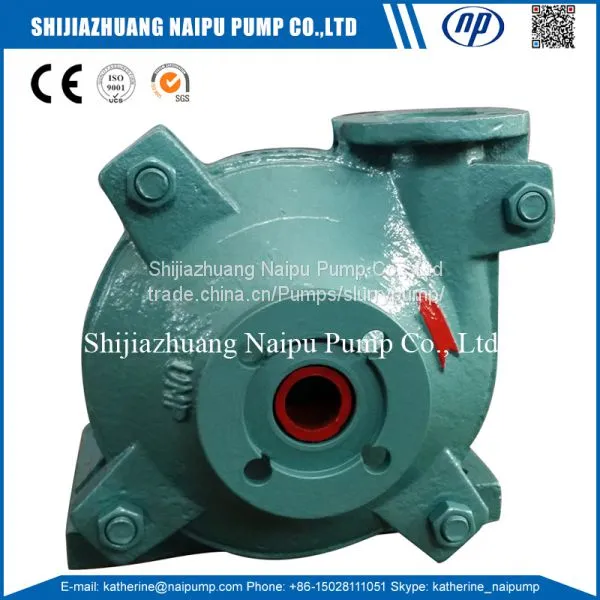

20AL Low Abrasive Cantilever Centrifugal Cooper Slurry Pump
L(R) slurry pumps are those of cantilever, horizontal and centrifugal ones, which are widely used to transport corrosive/ abrasive and high concentration slurry in many industries.
| Design | Continuous pumping of highly abrasive, high density slurries with minimal maintenace requirements and can be applied Multi-staged in series. |
| Outlet instalation | The positions of the pump outlet can be positioned at an interval of 45°according to different requirements. |
| Wet end parts | Both metal or rubber liners and impellers, or a combination of both, are interchangeable within the same pump to facilitate use. |
| Seals | AH cantilever, horizontal and centrifugal pump shafts can be sealed by packing seals or centrifugal type seals. |
| Maintenace | A removable cartridge type grease lubricated bearing assembly can be replaced with the pump base in-situ. |
| Special materail | Polyurethane, stainless steel, Hastelloy 276-C, ceramic and various hard wearing alloys are available on request. |
Pump performance parameters
Type |
Max. Power Kw |
Clear Water Performance |
Impeller |
Application
|
|||||
|
Capacity m³/hr |
Head/m |
Speed/rpm |
Efficiency % |
NPSH m |
Nos of Vane |
Diameter mm |
|||
20A-L |
7.5 |
2.34-10.8 |
6-37 |
1400-3000 |
30 |
3.5-8 |
4 |
152.4 |
-Ball mill discharge |
50B-L |
15 |
16.2-76 |
9-44 |
1400-2800 |
55 |
3.5-8 |
5 |
190 |
-Coarse tailings |
75C-L |
30 |
18-151 |
4-45 |
900-2400 |
57 |
3-6 |
4 |
229 |
-Rod mill discharge |
100D-L |
60 |
50-252 |
7-46 |
800-1800 |
60 |
2-3.5 |
4 |
305 |
-Coal washing |
150E-L |
120 |
115-486 |
12-51.5 |
800-1500 |
65 |
2-6 |
4 |
381 |
-Wet crushers |
200E-L |
120 |
234-910 |
9.5-40 |
600-1100 |
64 |
3-6 |
4 |
457 |
-Phosphate matrix |
250F-L |
120 |
396-1425 |
8-30 |
500-800 |
77 |
2-10 |
5 |
550 |
-Minerals concentrate |
300S-L |
560 |
468-2538 |
8-60 |
400-950 |
79 |
2-10 |
5 |
653 |
-Lime grinding |
350S-L |
560 |
650-2800 |
10-59 |
400-840 |
81 |
3-10 |
5 |
736 |
-FGD waste water |
400ST-L |
560 |
720-3312 |
7-51 |
300-700 |
80 |
2-10 |
5 |
825 |
-Flotation |
450ST-L |
560 |
1008-4356 |
9-48 |
300-600 |
80 |
2-9 |
5 |
933 |
-Process chemical |
550TU-L |
1200 |
1980-7900 |
10-50 |
250-475 |
86 |
4-10 |
5 |
1213 |
-Pulp and paper |
20A-LR |
7.5 |
2.16-9 |
7-32 |
1600-3000 |
30 |
3 |
152.4 |
-Ni acid slurry |
|
50B-LR |
15 |
12.6-60 |
6-38 |
1200-2600 |
48 |
3 |
190 |
-Coarse sand |
|
75C-LR |
30 |
22-144 |
9-43 |
1000-2200 |
60 |
3-5 |
4 |
229 |
-Heavy media |
100D-LR |
60 |
61-252 |
17-70 |
800-1600 |
65 |
2-5 |
6 |
305 |
-Bottom/fly ash |
150E-LR |
120 |
137-486 |
12-51.5 |
800-1300 |
65 |
2.5-5.5 |
5 |
381 |
-Oil sands |
200E-LR |
120 |
216-990 |
9.5-40 |
500-1100 |
74 |
5 |
457 |
-Mineral sands |
|
250F-LR |
260 |
324-1314 |
8-30 |
500-800 |
70 |
5-10 |
5 |
550 |
-Fine tailings |
300S-LR |
560 |
432-1900 |
7-41 |
400-800 |
81 |
3-8 |
5 |
653 |
-Phosphoric acid |
350S-LR |
560 |
720-2844 |
10-41 |
400-700 |
86 |
3-7 |
5 |
736 |
-Coal |
400ST-LR |
560 |
756-3312 |
7-37.5 |
300-600 |
85 |
2-8 |
5 |
825 |
|
450ST-LR |
560 |
1080-4356 |
9-40 |
300-550 |
87 |
3-10 |
5 |
933 |
|
650U-LR |
2000 |
2520-9108 |
10-39 |
200-350 |
86 |
2-8 |
5 |
1370 |
|
750UV-LR |
2000 |
3240-13860 |
8-41 |
150-300 |
86 |
2-8 |
5 |
1643 |
|
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
| 1 | AH(R)/ZJ(R) series Metal/ Rubber Lined Horizontal Slurry Pump |
| 2 | M(R) series Medium Duty Slurry Pump |
| 3 | L(R)/ ZJD(R) series Low Abrasive Slurry Pump |
| 4 | HH/ ZJH series High Head Slurry Pump |
| 5 | SH series High Head Slurry Pump |
| 6 | G series Sand and Gravel Pump |
| 7 | WS(G) series Sand Dredging Pump |
| 8 | ZJW/ ZJW series Filter Press Feed Pump |
| 9 | SP(R)/ZJL(R) series Vertical Slurry Pump |
| 10 | AF(R)/ZJF(R) series Vertical Froth Pump |
| 11 | ZJQ series Submersible Sand Slurry Pump |
| 12 | WQ series Submersible Sewage Pump |
| 13 | TL(R) series Desulphurization Slurry Pump |
| 14 | ZGB series Heavy Slurry Pump |
| 15 | OEM series Slurry Pump |
| 16 | All Pump Spare Parts |
