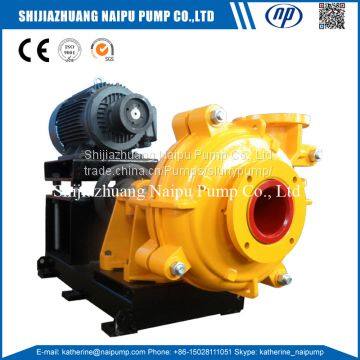

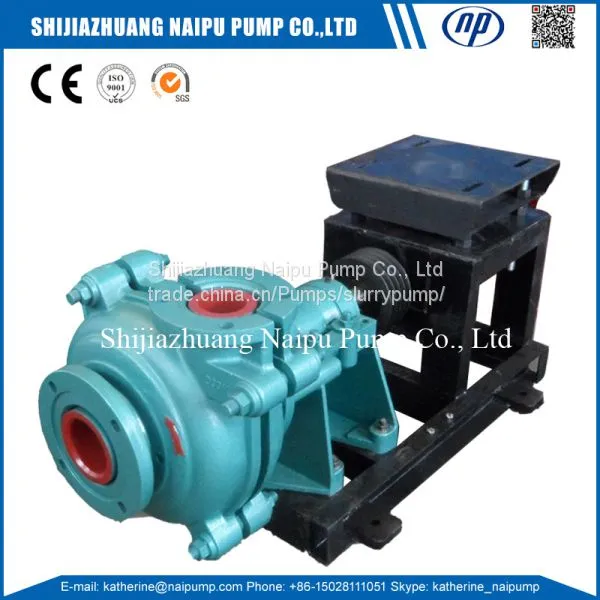

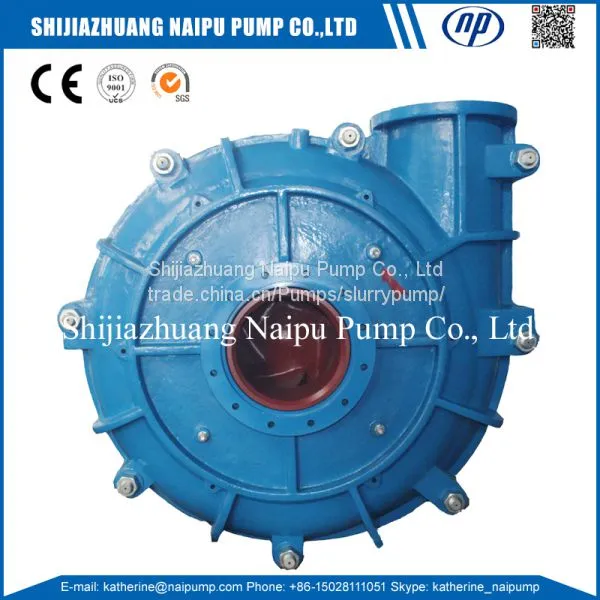

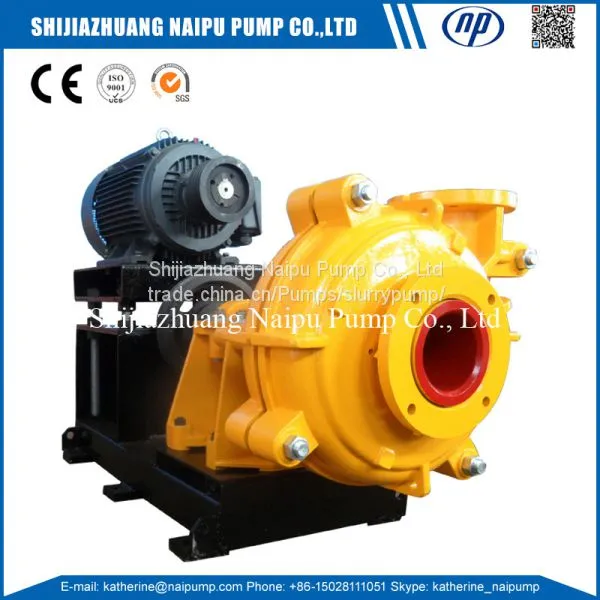

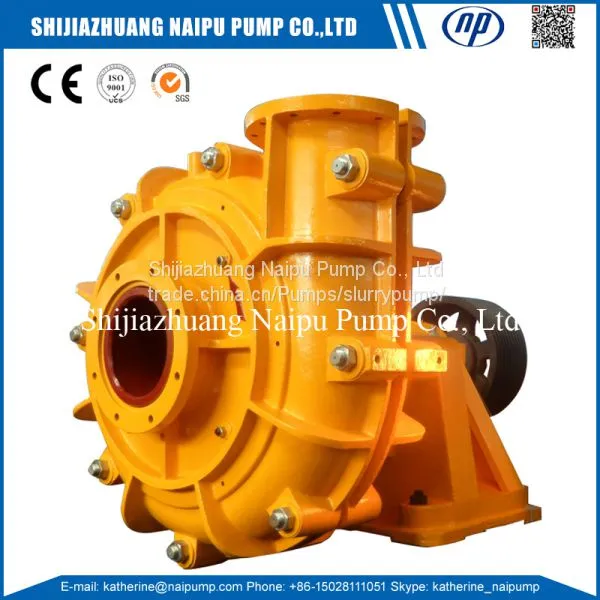

AH Metal Liner Mining Centrifugal Slurry Pump
US$ 700 - 18000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NP
Place of Origin:
China
Model Number:
AH
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang,Tianjin
Delivery Detail:
15 days
Related Products
-
Shijiazhuang Naipu Machine 3/2 Type Slurry PumpsUS$ 1400 - 4200MOQ: 1 Set -
4/3 AH Horizontal Mining Centrifugal PumpUS$ 1600 - 4200MOQ: 1 Set
-
20AL Low Abrasive Cantilever Centrifugal Cooper Slurry PumpUS$ 790 - 960MOQ: 1 Set
-
SP Vertical Type Sump Pump for Delivering AbrasiveUS$ 1400 - 18000MOQ: 1 Set
-
150SV-SPR Vertical Centrifugal PumpUS$ 1400 - 18000MOQ: 1 Set
Brand Name
NP
Place of Origin
China
Model Number
AH
Application
Sewage
Fuel
Diesel
Power
Electric
Usage
Water
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure
AH metal liner mining centrifugal slurry pump
AH(R) slurry pumps are those of cantilever, horizontal and centrifugal ones, which are widely used to transport corrosive/ abrasive and high concentration slurry in many industries.
| Design | Continuous pumping of highly abrasive, high density slurries with minimal maintenace requirements and can be applied Multi-staged in series. |
| Outlet instalation | The positions of the pump outlet can be positioned at an interval of 45°according to different requirements. |
| Wet end parts | Both metal or rubber liners and impellers, or a combination of both, are interchangeable within the same pump to facilitate use. |
| Seals | AH cantilever, horizontal and centrifugal pump shafts can be sealed by packing seals or centrifugal type seals. |
| Maintenace | A removable cartridge type grease lubricated bearing assembly can be replaced with the pump base in-situ. |
| Special materail | Polyurethane, stainless steel, Hastelloy 276-C, ceramic and various hard wearing alloys are available on request. |
AH(R) Pump performance parameters
| Type |
Max Power (Kw) |
Clear Water Performance | Impeller | Application | |||||
|
Capacity /m³/hr |
Head /m |
Speed/rpm |
Max Efficiency |
NPSH /m |
Nos of Vane |
Diameter /mm |
|||
| 1.5/1 B-AH | 15 | 12.6-28.8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | -Ball mill discharge |
| 2/1.5 B-AH | 15 | 32.4-72 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 | -SAG mill discharge |
| 3/2 C-AH | 30 | 39.6-86.4 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 | -Rod mill discharge |
| 4/3 C-AH | 30 | 86.4-198 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 | -Coal washing |
| 6/4 D-AH | 60 | 162-360 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 | -Wet crushers |
| 8/6 E-AH | 300 | 360-828 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 | -Ni acid slurry |
| 10/8 F-AH | 560 | 612-1368 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 | -Coarse tailings |
| 12/10 ST-AH | 560 | 936-1980 | 7-68 | 300-800 | 82 | 6 | 5 | 762 | -Meavy media |
| 14/12 ST-AH | 560 | 1260-2772 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 | -FGD |
| 16/14 TU-AH | 1200 | 1368-3060 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 | -Fine tailings |
| 20/18 TU-AH | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 | -Phosphoric acid |
| 1.5/1 B-AHR | 15 | 10.8-25.2 | 7-52 | 1400-3400 | 35 | 2-4 | 3 | 152 | -Heavy Minerals |
| 2/1.5 B-AHR | 15 | 25.2-54 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | -Chemical process |
| 3/2 C-AHR | 30 | 36-75.6 | 13-39 | 1300-2100 | 55 | 2-4 | 5 | 213 | -Paper and pulp |
| 4/3 C-AHR | 30 | 79.2-180 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 | 245 | -Power Utilities |
| 6/4 D-AHR | 60 | 144-324 | 12-45 | 800-1350 | 65 | 3-5 | 5 | 365 | - Metallurgy |
| 8/6 E-AHR | 300 | 324-720 | 7-49 | 400-1000 | 65 | 5-10 | 5 | 510 | -Grinding and screening |
| 10/8 F-AHR | 560 | 540-1188 | 12-50 | 400-750 | 75 | 4-12 | 5 | 686 | -Hydrocyclone separation |
| 12/10 ST-AHR | 560 | 720-1620 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | 762 | -Magnetic separation |
| 16/14 TU-AHR | 1200 | 1200-3000 | 11-42 | 250-450 | 82 | 4-9 | 5 | 1067 | -Flotation |
| 20/18 TU-AHR | 1200 | 1800-4000 | 12-44 | 200-350 | 82 | 5-10 | 5 | 1370 |
-Thickening |
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
| 1 | AH(R)/ZJ(R) series Metal/ Rubber Lined Horizontal Slurry Pump |
| 2 | M(R) series Medium Duty Slurry Pump |
| 3 | L(R)/ ZJD(R) series Low Abrasive Slurry Pump |
| 4 | HH/ ZJH series High Head Slurry Pump |
| 5 | SH series High Head Slurry Pump |
| 6 | G series Sand and Gravel Pump |
| 7 | WS(G) series Sand Dredging Pump |
| 8 | ZJW/ ZJW series Filter Press Feed Pump |
| 9 | SP(R)/ZJL(R) series Vertical Slurry Pump |
| 10 | AF(R)/ZJF(R) series Vertical Froth Pump |
| 11 | ZJQ series Submersible Sand Slurry Pump |
| 12 | WQ series Submersible Sewage Pump |
| 13 | TL(R) series Desulphurization Slurry Pump |
| 14 | ZGB series Heavy Slurry Pump |
| 15 | OEM series Slurry Pump |
| 16 | All Pump Spare Parts |
