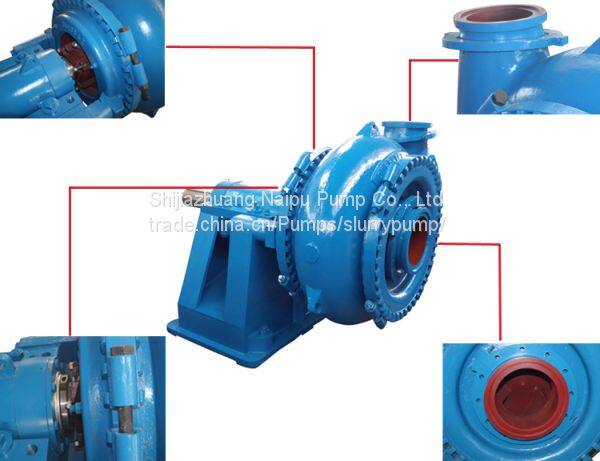

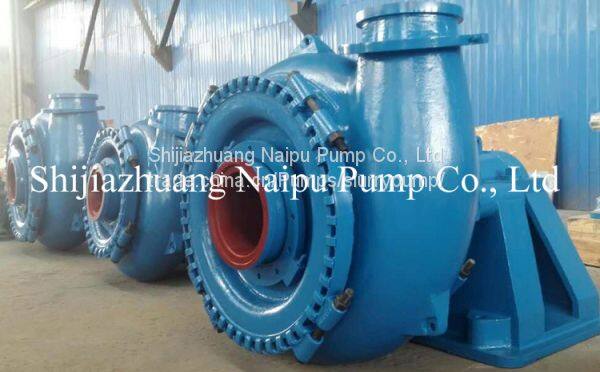

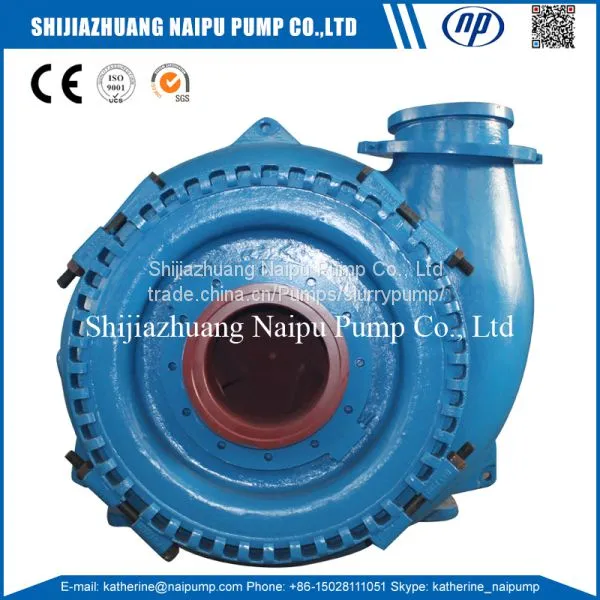

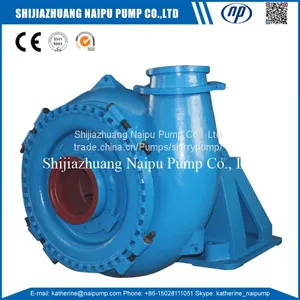

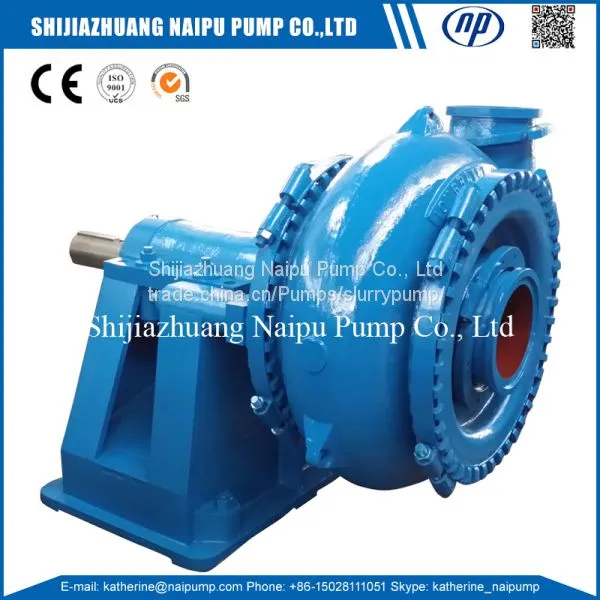

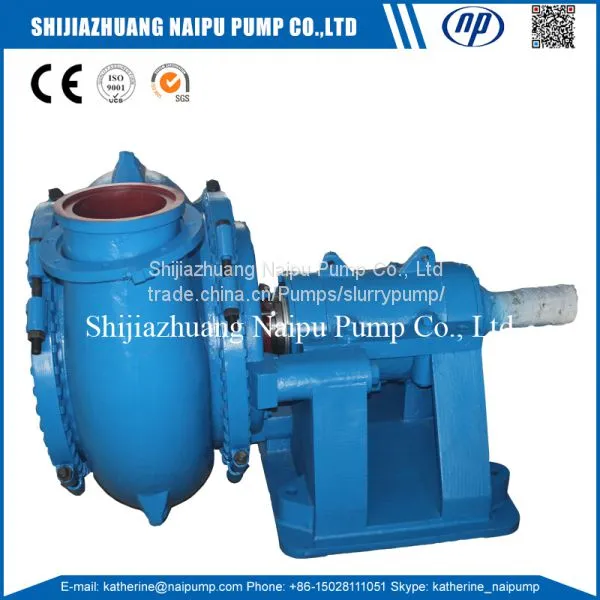

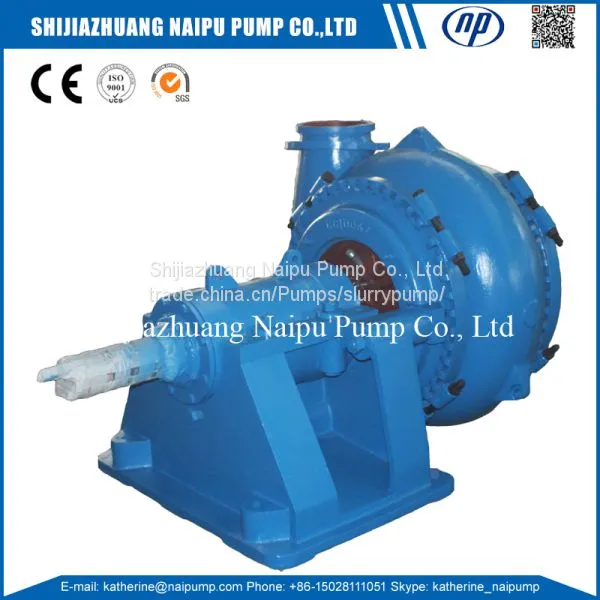

12/10G-G 10 Inches G Series Horizontal Centrifugal Sand Suction Pump
US$ 8700 - 9700
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NP
Place of Origin:
China
Model Number:
12/10G-G
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang,Tianjin
Delivery Detail:
15 days
Related Products
-
20AL Low Abrasive Cantilever Centrifugal Cooper Slurry PumpUS$ 790 - 960MOQ: 1 Set -
AH Metal Liner Mining Centrifugal Slurry PumpUS$ 700 - 18000MOQ: 1 Set
-
Shijiazhuang Naipu Machine 3/2 Type Slurry PumpsUS$ 1400 - 4200MOQ: 1 Set
-
4/3 AH Horizontal Mining Centrifugal PumpUS$ 1600 - 4200MOQ: 1 Set
-
SP Vertical Type Sump Pump for Delivering AbrasiveUS$ 1400 - 18000MOQ: 1 Set
Brand Name
NP
Place of Origin
China
Model Number
12/10G-G
Application
Sewage
Fuel
Diesel
Power
Electric
Usage
Water
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Single-stage Pump
Pressure
Low Pressure
G series Sand Gravel Pump
G series sand dredging pump is a new type of single-stage single-suction cantilever horizontal centrifugal sludge pump researched & manufactured by our company, aiming at dredging and damming of the river and seas.
Strongly wear-resistant casting alloy iron, whose hardness is not less than 58HRC adoped for the casting, impeller, front liner and rear liner of wet parts. It throughout meets requirements of the dredge to dredging pumps.
G series Sand Pump Advantages
| 1 | Large drdging depth, high density of dredging mud, good NPSH and stronger suction lift ability |
| 2 | Strong through-put. The pump can persistently discharge gravel, high plastic soil lump and so on |
| 3 | The pump can be directly matched with either motor or diesel engine |
| 4 | Wide application. It can be used in various kinds of soil quality. |
| 5 | Little hydraulic loss, high efficiency and low oil-consumption |
| 6 | Little volume, light weight |
| 7 | Steady operating, little vibration, low noise |
| 8 | Simple & reliable construction, easily disassembly & assembly, convenient maintaining |
| 9 | Reliable sealing without leakage |
| 10 | Long operation life of parts, high reliability of whole set, long MTBF |
| 11 | Obvious economic efficiency and energy-saving |
Pump performance parameters
| Model |
Flow (m3/h) |
Head (m) |
Speed (r/min) |
Efficiency (%) |
Motor (kw) |
Drive type |
| 6/4D-G | 187-36 | 7-51 | 1400-600 | 30-58 | 52-3 | CV.CR.DC |
| 8/6E-G | 576-133 | 10-48 | 1400-800 | 60-54 | 88-11 | CV.CR.DC |
| 10/8F-G | 930-216 | 11-44 | 940-500 | 65-34 | 147-22 | CR.DC |
| 12/10G-G | 1512-360 | 11-58 | 850-400 | 70-50 | 305-24 | CR.DC |
| 14/12G-G | 3168-522 | 9.5-66 | 700-300 | 68-60 | 643-29 | CR.DC |
| 16/14TU-G | 3024-900 | 14-45 | 500-300 | 70-50 | 459-78 | CR.DC |
| 8/6F-G | 648-126 | 15-77 | 1050-500 | 71-50 | 177-12 | CR.DC |
| 10/8F-G | 1091-324 | 19.2-56.5 | 800-500 | 72-60 | 205-32.4 | CR.DC |
| 12/10G-G | 2232-612 | 28-77 | 700-450 | 73-60 | 558-89 | CR.DC |
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
| 1 | AH(R)/ZJ(R) series Metal/ Rubber Lined Horizontal Slurry Pump |
| 2 | M(R) series Medium Duty Slurry Pump |
| 3 | L(R)/ ZJD(R) series Low Abrasive Slurry Pump |
| 4 | HH/ ZJH series High Head Slurry Pump |
| 5 | SH series High Head Slurry Pump |
| 6 | G series Sand and Gravel Pump |
| 7 | WS(G) series Sand Dredging Pump |
| 8 | ZJW/ ZJW series Filter Press Feed Pump |
| 9 | SP(R)/ZJL(R) series Vertical Slurry Pump |
| 10 | AF(R)/ZJF(R) series Vertical Froth Pump |
| 11 | ZJQ series Submersible Sand Slurry Pump |
| 12 | WQ series Submersible Sewage Pump |
| 13 | TL(R) series Desulphurization Slurry Pump |
| 14 | ZGB series Heavy Slurry Pump |
| 15 | OEM series Slurry Pump |
| 16 | All Pump Spare Parts |
