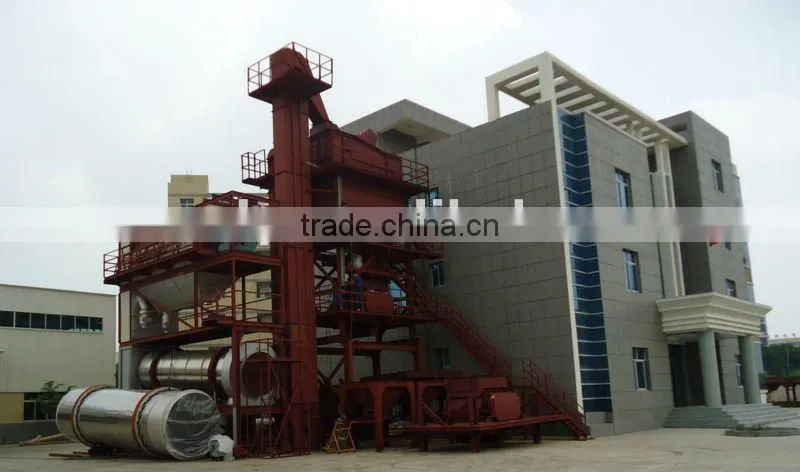

Help CenterRoad Machinery GC-1500
Related Products
Specifications
road machinery1.Capacity:120t/h
2.Hot agg bin:30m3
3.Mixing cylinder:1500kg
4.Finished storage bin:100t
road machinery GC series
| Type | Capacity | Hot Agg Bin | Capacity | Finished storage Bin | Weighing Accuracy |
| GC-600 | 48t/h | 8m³ | 600kg | 50t | Aggregate:±0.5% Filler:±0.25% Bitumen:±0.25% |
| GC-1000 | 80t/h | 12m³ | 1000kg | 100t | |
| GC-1500 | 120t/h | 30m³ | 1500kg | 100t | |
| GC-2000 | 160t/h | 50m³ | 2000kg | 200t | |
| GC-3000 | 240t/h | 50m³ | 3000kg | 200t/300t |
road machinery 120t/h
1.The integrated bins for finished product greatly decreased the large-area of plant,no
elevating for skip is no longer need,hence reducing the down time.
2.The new style puts the bag filter above the drying drum, not only reduces the large-are,but
also saves the fuel consumption and heat loss.So the plant design is based on the
environment protection and economical perspective.
3.The belt inclined conveyor comes with built-in deck scalping screen.
4.The control room contains the nerve center for the entire asphalt plant.It can be picked up
by crane without danger of warpage.
5.The control room is furnished with insulated floor,walls and ceilings. All models provide an
excellent facility control environment and surveillance with convenience and
comfort.All controls are factory installed and fully tested prior to delivery.
