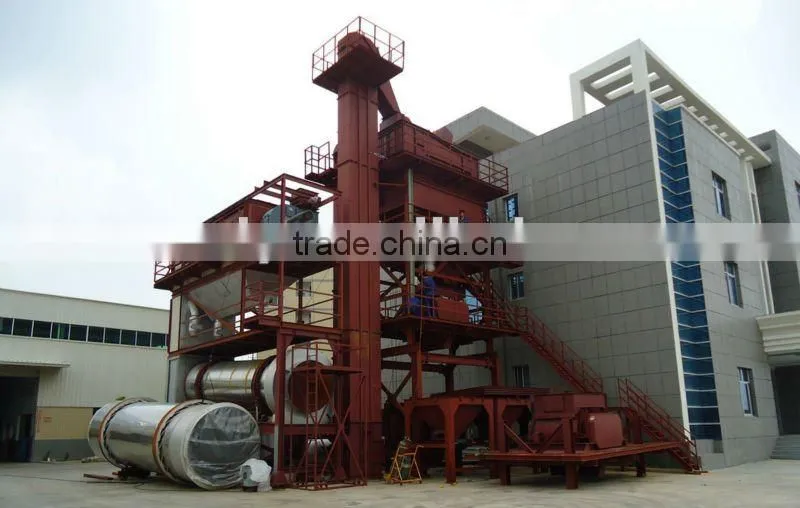

asphalt plant mixer 120t/h

Specifications

asphalt plant mixer
1.Capacity:120t/h
2.Hot agg bin:30m3
3.Mixing cylinder:1500kg
4.Finished storage bin:100t

asphalt plant mixer GC series





Type	Capacity	Hot Agg Bin	Capacity	Finished storage Bin	Weighing Accuracy
GC-600	48t/h	8m³	600kg	50t	Aggregate:±0.5% Filler:±0.25% Bitumen:±0.25%
GC-1000	80t/h	12m³	1000kg	100t
GC-1500	120t/h	30m³	1500kg	100t
GC-2000	160t/h	50m³	2000kg	200t
GC-3000	240t/h	50m³	3000kg	200t/300t



asphalt plant mixer







asphalt plant mixer characteristics





1)The integrated bins for finished product greatly decreased the land-area of the plant,

   elevating system for skip is no longer needed,hence reducing the down time.



2)Our unique designed paddles and the powerful mixer allow the mixing operation easier,

   effective and reliable.



3)The linear-mode screen driven by imported vibrator improves the screening efficiency

   and reduces the rate of breakdown for the plant.



4)The hot elevator adopts the double gall's chain for hoisting,which not only prolongs the

   service life of the hoisting mechanism but also improves the operation stability.



5)The optimized flights structure of drying drum makes the drying system more effective

   and stable.



 6)The dual computer-controlled system with auto/manual switchable,and auto self-diagnosis

   program,make the operation smooth and safe.



7)The modular design plants can be easily transported by standard equipment and rapidly

   installed at site.



8)The RAP interface is reserved for upgrade of hot RAP facilities.



9)Bag filter is being placed on top of drying drum, it reducing heat loss, thus saving fuel

   cost and space.



environment protection of asphalt plant mixer



1.Total dust collection with 1st-level inertial collecting,2nd-level bag house and dust

   collecting modules for various portions of facilities.



2.We establish environment protection concepts according to the European standards

  to achieve in dust emission,acid emission and noise control,etc.



3.The facilities are in green harmony with the environment wherever we go.
