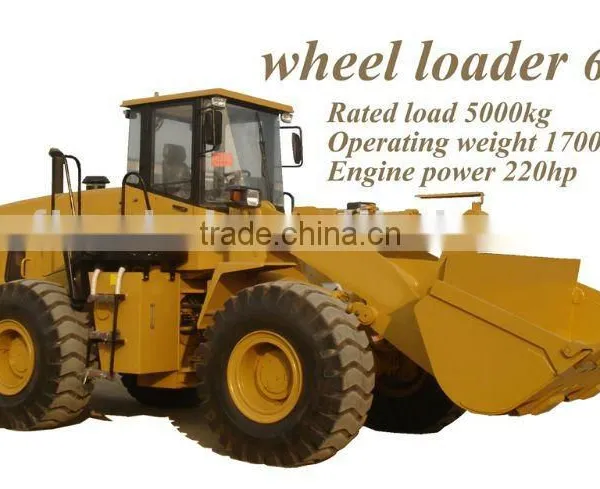

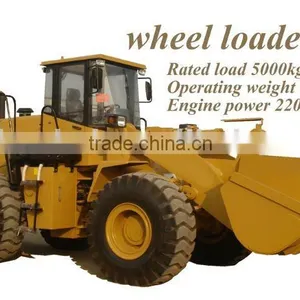

Help CenterWheel Loader 650
Related Products
Specifications
Powerful engine;Hydrauic transmission;
4WD,articulated structure;
Multi-purpose implements;
Optional quick hitch, joystick.
Operating weight:17000kg
Rated load:5000kg
Bucket capacity: 3.0cu.m
Tread:2250mm
Wheel base:3200mm
Min. turning radius outside bucket:5623mm
Min. turning radius outside of tire:4857mm
Min. ground clearance:450mm
Max. dump height:3145mm
Min. dump reach:1222mm
Max. gradeablity:30 degree
Overall dimension: 7934mm x 3066mm x 3410mm
Engine: Weichai Diesel, Vertical, in-line 6-Cylinder,Water Cooled and 4-stroke,
162kw/220hp, 2200r/min
Transmission: hydraulic torque converter, power shift gearbox ,4 forward + 4 reverse
Travel Speed:1st gear 8.9km/h,2nd gear 16.5km/h,3rd gear 25.5km/h, 4th gear 44.5km/h
Steering: articulated hydraulic steering system, Max. turning 38degree each side
Axles: 4WD, front rigid axle, rear axle oscillating mounted on rear chassis
Tire:23.5-25
Hydraulic system: hydraulic gear pump, 2 lever mechanical control of arm lifting and
bucket turning, double acting hydraulic cylinder,
hydraulic pressure 2320psi(16Mpa)
Brake system: service brake is air over hydraulic disk brake,
park brake is air operated external disk brake
Electric system: traffic lights, working lights, rotary warning light, rain wiper, radio,
oil pressure meter, hour meter, fuel meter, cabin fan, electric start
Cabin with heater system, air suspension seat, fire extinguisher, safety hammer, adjustable dashboard
Standard equipment: Weichai WD615G-220 6-Cylinder engine;4 speed power shift transmission; Cabin with heater; 2 lever mechanical control; General bucket or heavy duty bucket; 23.5-25 tire.
Optional :
Shangchai C6121 engine (Licensed caterpillar 3300);
Advanced ZF WG180 transmission 4 forward + 3 reverse, electronic gearshift lever; Cabin with air conditioning;
Hydraulic quick hitch system for fast change implements;
One lever hydraulic pilot control(joystick);
hydraulic 3rd function;
Implements :
Rock bucket, range of light material buckets from 3cu.m to 4.5cu.m, coal bucket, pallet fork & grab fork, log gripper, hay & silage handling attachment.
