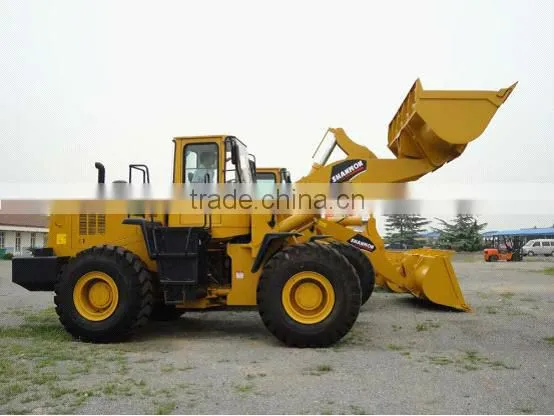

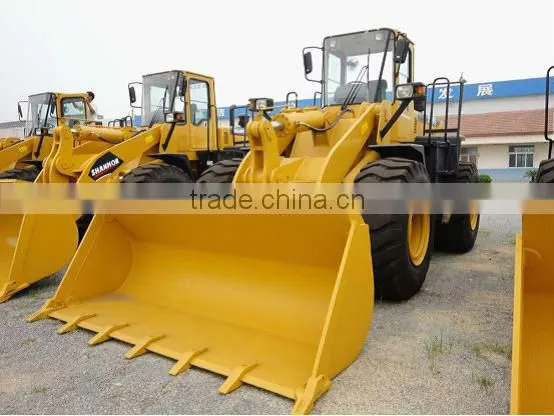

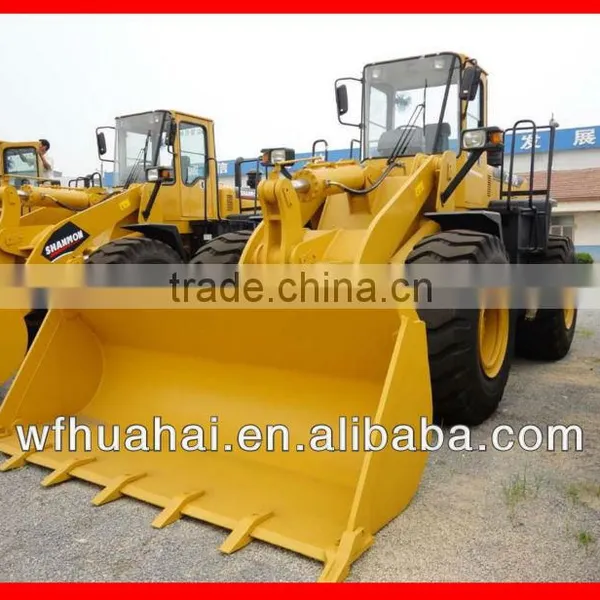

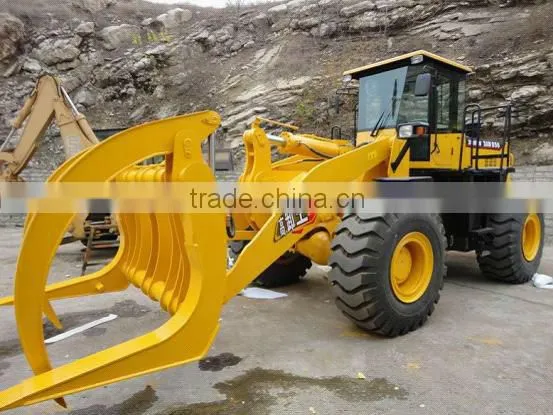

ZL50G 5TON Wheel Loader

Name: ZL50G 5TON Wheel Loader
Brand: SHANMENG
SKU: 137138933

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

SHANMENG

Model Number:

ZL50G

Weifang Huahai Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SHANMENG

Model Number ZL50G

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7920*3050*3400

Rated Load 5000KGS

Specifications

ZL50G wheel loader
rated load 5t
rated bucket capacity 3cbm
max tractive force 152KN
6 cylinder

ZL50G WHEEL LOADER

1.Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2.Easy-to-read gauges display and ergonomically designed controls make the driving convenient and

comfortable

3.Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large

brake force and makes stable brake and high safety

4 Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise,high

reliability,Double-stage air filter is standard equipment for dusty fields.

5 Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation,

action smooth and reliable

6 The big loading engine side covers made in steel are of good appearance and suitable for

maintenance

1	rated load	5000kg
2	overall weight	17100kg
3	rated bucket capacity	3m3
4	maximum tractive force	152KN
5	maximum breakout force	≥170KN
6	maximum grade ability	30°C
7	maximum dump height	3150mm
8	maximum dump reach	1250mm
9	overall dimension (L×W×H)	7920×3050×3400mm
10	minimum turning radius	6640mm
11	model	Weichai Steyr WD615G.220
12	type	lnline water cooling dry cylinder injection
13	No. of cylinder-bore/stroke	6-126×130mm
14	rated power	162kw--2400r/min
15	maximum torque	860N.m
16	min fuel-consume ratio	≤215g/kw.h
17	torque converter	YJ375
18	gearbox mode	Power shift normally engaged straight gear
19	gear shift	4 forward shift 4reverse shift
20	maximum speed	38km/h
21	main reducing spiral	bevel gear grade 1reduction
22	decelerating mode	planetary reduction,grade 1
23	wheel base (mm)	3200mm
24	wheel tread	2250mm
25	minimum ground clearance	450mm
26	system working pressure	18MPa
