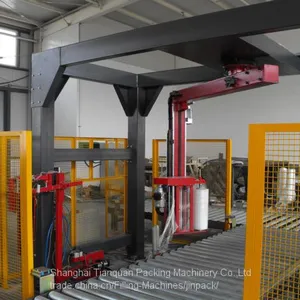

Rotary Pallet Wrapping Machine Model JC-1800
*Application:
1. JC-1800 stretch wrapping machine is a machine that arm rotates around the load,
deliver the film around the load. These stretch wrapping systems allow loads to be
wrapped while stationary on the floor.Designed for heavy or unstable loads. Film provides
extra support while the products are being transport & storage to protect them from tip,
spill or become damaged. Additionally, wrapped loads can easily be separated and identified.
2. Stretch pallet wrapper is widely used in chemical industry, electronic industry, building materials,
home appliances, papermaking, foodstuff & drink etc.
*Feature:
1. PLC control system with high stability;
2. Separate 0-9 top ,bottom & up-down Wrap Counter Selector;
3. Easy operation;
4. Photo-eye auto-height sensing;
5. Reliable parts selected;
6. Manual/automatic exchangeable;
7. 0-15rpm variable speed by frequency changer;
8. Heavy duty chain carriage lift, calm and safety :
9. Buffer start and stop:
*Specification:
Wrapping size（L*W*H）mm | （500-1300）*（500-1200）*2200 |
Capacity | 40-60Pallet/Hour |
Film Carriage Speed | 0-15rpm |
Film Carriage System | Pre-stretch System(250%) |
Power Supply | 1.15KW/AC220V |
Machine Size（L*W*H） | 3170*3469*3390（L*w*h） |
PE Film Available | LLDPE, Thickness：17~35um,width：500mm |
Net weight | 680kg |
