Pallet Wrapping Machine
- Shanghai
- T/T L/C
- 45 days
You May Like
Product Details
| Brand Name | JINPACK | Place of Origin | China | |
| Model Number | JC-1200 | Certification | as per request | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | as per final | |
| Dimension(L*W*H) | as per final | Voltage | 380V | |
| Power | 2.2kw | Application | Other, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | |
| Condition | New | Automatic Grade | Automatic | |
| Driven Type | Electric | Packaging Type | Other, Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film |
Product Description

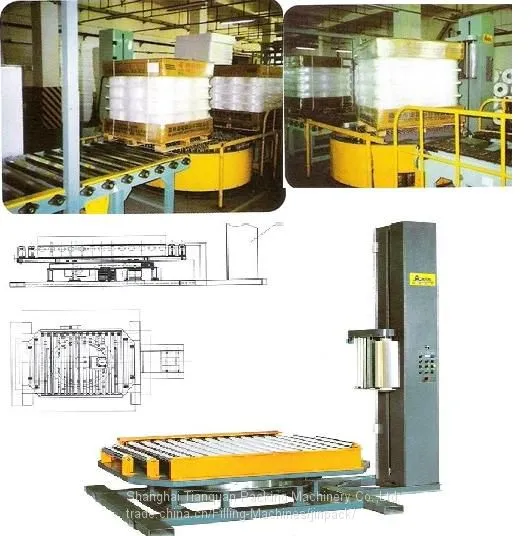

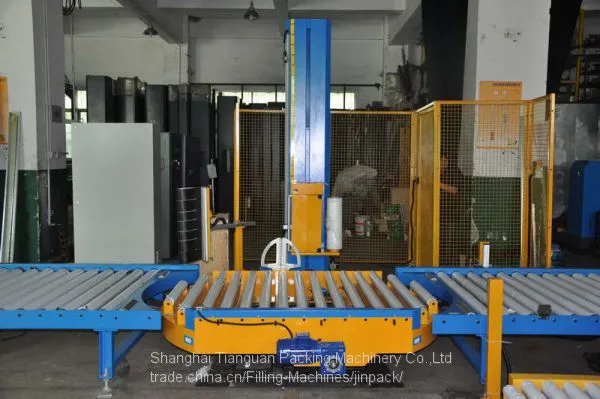

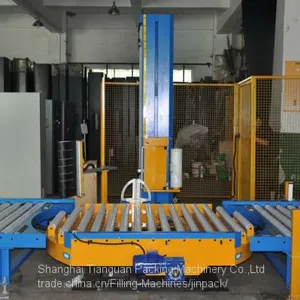

Inline Stretch Wrapping Machine JC-1200
1. Specification:
*Power supply: 220/380, 3phase, 50/60Hz
*Wrapping height: 1800/2400mm
*Wrapping size: 500-1400*500-1200mm (L*W)
*Loading weight: 2000kg (Max)
*Turntable diameter: 2000mm
*Turntable speed: 15 circles/Min
*Power consumption: 2.3KW
*Capacity: 20-40 Pallet/Hr
*Air consumption: 15NL/Min
*Film width: 500mm (Max)
*Film thickness: 20-35Microns
*Film Inner diameter: 76mm
*Film outer diameter: 360mm
*Conveyor height: 625mm
*Machine weight: 1200kg
2. Features:
*Automatic wrap, film clap, film cut, and film smoothen;
*Equipped with photo sensor to detect the height of product automatically;
*Film tension control adjustable;
*Turntable combined with powered roller conveyor with brake system;
*Can be combined with productive line
