Centrifugal Sand Suction Pump

Centrifugal Sand Suction Pump thumbnail-1
Centrifugal Sand Suction Pump photo-1
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Bangpu
Model Number:
ZJ
Contact Supplier Request Quote Chat Now
Shanghai Bangpu Industrial Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Bangpu
Model Number ZJ
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, electric
Pressure Other, <10bar
Application Sewage



Centrifugal Mine Diesel Slurry Pump

Specification:

Capacity:162-360m³/h

Head:12-56m

Speed:800-1550rpm

Impeller diameter:365mm

Pump weight:626kg
.

Slurry Pump Structure:



1.Pump head-Double-case pump is vertical split, the discharge can be installed at 8 different positions with an interval of 45°.

2.Bracket-Horizontally split or cantilever

3.Shaft seal for choosing-Expeller seal and packing seal;Packing seal;Mechanical seal

4.Expeller, Expeller ring,Shaft seal-Wear-resistant materials,long-lifespan;increases Mean Time Between

Failures(MTBF) greatly.

5.Bearing-Lubricated with diluted oil; reasonable cooling system guarantees the bearing works at the optimal temperature.

6.Flowing parts-special material;abrasion-corrosion resistant

Electric motor mud pump slurry pumps series models

Heavy  Horizontal Slurry Pump

Pump Model

Performance

CAPACITY

(m³/h)

HEAD  (m)

SPEED

(r/min)

ALLOWABLE MATING MAX.POWER(KW)

NPSH

(m)

1.5/1

12.6~28.8

6~68

1200~3800

15

2-4

1.5/1

16.2~34.2

25~92

1400~2200

30

2-5.5

2/1.5

32.4~72

6~58

1200~3200

15

3.5-8

3/2

39.6~86.4

12~64

1300~2700

30

4-6

3/2HH

68.4~136.8

25~87

850~1400

60

3-7.5

4/3

86.4~198

9~52

1000~2200

30

4-6

4/3HH

126~252

12~97

600~1400

120

2-5

6/4

162~360

12~56

800~1550

60

5-8

6/4HH

324~720

30~118

600~1000

560

3-8

8/6

468~1008

20~94

500~1000

560

4-12

8/6

360~828

10~61

500~1140

300

2-9

10/8

666~1440

14~60

600~1100

120

4-10

10/8

612~1368

11~61

400~850

560

4-10

12/10

936~1980

7~68

300~800

560

6

14/12

1260~2772

13~63

300~600

560

3-10

16/14

1368~3060

11~63

250~550

1200

4-10

20/18

2520~5400

13~57

200~400

1200

5-10

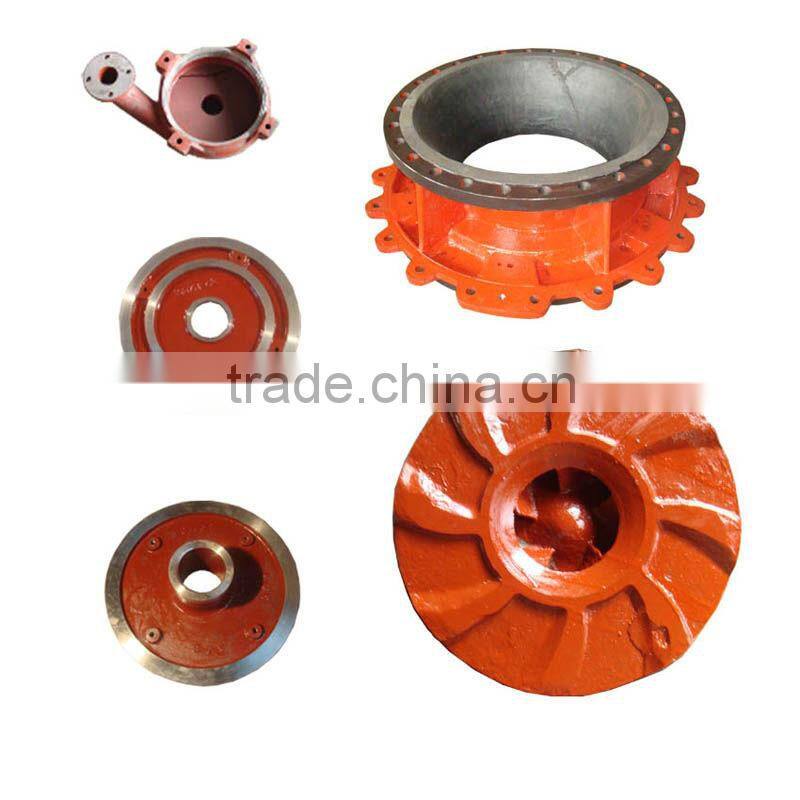

Heavy Slurry Pump Material:



a)Impeller: high-chromium alloy or rubber

b)Volute liner: high-chromium alloy

c)Shaft: 45# steel

d)Shaft sleeve: ductile casting

e)Frame plate: casting

f)Packing seal: Mechanical seal

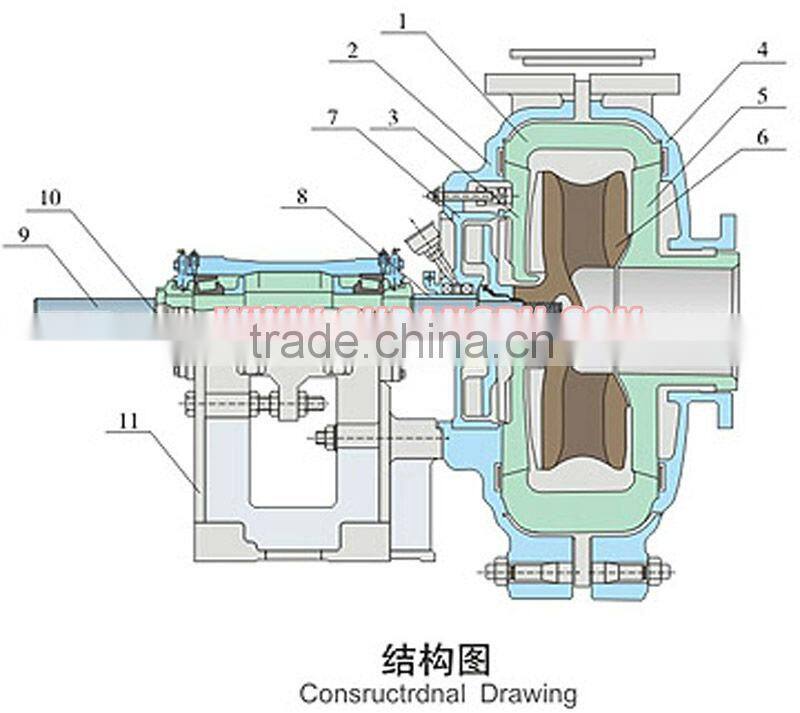

 Structure:

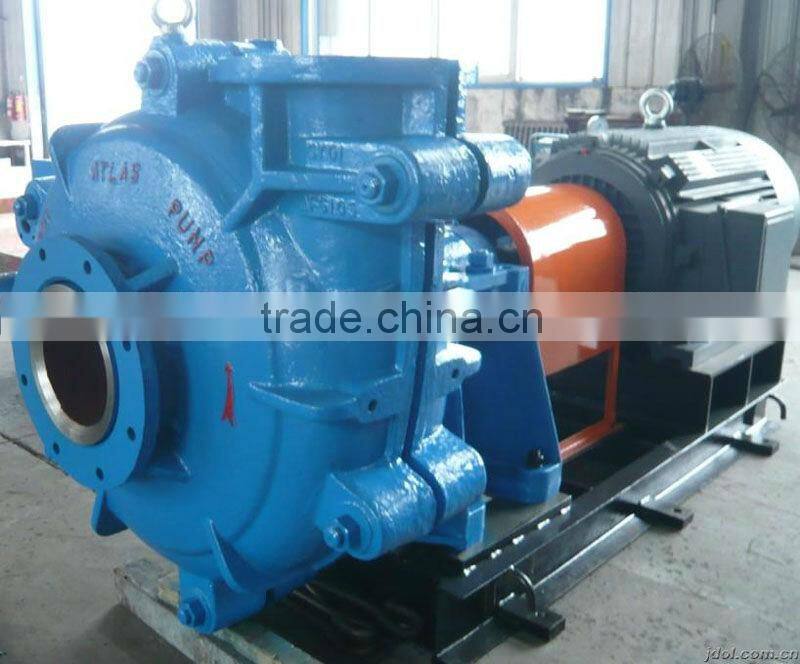

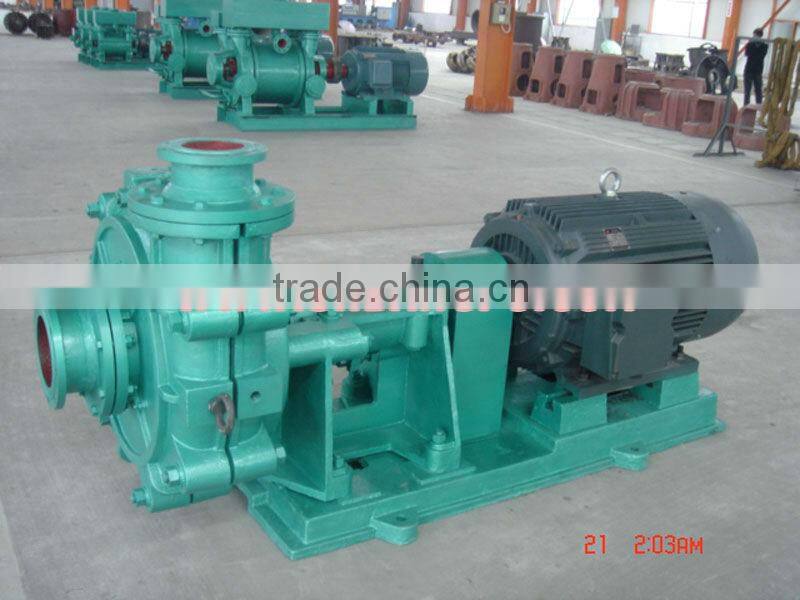

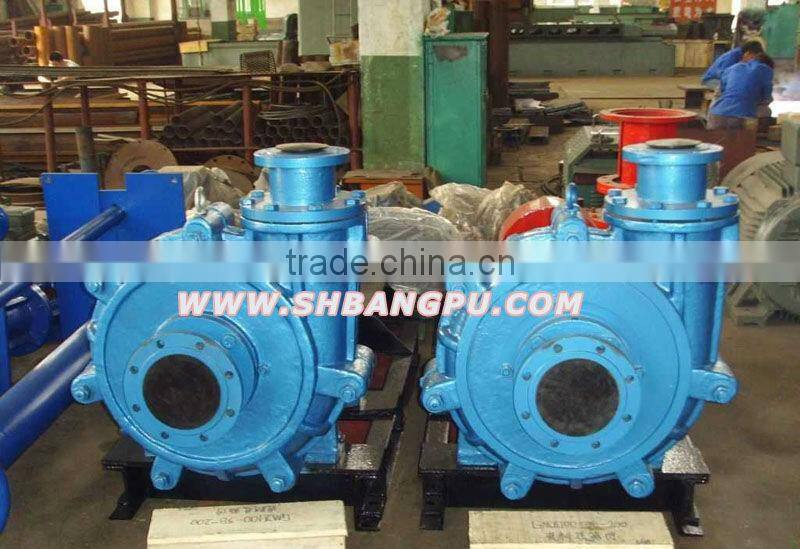

Centrifugal sand suction pump



 Centrifugal sand suction pumpCentrifugal sand suction pumpCentrifugal sand suction pumpCentrifugal sand suction pump
