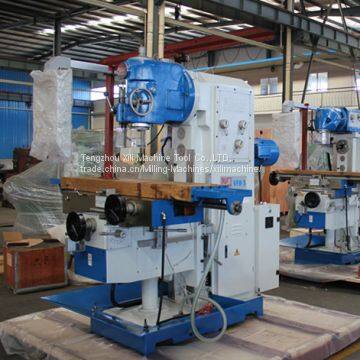

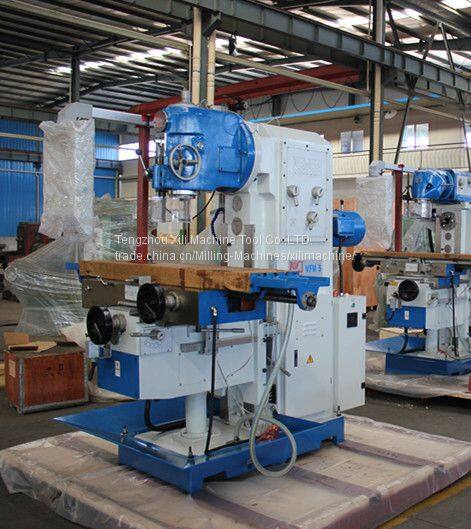

XL5032 Knee Type Milling Machine

Name: XL5032 Knee Type Milling Machine
Brand: yourongxili
SKU: 135045565
Availability: InStock

Tengzhou Xili Machine Tool Co.,LTD.

US$ 1000 - 10000 MOQ: 1 Set

Key Specifications

Brand Name:

yourongxili

Place of Origin:

China

Model Number:

XL5032

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

30 days

Brand Name yourongxili

Place of Origin China

Model Number XL5032

Type Vertical

Certification CE ISO90

After-sales Service Provided Engineers available to service machinery overseas

Warranty 12 months

Weight 2800

Dimension(L*W*H) 1800×2100×2150

Voltage as customer request

Condition New

Power(W) 5.5

CNC or Not Normal

XL5032 knee type milling machine

1.Rotary table can be ordered

2.Driven by servo motor

3.CNC System can be installed

4.4th axis:cnc rotary table, cnc dividing head is available

Specification

Specification	Unit	XL5032	XL5032C	XL5032CL
Table size	mm	1325X320		1600X320
T-slots（NO./Width/Pitch)		3/18/70
Longitudinal travel	mm	750	1100	1300
Cross travel	mm	320
Vertical travel	mm	460	450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375 8steps
Table rapid speed（X/Y/Z）	mm/min	1200/800/600
Spindle taper		7:24 ISO50
Spindle speed range	r.p.m	50-1475
Spindle speed step	steps	12steps
Spindle travel	mm	70
Max. swivel angle of vertical milling head		±30°
Distance between spindle nose and table surface	mm	50-510	50-500
Distance between spindle axis and column guideway	mm	378
Torque of X/Y/Z axis AC servo motor	N.m	10
Main motor Power	kw	5.5
Overall dimensions (L×W×H)	mm	1800×2100×2150	2245×2100×2150	2520×2100×2150
Net weight	kg	2750	2850	2900

Specification	Unit	XL5036	XL5036C	XL5036CL
Table size	mm	1325X360		1600X360
T-slots（NO./Width/Pitch)		3/18/70
Longitudinal travel	mm	750	1100	1300
Cross travel	mm	320
Vertical travel	mm	460	450
Table feed (X/Y/Z)	mm/min	30-750/20-500/15-375 8steps
Table rapid speed（X/Y/Z）	mm/min	1200/800/600
Spindle taper		7:24 ISO50
Spindle speed range	r.p.m	50-1475
Spindle speed step	steps	12steps
Spindle travel	mm	70
Max. swivel angle of vertical milling head		±30°
Distance between spindle nose and table surface	mm	50-510	50-500
Distance between spindle axis and column guideway	mm	378
Torque of X/Y/Z axis AC servo motor	N.m	10
Main motor Power	kw	5.5
Overall dimensions (L×W×H)	mm	1800×2100×2150	2245×2100×2150	2520×2100×2150
Net weight	kg	2800	2900	3000

Standard Accessories
