Water treatment system/water treatment equipment/drinking water treatment plant

Specifications

water treatment equipment
1.unattended
2.high desalting rate
3.wide application range
4.low operation cost



 Water treatment system/water treatment equipment/drinking water treatment plant

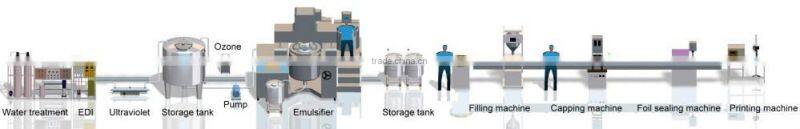

water treatment equipment flow chart



                                                                                                         ⇓

Performance and Features



 ◊  Automatic switch on when low water level, and switch off when high water level.

 ◊   Pure water tank with cone type structure,a discharge valve at the bottom, easy to clean and disinfect exhausted.

 ◊  Integrating water flow indicator, TDS indicator, pressure indicator, control panel.

 ◊  China Top Brand or world famous brand electrical, switch and valve systems.

 ◊  Built-in soft-start system to avoid damage to the expensive membrane when starting.

  ◊  When used for disposing industrial water,the reverse osmosis device does not consume large amounts of acids and alkalis,and there is no secondary pollution.In addition,its operation cost is also low.

   ◊   Reverse Osmosis desalting rate ≥99%,machine desalting rate  ≥97%. 98% of organic matters,colloids and bacteria can be removed.





Application



  ◊ Electronic industry  water

  ◊  Pharmaceutical industry water

  ◊  Chemical industry process water

  ◊  Electric industry boiler feeding water

  ◊  Food industry water

  ◊ Seawater and saline water desalination

  ◊ Purified drinking water





Technical parameter

Model	Production of water (T/H)	Motor power(kw)	Membrane	Entrance Diameter (mm)	Size(L*W*H)(mm)	Weight (Kg)
JT-0.5	0.5	1.1	4040	Φ32	1300*600*1400	100
JT-1	1	1.5	4040	Φ32	1300*600*1400	100
JT-2	2	3	4040	Φ38	1400*600*1400	200
JT-3	3	4	8040	Φ48	1600*750*1750	200
JT-4	4	5	8040	Φ48	2550*750*1750	250
JT-5	5	7	8040	Φ60	2550*750*1750	300
JT-10	10	11	8040	Φ60	3000*800*2000	600
JT-15	15	16	8040	Φ72	3000*1250*2000	840
JT-20	20	30	8040	Φ60	3000*1800*2000	1250

















 Material sources of parts













 Notes: A quality department has been set up to control the product quality during every process of production. For years, we are strictly implementing International Quality Management System ISO 9001.









Notes: Founded in 1997, with 5 production lines and covering an area of 12,000 square meters, our factory has developed into a professional manufacturer of cosmetics machinery and equipment, by integrating R&D, manafacturing, sales and service. Advanced production equipments are the guarantee for high quality products.









  Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.





Our main products
1.RO Water treatment machine	2.Vacuum emulsifying machine	3.Liquid washing machine
4.Filling machine	5.Packing machine	6.Labeling machine
7.Perfume machine	8.Conveyor	9.Auxiliary equipment
10.Filling and sealing machine
