Specifications
pure water treatment plant1.Over 90% import part
2.Economical and durable
3.Space saving .easy to operate
4.CE
Microcomputer controller pure water treatment plant
FEATURES
1. Automatic backwash and manual backwash
2. Automatic switch on when low water level, and switch off when high water level
3. This system occupy little space, easy to operate, wide application range.
4. Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
5. Finished water under good electric conductivity, one stage≤10μs/cm, two stage around 2-3μs/cm, EDI ≤0.5μs/cm
SUMMARY OF REVERSE OSMOSIS
Reverse osmosis technology is a modern high technology developed recently in China. Reverse osmosis is to separate water from solution after it permeates the specially-made semi-transparent membrane through exerting a pressure that is higher than the osmosis pressure on the solution.
As this process is reverse to the natural permeation direction, it is called reverse osmosis.
According to different osmosis pressures of various materials, the process of reverse osmosis with a pressure higher than the osmosis pressure can be used to reach the purposes of separation, extraction, purification and concentration of a certain solution. It does not need heating and there is no phase changing process;
therefore, it saves more energy than traditional process.

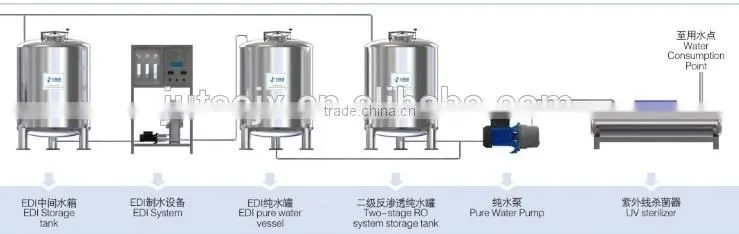

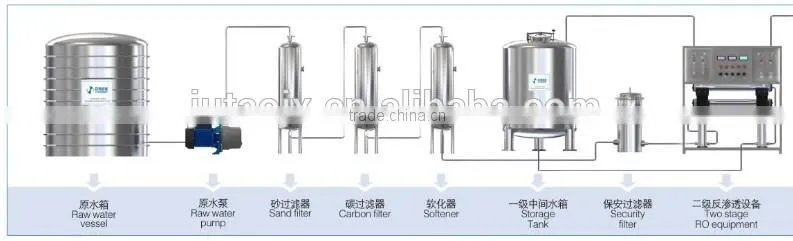

WATER TREATMENT PROCESS FLOWCHART
Raw water→ Raw water tank→ Raw water pump→ Sand filter→ Active carbon filter→ Security filter→ high pressure pump→ RO component→ Pure water tank →UV/Ozone→ Pure Water
Technical parameter
Model |
Production of water (Ton/h ) |
Motor power (kw) |
Membrane
|
Entrance Diameter (mm) |
Size(L*W*H) ( mm) |
Weight (Kg) |
JT-0.5 |
0.5 |
1.1 |
4040 |
Φ32 |
1300*600*1400 |
100 |
JT-1 |
1 |
1.5 |
4040 |
Φ32 |
1300*600*1400 |
100 |
JT-2 |
2 |
3 |
4040 |
Φ38 |
1400*600*1400 |
200 |
JT-3 |
3 |
4 |
8040 |
Φ48 |
1600*750*1750 |
200 |
JT-4 |
4 |
5 |
8040 |
Φ48 |
2550*750*1750 |
250 |
JT-5 |
5 |
7 |
8040 |
Φ60 |
2550*750*1750 |
300 |
JT-10 |
10 |
11 |
8040 |
Φ60 |
3000*800*2000 |
600 |
JT-15 |
15 |
16 |
8040 |
Φ72 |
3000*1250*2000 |
840 |
JT-20 |
20 |
30 |
8040 |
Φ60 |
3000*1800*2000 |
1250 |
Material sources of parts
Notes: JUTAO Machinery is a professional manufacture of chenemcial machinery and equipment ,accumulating more than 10 years of manufacturing experience since its establishment in 1997. we have been certified to the ISO9001:2000 international quality managment-system.
Notes: We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always.
