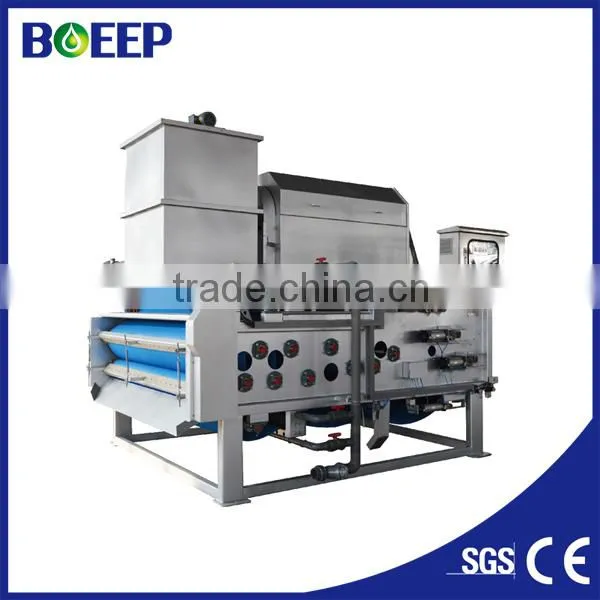

Drum enrichment belt filter press dewatering machine
Product Features :
1. Material of the main structure : SUS304/316
2. Belt : Has a long service life
3. Low power consumption, slow-speed of revolution and low noise,
4. Adjustment of belt: Pneumatic regulated, ensures the stability of the machine
5. Multi-point safety detection and emergency stop device:improve the operation.
6. The design of the system is obviously humanized and provides convenience in operation and maintenance
Product Application:
Product Data:
ZDY1.0 |
ZDY1.5 |
ZDY2.0 |
Note |
||
Belt width(mm) |
1000 |
1500 |
2000 |
|
|
|
Treatment capacity Inlet sludge concentration (SS1-5%) |
6.5~10.5 |
12~20.5 |
18~30 |
Depending on the types of sludge |
|
D.S Dried sludge(kgds/h) |
98~158 |
180~308 |
240~450 |
Depending on the types of sludge |
|
Moisture content of the filter cake(%) |
75~85 |
75~85 |
75~85 |
Depending on the types of sludge |
|
Service power(kw) |
The motor for driving belt(frequency control) |
0.37 |
0.75 |
0.75 |
|
The motor for mixing |
0.37 |
0.55 |
0.75 |
|
|
The motor for drum thickener |
0.37 |
0.55 |
0.55 |
|
|
RC Collecting Tray for Filtrate |
With |
With |
Without |
|
|
Reference appearance size(mm) |
L |
2600 |
3300 |
3450 |
Before ordering, please ask for the actual installation size drawing |
W |
1550 |
2150 |
2900 |
||
H |
2540 |
2550 |
3100 |
||
Base dimension L1 x W1(mm) |
2100 x1330 |
2450 x1860 |
2715 x2420 |
|
|
Reference weight (kg) |
1210 |
2200 |
2850 |
|
|
Product Details:
ZDY-TypeDrum enrichment belt filter press dewatering machine: mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.
Treatment Flowchart :
Project Site:
1. Sludge dewatering of industry waste water
2. Separation of liquid and solid in food, chemical and mining industries
3. Sludge dewatering in butching and animal husbandry
If you are interested in our product, contact me!
We will do our best to be of service for you !
