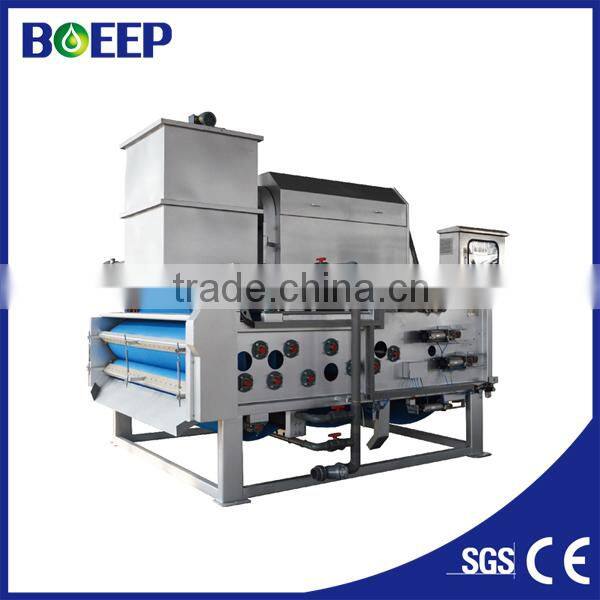

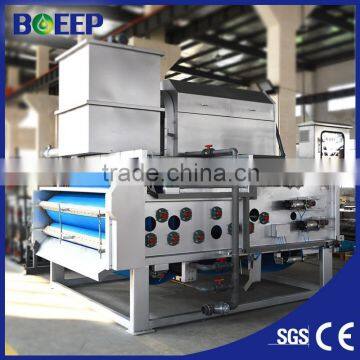

Belt press dehydrator for industry sludge
Specifications:
1.automatic filter cloth washing
2.long life belt cloth
3.save energy
4.High capacity
Product Features :
1. Material of the main structure : SUS304/316
2. Belt : Has a long service life
3. Low power consumption, slow-speed of revolution and low noise,
4. Adjustment of belt: Pneumatic regulated, ensures the stability of the machine
5. Multi-point safety detection and emergency stop device:improve the operation.
6. The design of the system is obviously humanized and provides convenience in operation and maintenance.
Product Application:
1. Sludge dewatering of industry waste water
2. Separation of liquid and solid in food, chemical and mining industries
3. Sludge dewatering in butching and animal husbandry
Product Data:
ZDY1.0 |
ZDY1.5 |
ZDY2.0 |
Note |
||
Belt width(mm) |
1000 |
1500 |
2000 |
|
|
|
Treatment capacity Inlet sludge concentration (SS1-5%) |
6.5~10.5 |
12~20.5 |
18~30 |
Depending on the types of sludge |
|
D.S Dried sludge(kgds/h) |
98~158 |
180~308 |
240~450 |
Depending on the types of sludge |
|
Moisture content of the filter cake(%) |
75~85 |
75~85 |
75~85 |
Depending on the types of sludge |
|
Service power(kw) |
The motor for driving belt(frequency control) |
0.37 |
0.75 |
0.75 |
|
The motor for mixing |
0.37 |
0.55 |
0.75 |
|
|
The motor for drum thickener |
0.37 |
0.55 |
0.55 |
|
|
RC Collecting Tray for Filtrate |
With |
With |
Without |
|
|
Reference appearance size(mm) |
L |
2600 |
3300 |
3450 |
Before ordering, please ask for the actual installation size drawing |
W |
1550 |
2150 |
2900 |
||
H |
2540 |
2550 |
3100 |
||
Base dimension L1 x W1(mm) |
2100 x1330 |
2450 x1860 |
2715 x2420 |
|
|
Reference weight (kg) |
1210 |
2200 |
2850 |
|
|
Product Details:
ZDY-TypeDrum enrichment belt filter press dewatering machine: mainly used to treat sludge which is ready to be concentrated through rotating and concentrating(e.g. residual sludge in Method A/O). This equipment has double functions of sludge concentrating and dewatering,and its treating capacity increase more than that of old press filter.
Treatment Flowchart :
Project Site:
Our Dewatering Process
Scope of Work:
BOEEP evaluate all impending work to offer our clients the best possible cost effective solution.
Processing:
Our dewatering plants are stand alone units with associated equipment including power generating sets, automatic polymer mixing storage and dosing systems, pontoon mounted submersible mixers and feed pumps, cake conveyers and all interconnecting hoses and cables.
Our range of dewatering plants are capable of processing 20 – 85m3/h on most sludges. These plants can process up to 3.5 dry tones of biosolids per hour (17 wet tones), with a cake dryness of over 20% and separation efficiency of 99.98%
Biosolids Transport:
Processed biosolids are conveyed directly into various truck and trailer combinations for transport offsite to landfill or reuse options. All trucks comply with regulations for the transport of processed biosolids.
If you are interested in our product, contact me!
We will do our best to be of service for you !
