12V/24V 30A PWM solar charge controller for solar system
Product features:
*Built in LED driver with time and light control function
*12V,24V automatic identification
*Voltage and current regulation
*PWM control
*Current compensated load disconnection
*Automatic load reconnection
*Temperature compensation
*Monthly maintenance charge
Futures:
Adopt micro controller and dedicated software using intelligent controller
Adopt PWM charging circuit in series
Adopt industrial grade chips, can work at cold temperature
Adopt exclusive control mode to calculate to achieve the suite charge rate
Have over charge, over discharge, over load, short circuit and reverse polarity protection.
Variety of operating mode and output modes, set up simple
Product is thin light and beautiful, easy to use
Technical data:
Model |
01 |
02 |
03 |
Fixed charging current |
10A |
20A |
30A |
Rated load electric current |
10A |
20A |
30A |
System Voltage |
12V,24V,36V,48V |
||
Over-load protection |
1.3 multiple Nominal current,60 seconds or 1.6 Multiple Nominal current,5 seconds,Over-load protection movement |
||
Short circuit protection |
50A |
100A |
150A |
Transient current |
25A |
50A |
75A |
No-load loss |
<5mA |
||
Charge return route pressure drop |
≤0.26V |
||
Electric discharge return route pressure drop |
≤0.15V |
||
Overpressure protection |
17V/12V;34/24V |
||
Operating temperature |
Technical grade:-35C to +55C |
||
Promotion charging voltage |
14.6V;×2/24V;(Maintenance time:10min) |
||
Straight charging voltage |
14.4V;×2/24V;(Maintenance time:10min) |
||
Floating |
13.6V;×2/24V; |
||
Charge returns voltage |
13.2V;×2/24V; |
||
Temperature compensation |
-5mV/C/2V |
||
Undervoltage voltage |
12.0V;×2/24V; |
||
Has put the voltage |
11.2V;×2/24V; |
||
Has put the returns voltage |
12.6V;×2/24V; |
||
Control mode |
The way of PWM Pulse-duration modulation |
||
Size |
140×90.5×28.5mm |
||
Weight |
220g |
||

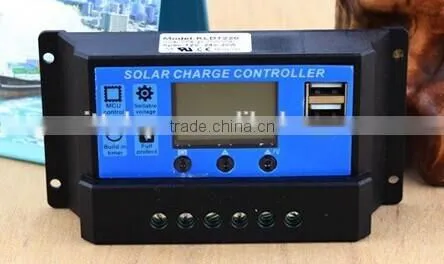

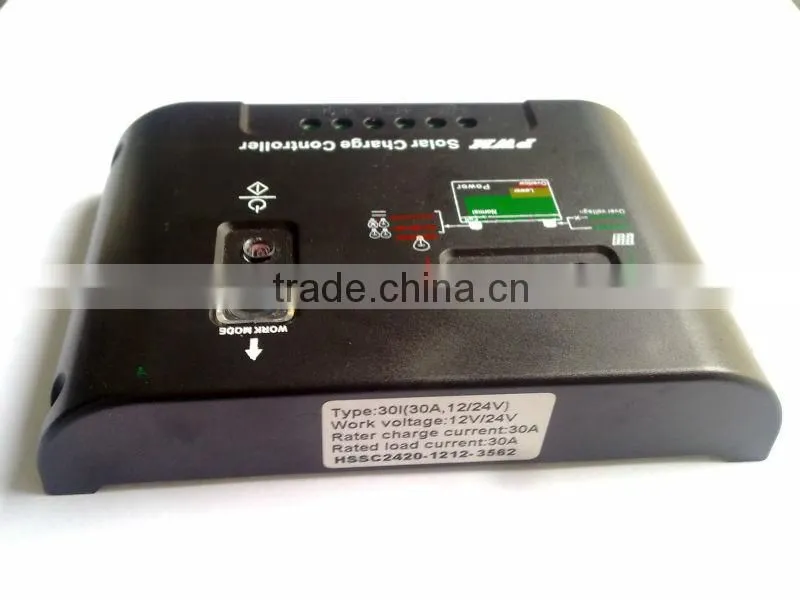

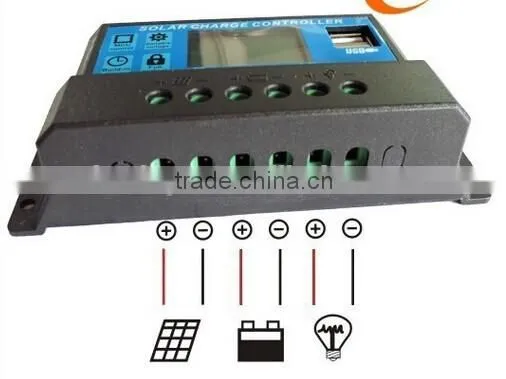

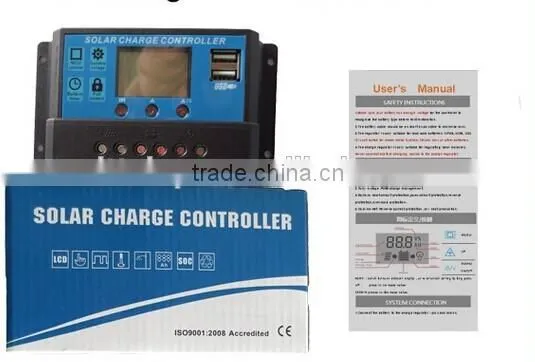

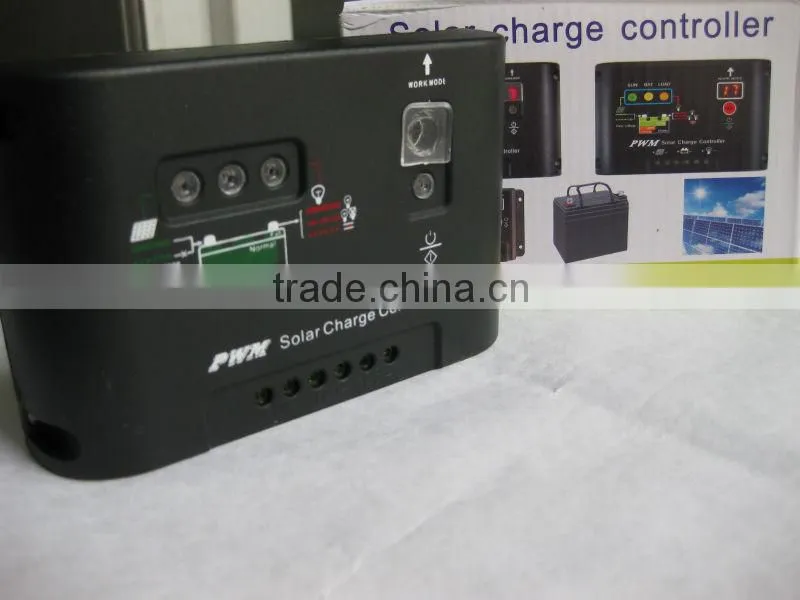

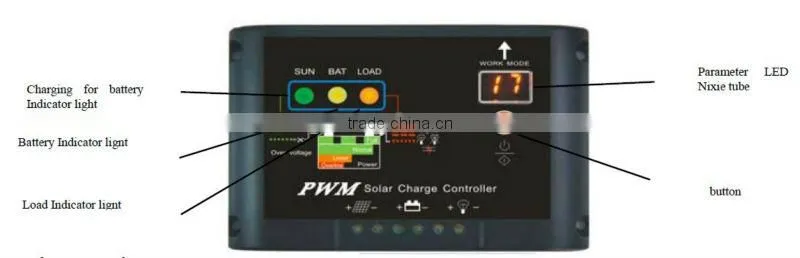

Photos detail:
