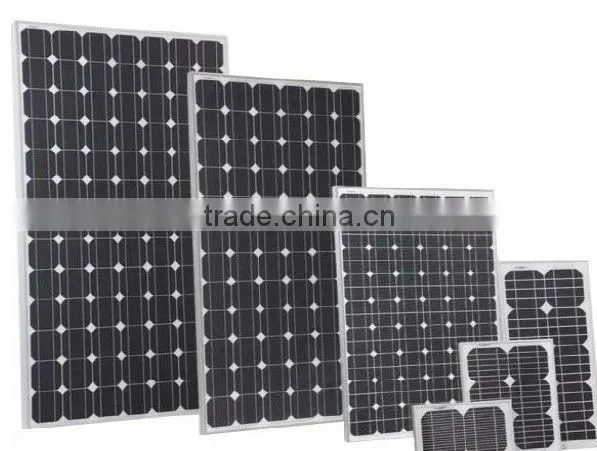

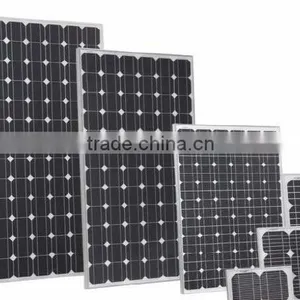

50w 80w100w150w200w250w300w Solar Panels
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Rittalups or CAP
Model Number:
50w 80w100w150w200w250w300w solar panels
Material:
Other, Monocrystalline Silicon, Monocrystalline Silicon
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100va-10kva Ups Power InverterUS$ 58 - 188MOQ: 1 Piece -
Reliable Solar Panel SupplierUS$ 0.55 - 0.7MOQ: 1 Piece
-
Solar Water Pump System for Farm Irrigation Solar SystemNegotiableMOQ: 1 Piece
-
Irrigation Farm Use 120w 150w Water Pump SolarNegotiableMOQ: 1 Piece
-
DC 12v 24v 48v Solar Irrigate Water Pump for Home Water Farm PlantNegotiableMOQ: 1 Piece
Brand Name
Rittalups or CAP
Model Number
50w 80w100w150w200w250w300w solar panels
Material
Other, Monocrystalline Silicon, Monocrystalline Silicon
Size
1950*995*50mm
Number of Cells
72 cells
Max. Power
310WP
Specifications
1)china solar panel2) 25 year 80%,10 year 90% power
3)mono module
4)professional solar panel
5)CE, Rosh, ISO Certificate
50w 80w100w150w200w250w300w solar panels
Solar panel Characteristics
l,High and stable conversion efficienly based on over 4 years professional experience
2,High reliability with guaranteed +/-10% output power tolerance
3,Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
4,Combination of high efficicncy and attractive appearance
2,High reliability with guaranteed +/-10% output power tolerance
3,Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
4,Combination of high efficicncy and attractive appearance
Quality and Safety
1,25 year 80%,10 year 90% power warranty 5 year power warranty
2,ISO9001:2000 (Quality Management system) certified factory
3,Product Quality warranty & products Liability Insurance to guarantee and user' benefits
4,Certifications TUV Intercert, CE
2,ISO9001:2000 (Quality Management system) certified factory
3,Product Quality warranty & products Liability Insurance to guarantee and user' benefits
4,Certifications TUV Intercert, CE
Temperature Coefficients
| NOCT | 45+/-2°C |
| Voltage temperature coefficient(Voc) | -0.36%/°C |
| Current temperature coefficient(Isc) | +0.033%/°C |
| Power temperature coefficient(Pmpp) | -0.44%/°C |
| Minimum power tolerance | +/-10% |
(NOCT:Nominal Operating cell Temperature)
Mechanical Data
| Solar Cells | Mono-crystalline 125*125mm |
| Front Glass | 3.2mm tempered |
| Junction Box | IP 65 rated |
| Output Cables | 900mm length cable/compliable with MC Ⅲ or MC connectors |
| Frame | Anodized aluminium |
Model |
HL-80W |
HL-85W |
HL-100W |
HL-110W |
HL-120W |
|||||||||
Nominal peak power(Wp) |
80W |
85W |
100W |
110W |
120W |
|||||||||
Nominal voltage(Vmp) |
17.2V |
17.2V |
17.2V |
17.2V |
17.2V |
|||||||||
Nominal current(Imp) |
4.65A |
4.94A |
5.81A |
6.40A |
6.98A |
|||||||||
Open circuit voltage(Voc) |
21.6V |
21.6V |
21.6V |
21.6V |
21.6V |
|||||||||
Short circuit current(Isc) |
5.14A |
5.47A |
6.61A |
6.98A |
7.50A |
|||||||||
Module efficiency |
12.5% |
13.3% |
10.2% |
11.2% |
12.2% |
|||||||||
Weight |
8kg |
8kg |
12kg |
12 kg |
12kg |
|||||||||
Dimensions(mm) |
1196*534*35 |
1483*665*35 |
||||||||||||
Model |
HL-130W |
HL-170W |
HL-175W |
HL-180W |
HL-185W |
|||||||||
Nominal peak power(Wp) |
130W |
170W |
175W |
180W |
185W |
|||||||||
Nominal voltage(Vmp) |
17.2V |
35.9V |
36.0V |
36.0V |
36.2V |
|||||||||
Nominal current(Imp) |
7.56A |
4.74A |
<, SPAN style="FONT-SIZE: 10pt">4.86A |
5.00A |
5.11A |
|||||||||
Open circuit voltage(Voc) |
21.6V |
44.5V |
44.8V |
45.0V |
45.2V |
|||||||||
Short circuit current(Isc) |
8.02A |
5.12A |
5.17A |
5.20A |
5.32A |
|||||||||
Module efficiency |
13.2% |
13.6% |
14.0% |
14.4% |
14.5% |
|||||||||
Weight |
12kg |
15kg |
15kg |
15kg |
15kg |
|||||||||
Dimensions(mm) |
1483*665*35 |
1580*808*35 |
||||||||||||
Model |
HL-190W |
HL-200W |
HL-210W |
HL-220W |
HL-230W |
|||||||||
Nominal peak power(Wp) |
190W |
200W |
210W |
220W |
230W |
|||||||||
Nominal voltage(Vmp) |
36.2V |
26.6V |
27.0V |
29.5V |
29.9V |
|||||||||
Nominal current(Imp) |
5.25A |
7.52A |
7.78A |
7.46A |
7.69A |
|||||||||
Open circuit voltage(Voc) |
45.4V |
33.2V |
33.2V |
36.8V |
37.2V |
|||||||||
Short circuit current(Isc) |
5.44A |
8.36A |
8.44A |
8.06A |
8.24A |
|||||||||
Module efficiency |
14.9% |
13.3% |
14.1% |
13.4% |
14.0% |
|||||||||
Weight |
15kg |
18kg |
18kg |
20kg |
20kg |
|||||||||
Dimensions(mm) |
1580*808*35 |
1496*1000*50 |
1652*1000*50 |
|||||||||||
| Model | HL-250W | HL-260W | HL- 270W | HL- 280W | HL-300W | |||||||||
| Nominal peak power(Wp) | 250W | 260W | 270W | 280W | 300W | |||||||||
| Nominal voltage(Vmp) | 36.0V | 36.0V | 35.6V | 36.1V | 36.13V | |||||||||
| Nominal current(Imp) | 6.9A | 7.2A | 7.5A | 7.77A | 7.80 | |||||||||
| Open circuit voltage(Voc) | 36.2V | 39.15v | 39.2v | 39.3v | 39.6v | |||||||||
| Short circuit current(Isc) | 7.8A | 8.03A | 8.13A | 8.86A | 9.16A | |||||||||
| Module efficiency | 14.8% | 15.4% | 15.9% | 16.5% | 17.2% | |||||||||
| Weight | 20.5 | 25.5 | 25.5 | 25.5 | 25.5 | |||||||||
| Dimensions(mm) | 1675*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | |
||||||||
100w mono solar panel price competitive
Usage of the solar panel:
1. for streetlight, solar lamp, garden lamp use
|
PWM solar charge controller: 12v/24v 5A 10A 15A 20A 25A 30A |
Solar panel: Mono & Poloy 12v: 10w 15w 20w 30w 40w 50w 60w 80w 100w 120w 150w 24v: 120w 150w 180w 200w 220w 250w 280w 300w |
2. For water proof, drinking water, irrigate solar water pump.

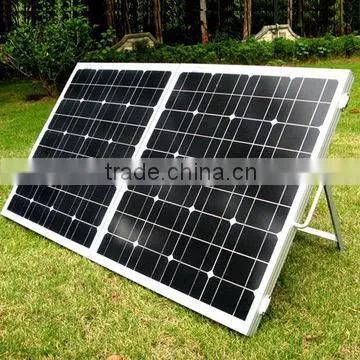

3. portable solar system for house & camping.
4. For house, factory or electric generation, on grid electricity use
5. For house & appliances use, off grid solar system with battery bank!
