Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Brackets > Reliable Solar Panel Supplier

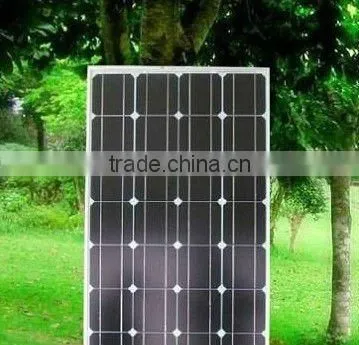

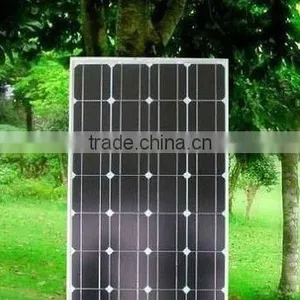

Reliable Solar Panel Supplier
US$ 0.55 - 0.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
RITTAUPS
Model Number:
many size
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Water Pump System for Farm Irrigation Solar SystemNegotiableMOQ: 1 Piece -
Irrigation Farm Use 120w 150w Water Pump SolarNegotiableMOQ: 1 Piece
-
DC 12v 24v 48v Solar Irrigate Water Pump for Home Water Farm PlantNegotiableMOQ: 1 Piece
-
Solar Farm Head 20m 500w 1000w Power Water Pump SolarNegotiableMOQ: 1 Piece
-
500w 1000w 2000w Water Pump of dc Solar Water PumpNegotiableMOQ: 1 Piece
Brand Name
RITTAUPS
Model Number
many size
Specifications
1. reliable solar panel supplier2.CE &ROHS &ISO certificate
3.various size
petitive price & high quality &fast delivery
reliable solar panel supplier
Characteristics
l,High and stable conversion efficienly based on over 4 years professional experience
2,High reliability with guaranteed +/-10% output power tolerance
3,Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
4,Combination of high efficicncy and attractive appearance
2,High reliability with guaranteed +/-10% output power tolerance
3,Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations
4,Combination of high efficicncy and attractive appearance
Quality and Safety
1,25 year 80%,10 year 90% power warranty 5 year power warranty
2,ISO9001:2000 (Quality Management system) certified factory
3,Product Quality warranty & products Liability Insurance to guarantee and user' benefits
4,Certifications TUV Intercert, CE
2,ISO9001:2000 (Quality Management system) certified factory
3,Product Quality warranty & products Liability Insurance to guarantee and user' benefits
4,Certifications TUV Intercert, CE
Temperature Coefficients
| NOCT | 45+/-2°C |
| Voltage temperature coefficient(Voc) | -0.36%/°C |
| Current temperature coefficient(Isc) | +0.033%/°C |
| Power temperature coefficient(Pmpp) | -0.44%/°C |
| Minimum power tolerance | +/-10% |
(NOCT:Nominal Operating cell Temperature)
Mechanical Data
| Solar Cells | Mono-crystalline 125*125mm |
| Front Glass | 3.2mm tempered |
| Junction Box | IP 65 rated |
| Output Cables | 900mm length cable/compliable with MC Ⅲ or MC connectors |
| Frame | Anodized aluminium |
Model |
HL-80W |
HL-85W |
HL-100W |
HL-110W |
HL-120W |
|||||||||
Nominal peak power(Wp) |
80W |
85W |
100W |
110W |
120W |
|||||||||
Nominal voltage(Vmp) |
17.2V |
17.2V |
17.2V |
17.2V |
17.2V |
|||||||||
Nominal current(Imp) |
4.65A |
4.94A |
5.81A |
6.40A |
6.98A |
|||||||||
Open circuit voltage(Voc) |
21.6V |
21.6V |
21.6V |
21.6V |
21.6V |
|||||||||
Short circuit current(Isc) |
5.14A |
5.47A |
6.61A |
6.98A |
7.50A |
|||||||||
Module efficiency |
12.5% |
13.3% |
10.2% |
11.2% |
12.2% |
|||||||||
Weight |
8kg |
8kg |
12kg |
12 kg |
12kg |
|||||||||
Dimensions(mm) |
1196*534*35 |
1483*665*35 |
||||||||||||
Model |
HL-130W |
HL-170W |
HL-175W |
HL-180W |
HL-185W |
|||||||||
Nominal peak power(Wp) |
130W |
170W |
175W |
180W |
185W |
|||||||||
Nominal voltage(Vmp) |
17.2V |
35.9V |
36.0V |
36.0V |
36.2V |
|||||||||
Nominal current(Imp) |
7.56A |
4.74A |
<, SPAN style="FONT-SIZE: 10pt">4.86A |
5.00A |
5.11A |
|||||||||
Open circuit voltage(Voc) |
21.6V |
44.5V |
44.8V |
45.0V |
45.2V |
|||||||||
Short circuit current(Isc) |
8.02A |
5.12A |
5.17A |
5.20A |
5.32A |
|||||||||
Module efficiency |
13.2% |
13.6% |
14.0% |
14.4% |
14.5% |
|||||||||
Weight |
12kg |
15kg |
15kg |
15kg |
15kg |
|||||||||
Dimensions(mm) |
1483*665*35 |
1580*808*35 |
||||||||||||
Model |
HL-190W |
HL-200W |
HL-210W |
HL-220W |
HL-230W |
|||||||||
Nominal peak power(Wp) |
190W |
200W |
210W |
220W |
230W |
|||||||||
Nominal voltage(Vmp) |
36.2V |
26.6V |
27.0V |
29.5V |
29.9V |
|||||||||
Nominal current(Imp) |
5.25A |
7.52A |
7.78A |
7.46A |
7.69A |
|||||||||
Open circuit voltage(Voc) |
45.4V |
33.2V |
33.2V |
36.8V |
37.2V |
|||||||||
Short circuit current(Isc) |
5.44A |
8.36A |
8.44A |
8.06A |
8.24A |
|||||||||
Module efficiency |
14.9% |
13.3% |
14.1% |
13.4% |
14.0% |
|||||||||
Weight |
15kg |
18kg |
18kg |
20kg |
20kg |
|||||||||
Dimensions(mm) |
1580*808*35 |
1496*1000*50 |
1652*1000*50 |
|||||||||||
| Model | HL-250W | HL-260W | HL- 270W | HL- 280W | HL-300W | |||||||||
| Nominal peak power(Wp) | 250W | 260W | 270W | 280W | 300W | |||||||||
| Nominal voltage(Vmp) | 36.0V | 36.0V | 35.6V | 36.1V | 36.13V | |||||||||
| Nominal current(Imp) | 6.9A | 7.2A | 7.5A | 7.77A | 7.80 | |||||||||
| Open circuit voltage(Voc) | 36.2V | 39.15v | 39.2v | 39.3v | 39.6v | |||||||||
| Short circuit current(Isc) | 7.8A | 8.03A | 8.13A | 8.86A | 9.16A | |||||||||
| Module efficiency | 14.8% | 15.4% | 15.9% | 16.5% | 17.2% | |||||||||
| Weight | 20.5 | 25.5 | 25.5 | 25.5 | 25.5 | |||||||||
| Dimensions(mm) | 1675*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | 1920*1000*50 | |
||||||||
100w mono solar panel price competitive
Usage of the solar panel:
1. for streetlight, solar lamp, garden lamp use
|
PWM solar charge controller: 12v/24v 5A 10A 15A 20A 25A 30A |
Solar panel: Mono & Poloy 12v: 10w 15w 20w 30w 40w 50w 60w 80w 100w 120w 150w 24v: 120w 150w 180w 200w 220w 250w 280w 300w |
2. For water proof, drinking water, irrigate solar water pump.
3. portable solar system for house & camping.
4. For house, factory or electric generation, on grid electricity use
5. For house & appliances use, off grid solar system with battery bank!
Please don't hesitate to contact me for further information!!
Contact: Miss Fu
Skype: rittalups5
Tel: +86(020)34633057
Mobile:+86-13580432763
QQ: 2355552470
Trademanager: cn1000486488
GuangZhou HeLiZhanChuang Electric Technology Co., Ltd. Is a manufacturer and trader With over 10 years experience. Owning electric production base with the factory area of about 5000 square meters and is a modern one with a large scale. We manufacture many kinds of electrical products including Off-Line UPS, Line Interactive UPS, On-Line UPS, Solar Inverters, Power Inverters, Stabilizers, Solar Batteries and VRLA Batteries which are extensively applied in fields of finance, securities, energy, telecommunications, transportation, communications, traffic, industrial enterprises, and home usage by personal purpose. Our aim is provide reliable quality products and perfect post-service. We are keeping very good relationships with clients around the world. And our products are approved by various buyers and are enjoying a good reputation among them.
