Based on more than 30 years separation technical experience, Fuyi Machniery grew up to be one of the most famous centrifuge manufacture in China. Chinese " Tubular centrifuge separator National Standardization is drafted by our company.we promised supply customers the best made in China, and we committe to provide customers with cost-effective production solutions.

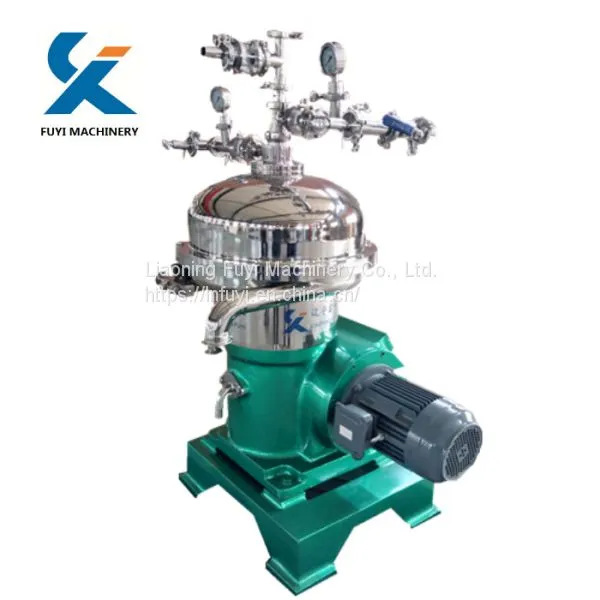

FUYI machinery makes an intensive study of coconut manufacturing process and using disc-stack centrifuge instead of traditional filter cloth in order to increase throughput. Two kinds of proportion liquids are separated by centrifugal force as coconut oil and moisture. Through the processing of centrifuges separated, the moisture content of oil dropped to less than 0.03%, and extremely reduce the time of virgin coconut oil extraction process, thus increase coconut oil output.
Feature:
•Full automation possible with PLC automatic control panel.
•Centrifugal separation requiring no filter media.
•High reliability drive train system backed by delivery of over 1,000 units a year.
•Bowl design with superior separation performance and with good response to discharge loads.
•Pilot valve regulates total/partial discharge of solids.
•Super partial discharger (option) minimizes liquid loss and maximizes thickening of solid
•fraction for discharge.
•Vibration-proof design realizes long working life.
•Full automation possible with PLC automatic control panel
Application Scope:
• Beverage: Wine, tea, coffee and beer.
• Juices: Vegetable juices, various kinds of fruit juices
• Vegetable oil: Coconut oil, colza oil, cotton seed oil, corn oil, palm oil, soybean oil, peanut oil, rice oil, sesame oil, safflower oil,
• Animal oil: Fish oil and other animal oil.
• Mineral oil: Fuel oil, diesel oil, lubrication oil, transformer oil and waste oils.
Disk Centrifuge machine Main Parameter
Model |
Bowl Speed(rpm) |
Capacity(Per Hour) |
Running Load(Watts) |
Dimensions, Overall (mm) |
||
Width |
Front-to-Back |
Height |
||||
250 |
7300 |
500 |
4 |
850 |
850 |
1200 |
400 |
7038 |
1500 |
7.5 |
1500 |
1100 |
1550 |
500 |
6600 |
5000 |
15.5 |
1772 |
1500 |
1855 |
550 |
6200 |
8000 |
18.5 |
1970 |
1560 |
1970 |
700 |
4500 |
35000 |
55 |
2097 |
1897 |
2384 |
•12 months long guarantee period from machine arriving date.
•Abundant spare parts in stock are available to provide.
•Our technicians could be dispatched for overseas service.
•24 hours technical consultation.
•Routine tracing till the machine work properly will be done timely.
•We will remind you to do the normal maintenance.
•Your suggestions or any comments & reflection would be treated in priority.
•Your workers can get training easily by net video.
Hot line :
Hot line: 8618104024665 (whatsapp)
Wechat: molly3469
Skype: live:molly3469

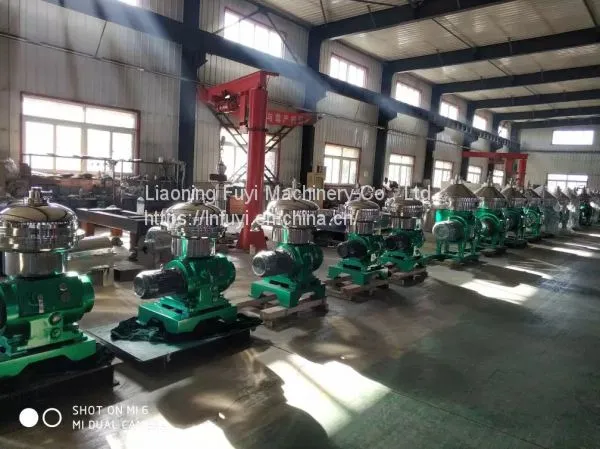

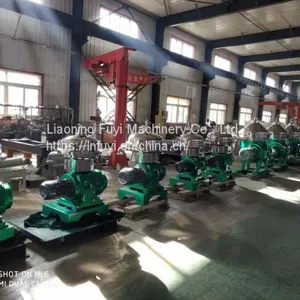

Our Workshop
Our Warehouse
Our Office
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Nowadays we have cooperated with various products manufacturer to develop the technics and machinery advancement .
Our foreign coopertives from USA, Russia, Europe, Africa, Southeast Asia, South Asia,East Asia etc.
Philippines Friend
Generally it is 5-10 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
