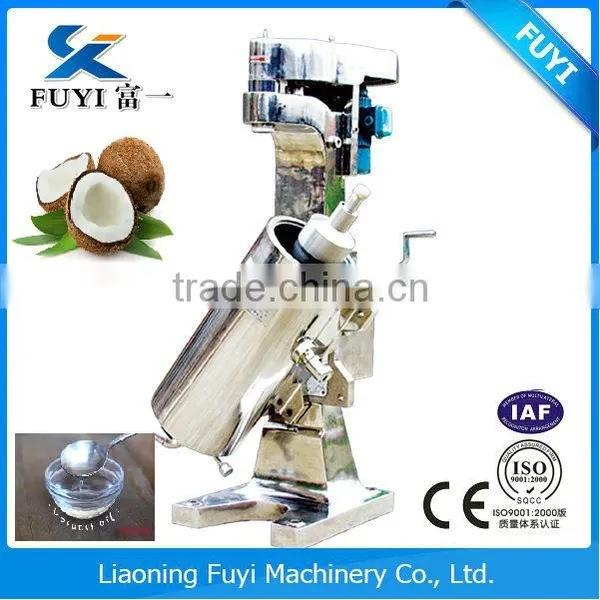

FUYI High speed tubular separator for extracting VCO
- 50 Unit / Units per Month
- Dalian port
- T/T L/C D/P D/A Credit Card PayPal
- Plastic Packaging Film Heat Seal Tester/Laboratory Heat Sealer / five points heat seal tester
- (ASTM D882) Electronic Tensile measurement
- (ASTM D882) tensile test
- Electronic Tensile Strength Testing Machine desktop tensile testing machine
- High quality cof tester (GM-4)
- GHH Multifunctional Universal Tensile Tester for peeling, bonding, sealing puncture and compression test.
Product Details
Brand Name: | Fuyi | Model Number: | GF | Type: | Separating Plant |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 24 Months |
Weight: | 500kg~2200kg | Dimension(L*W*H): | according to the model | Condition: | New |
Product Type: | Other | Voltage: | 380V | Power(W): | 4kw~55kw |
Product Description
extract virgin coconut oil
Coconut oil or Copra oil is an edible oil extracted from the kernel or meat of matured coconuts harvested from the coconut palm (Cocos nucifera). It has various applications in food, medicine, and industry. Because of its high saturated fat content it is slow to oxidize and, thus, resistant to rancidification, lasting to two years without spoiling.
Many health organizations advise against the consumption of high amounts of coconut oil due to its high levels of saturated fat.
Coconut oil can be extracted through "dry" or "wet" processing. Centrifugal separation is used in "wet" processing for extracting the coconut crude oil. Generally the model GF series (3 phase, liquid-liquid-solid separation) of FUYI tubular separators be used in order to achieve the purest virgin coconut oil.
Fuyi tubular VCO separator is a high-speed centrifuge with strong separating capacity(up to approximately 20,000 r/min), the separation factor is approximately 16000. It is designed to separate low percentages (<0.5%) of suspended solids, and to separate two immiscible liquids of differing densities. Finally the moisture content of oil is <0.1%
Tubular separator is an excellent replacement for many traditional filter and membrane applications due to its high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.
The tubular virgin coconut oil separator from our company are widely used for VCO production in world.It also can be used in the areas below.
Technical Parameters
Model | Bowl Speed(rpm) | Capacity (NominalLiters) | Running Load(Watts) | Dimensions, Overall (mm) | ||
Width | Front-to-Back | Height | ||||
45 | 10000~28000 | 0.4 | 0.4 | 500 | 420 | 760 |
75 | 19000 | 2.2 | 1.5 | 760 | 450 | 1120 |
105 | 16300 | 6 | 2.2 | 840 | 500 | 1600 |
125 | 15000 | 8 | 3.0 | 900 | 550 | 1600 |
150 | 14000 | 10 | 3.0 | 1020 | 600 | 1600 |
Of course, you can use the "disc stack centrifuge" and "tubular separator" at same time to gain the puriest virgin coconut oil, you may click on the image to know more about disc centrifuge.
In addition, we also provide a series of complete equipments for processing virgin coconut oil from dehusking of fresh coconut to bottle oil and labeling in the end. Welcome contact us to get more detail information.
TEL:0086+419+3225916
Tubular separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats.
The coconut crude oil is fed through the bottom, the bowl of the centrifuge rotates around its axis and forms a strong centrifugal forceand the centrifugal force separates the suspension into liquids and solid. Heavy solid is deposited on the inner wall of the bowl, and forms the sludge, then it will be discharged by manual after the machine stops. The clear liquid flows out of outlet from the top of the bowl.
The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise. The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.
•24 months long guarantee period from machine arriving date.
•Abundant spare parts in stock are available to provide.
•Our technicians could be dispatched for overseas service.
•24 hours technical consultation.
•Routine tracing till the machine work properly will be done timely.
•We will remind you to do the normal maintenance.
•Your suggestions or any comments & reflection would be treated in priority.
•Your workers can get training easily by net video.
1. How can we visit your factory?
If you come from abroad, air to Shenyang taoxian airport; if you come from domestic city, train directly to Liaoyang, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 30 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfalia, Flottweg, etc.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have ODM serive?
Yes, we do, as long as you provide us your brand.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
10. What payment mode you accept?
TT and LC at sight.
11. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Packing Details : Standard export wooden case
Delivery Details : 5-60days after order by quantity
