Specifications
DS Jaw Crusher1. Any demanded crushing application
2.Robust and Assembly Design
3.Bring Your Crushing Costs Down
4.Capac
Designed to Bring Your Crushing Costs Down
1.Tired of repairing your jaw crusher's foundation? Special rubber dampers and stoppers allow the crusher to move vertically and longitudinally while preventing wear and subsequent damage to the crusher's foundation;
2. The most durable jaw plates and bearings

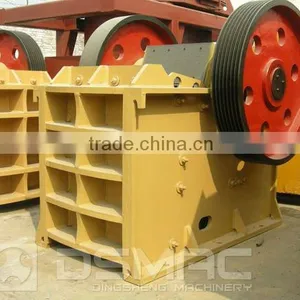

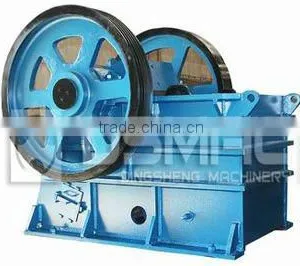

PE Jaw Crusher designed for long life service
Found in 1997, DSMAC Group is a leading manufacturer of crushing equipment and wear-resistant materials in China. It mainly specializes in producing crushing, feeding and screening equipment, including stone crusher, mobile crusher, and sandstone aggregate production line.
PE Jaw Crusher is suitable for
1. Primary and secondary crushing
2. Compression strength is no more than 320Mpa
3. Any demanded crushing application
4. Hardest rock and recycle materials
Major Advantages of Jaw Crusher
1. Effectively solves the problem of high operation rate and little maintenance time caused by low output of limestone crusher.
2. Can complete the crushing work of large-sized limestone.
3. The blending of the two materials is even and the mixing quantity of the desulfurized limestone is greatly increased.
4. The electricity needed is reduced.
5. The granularity of the wastes is small.
6. Effectively improves the labor strength and the working environment of the workers.
Robust and Assembly Design of PE Jaw Crusher
DSMAC PE series crusher is premium class crushers due to their design as well as to the materials that are used to produce them, so as to ensure the highest possible functionality and reliability, without any compromises. Each model is tested virtually for stress, strain, shock, deformation, thermal loading, vibration and noise under a wide range of load conditions. The result is exceptional reliability.
The Right Cavity Design of PE Jaw Crusher
How to improve the capacity? The cavity is the heart and only purpose of the jaw crusher. The right feed opening width to depth ratio ensures minimum blockage and eliminates unnecessary height from the crusher. The tooth profiles as well as the thickness of the jaws are optimized and combined with the right manganese steel alloys to maximize throughput and minimize operating costs.
PE Jaw Crusher :Designed to Bring Your Crushing Costs Down
1.Tired of repairing your jaw crusher's foundation? Special rubber dampers and stoppers allow the crusher to move vertically and longitudinally while preventing wear and subsequent damage to the crusher's foundation;
2. The most durable jaw plates and bearings.
PE Jaw Crusher : Little Dust and Low Noise Level
Equipped with dust-cleaning apparatus water tank, in order to reduce the noise, damping layer is filled in the interlayer between the upper body and the lower body, which combines to create safer and cleaner working environment.
specification of PE Jaw Crusher
| Type | Maximum Feed (mm) |
Adjusting Range(mm) | Production Capacity(t/h) | Spindle Speed (r/min) |
Motor Power (kw) |
Dimensions (Length*Wide*Height) (mm) |
Weight (excluding motor) (t) |
| PE250*400 | 210 | 20-80 | 10-20 | 310 | 15 | 1108*1142*1392 | 2.8 |
| PE400*600 | 340 | 40-100 | 25-65 | 275 | 30 | 1700*1732*1653 | 6.5 |
| PE500*750 | 425 | 50-100 | 45-100 | 275 | 55 | 2050*1860*2145 | 10.2 |
| PE600*900 | 500 | 65-160 | 50-120 | 250 | 55-75 | 2792*2168*2250 | 15.5 |
| PE750*1060 | 630 | 80-140 | 52-180 | 250 | 110 | 2660*2430*2800 | 28 |
| PE900*1060 | 685 | 90-150 | 100-250 | 250 | 110 | 2970*2556*2800 | 31 |
| PE900*1200 | 750 | 95-165 | 140-260 | 200 | 132 | 3380*2870*3330 | 50 |
| PE1000*1200 | 850 | 150-265 | 315-340 | 200 | 132 | 3480*2876*3330 | 50.6 |
| PE1200*1500 | 1020 | 150-300 | 400-800 | 180 | 200 | 4200*3300*3500 | 78.6 |
| PE1500*1800 | 1200 | 220-350 | 500-980 | 180 | 350 | 5100*3740*4937 | 124 |
| PE1600*2100 | 1250 | 175-300 | 800-1300 | 160 | 450 | 5220*4990*4850 | 170 |
| PEX750*150 | 120 | 18-48 | 10-16 | 320 | 15 | 1220*1480*1180 | 3.5 |
| PEX750*250 | 210 | 25-60 | 10-22 | 300 | 22 | 1400*1617*1412 | 4.9 |
| PEX1000*250 | 210 | 25-60 | 10-32 | 330 | 37 | 1580*1992*1380 | 7.0 |
| PEX1200*250 | 210 | 25-60 | 13-38 | 330 | 37 | 1530*2192*1380 | 7.7 |
| PEX1300*300 | 250 | 20-90 | 16-100 | 300 | 75 | 1880*2320*1725 |
About DSMAC

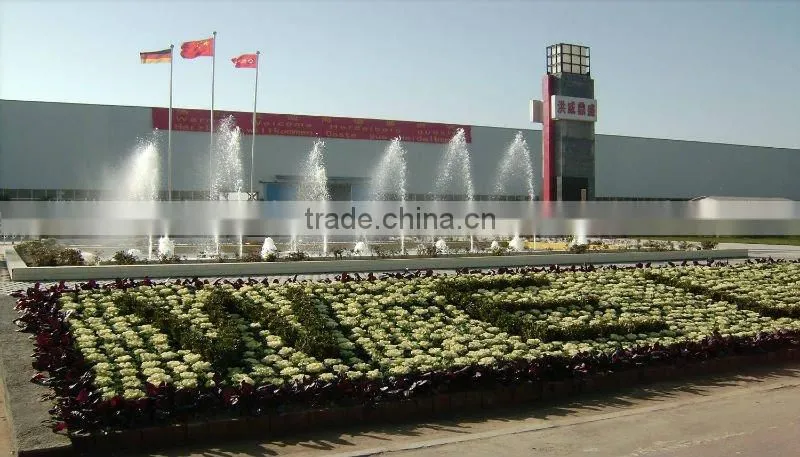

Zhengzhou Dingsheng Engineering Technology Co., Ltd. (DSMAC Group) is specialized in researching and manufacturing mining equipment, construction equipment and their spare parts. DSMAC pursues excelsior on product quality and have approved ISO9001 and SGS. We have perfect after-sale service network and could offer rapid maintenance service on demand. Every year, DSMAC can turn out 30,000 tons of crusher parts and 1500 sets of crushers.
Treasure our clients, bring them wealth and happiness!
