Specifications
Capacity: 15-1000t/hMax feeding size:369mm
Shipping ports:Shanghai, Qingdao or Tianjin
Delivery: 15-30 days
Spring cone crusher can crush materials with middle or above hardness and it has been widely used. Each model has a variety to choose crushing chamber. By selecting a different type of crushing chamber and eccentricity and easily meet different production needs. In general, the standard applicable to break: medium suitable for fine break: short head type is applied to the thickness of the break. Because of its inherent flexibility; cone crusher will be able to cope with most of the production needs of a changing future.
Working principle of spring cone crusher
When it is working, at the effect of the horizontal shaft and the bevel gear, the eccentric sleeve rotates driven by the electromotor. The axial lead make cranking Motion forced by the eccentric sleeve, thus the broken wall getting close to the surface from time to time so that the mineral break under the squeezing and bend.
Application of spring cone crusher
The spring cone crusher is applicable for crushing various rocks and ores with hard or medium hardness. The spring cone crusher is widely used in metallurgical, construction, utilities, transport, chemicals, building materials industry, for breaking hard, medium hardness of the above various ores and rock. Ore crushing chamber is determined by the type of use: standard applied to medium crushing, medium suitable for crushing and the short head type is applicable to ultra-fine crushing.
Specification of Spring cone crusher
| els | Max Feeding Size(mm) | Size of Exceed Material(mm) | Crushing Capacity(m3/h) | Main Motor | Lubrication station specifications(L/min) | Cooling water consumption | Weight(excluding Electric Motor)(t) | |
| Type and spec | Power(kw) | |||||||
| PYT-B900 | 115 | 15-50 | 50-90 | Y315S-8 | 55 | 16 | 1.2 | 11 |
| PYT-Z900 | 60 | 15-20 | 20-65 | |||||
| PYT-D900 | 40 | 3-13 | 15-50 | |||||
| PYT-B1200 | 145 | 20-50 | 110-168 | Y315L2-8 | 110 | 63 | 3 | 25 |
| PYT-Z1200 | 100 | 8-25 | 42-135 | |||||
| PYT-D1200 | 50 | 3-15 | 18-105 | |||||
| PYT-B1750 | 215 | 25-60 | 280-480 | Y355M4-8 | 160 | 125 | 6 | 50.3 |
| PYT-Z1750 | 185 | 10-30 | 115-320 | |||||
| PYT-D1750 | 85 | 5-15 | 75-230 | |||||
| PYT-B2200 | 310 | 30-60 | 590-1000 | JSQ1510-12 | 280 | 125 | 6 | 80.5 |
| PYT-Z2200 | 230 | 10-30 | 200-580 | |||||
| PYT-D2200 | 100 | 5-15 | 120-340 | |||||

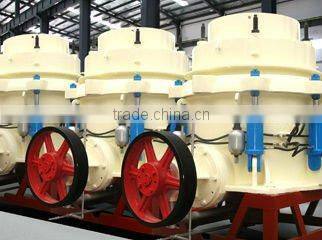

Pictures of spring cone crusher
