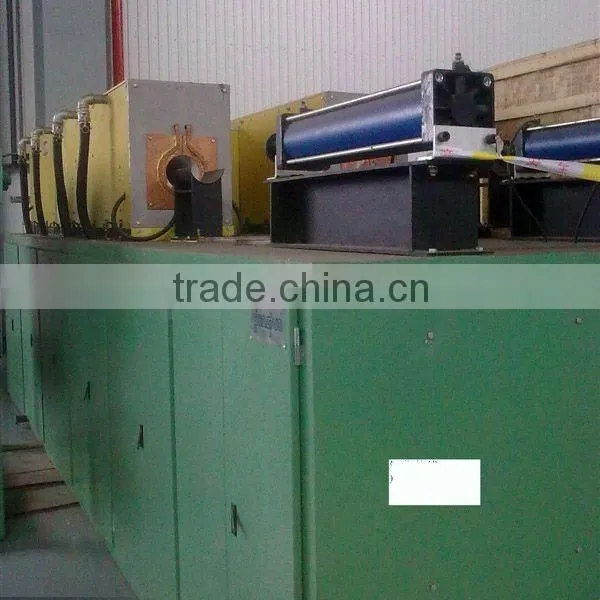

100 KW Heat Treating Furnace , Electric Heat Tratment Furnace for Metal
US$ 1,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Induction Furnace, induction furnace
Usage:
Heat Treatment Furnace
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KGPS-0.2T Scrap Iron Induction Melting Furnace With Lower ConsumptionUS$ 1,000 - 50,000MOQ: 1 Set -
(50KG-10000KG)Metal Induction Melting Furnace for SaleUS$ 1,000 - 50,000MOQ: 1 Set
-
300kg Copper Melting Equipment,copper Furnace ManufacturerUS$ 100 - 80,000MOQ: 1 Set
-
KGPS-2T Lead Smelting Furance /equipmentUS$ 1,000 - 50,000MOQ: 1 Set
-
KGPS-250kg Copper Smelting EquipmentUS$ 1,000 - 50,000MOQ: 1 Set
Condition
New
Type
Other, Induction Furnace, induction furnace
Usage
Heat Treatment Furnace
Place of Origin
Guangdong, China
Brand Name
RongDongSheng, Rond Dong Sheng
Model Number
KGPS--100
Introduction and usage:

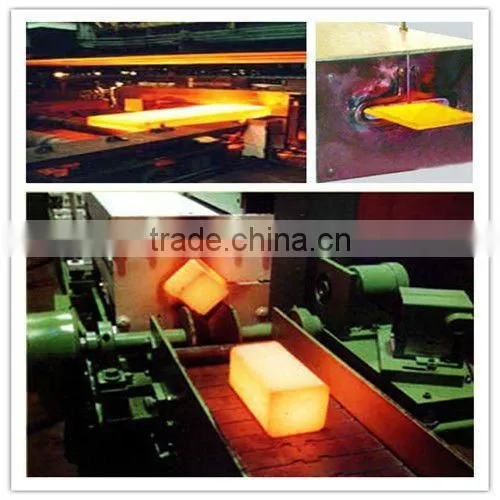

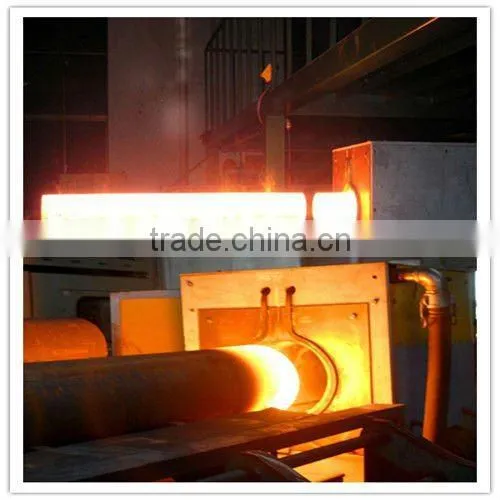

Intermediate frequency heating furnace is applicable to heating treatment prior to forging , extrusion , hot rolling , sintering , tube-bending forming of metal material . Widely be use for large workpiece with strong power, can’t be replaced by IGBT soil state intermediate frequency equipment.
Characteristics and feature:
1.It is well know and best method of heating treatment what metal material adopt for medium frequency heating.
2.Heating fast, reduce production cost , high efficiency and very easy to operator;
3.Lower pollution , conforming to environmental standard requirement ;
4.Fully automatic to make sure product quality and achieve semi and fully automatic
Main Models and Technical Parameters:
| Equipment Type | Power input(Three-phase Four- wire 50/60Hz) | Power Output | Output per hour (KG) | |||||||
| Rating power (KW) | Inlet line Voltage (V) | Inlet line Current (A) | DC Current (A) | DC Voltage (V) | IF Voltage (V) | IF frequency (KHZ) | Steel (KG) |
Copper (KG) |
Aluminum (KG) |
|
| KGPS--50 | 50 | 380 | 80 | 100 | 500 | 750 | 1--8 | 125 | 282 | 234 |
| KGPS--100 | 100 | 380 | 160 | 200 | 500 | 750 | 1--8 | 250 | 564 | 468 |
| KGPS--160 | 160 | 380 | 256 | 320 | 500 | 750 | 1--8 | 400 | 902 | 749 |
| KGPS--200 | 200 | 380 | 320 | 400 | 500 | 750 | 1--8 | 500 | 1128 | 936 |
| KGPS--250 | 250 | 380 | 400 | 500 | 500 | 750 | 1--8 | 625 | 1410 | 1170 |
| KGPS--400 | 400 | 380 | 640 | 800 | 500 | 750 | 1--8 | 1000 | 2256 | 1872 |
| KGPS--500 | 500 | 380 | 800 | 1000 | 500 | 750 | 1--8 | 1250 | 2820 | 2340 |
| KGPS--750 | 750 | 380 | 1200 | 1500 | 500 | 750 | 0.4--8 | 1875 | 4230 | 3510 |
| 660 | 680 | 850 | 880 | 1300 | ||||||
| KGPS--1000 | 1000 | 380 | 1600 | 2000 | 500 | 750 | 0.2--8 | 2500 | 5640 | 4680 |
| 660 | 912 | 1140 | 880 | 1300 | ||||||
| KGPS--1500 | 1500 | 380 | 2400 | 3000 | 500 | 750 | 0.2--1 | 3750 | 8460 | 7020 |
| 660 | 1360 | 1700 | 880 | 1300 | ||||||
| KGPS--2000 | 2000 | 660 | 1850 | 2273 | 880 | 1300 | 0.2--1 | 5000 | 11280 | 9360 |
| 1250 | 1000 | 1212 | 1650 | |||||||
| KGPS--2500 | 2500 | 660 | 2310 | 2840 | 880 | 1300 | 0.2--0.5 | 6250 | 14100 | 11700 |
| 1250 | 1257 | 1515 | 1650 | |||||||
| KGPS--3500 | 3500 | 660 | 3260 | 4000 | 880 | 1300 | 0.2--0.5 | 8750 | 19740 | 16380 |
| 1250 | 1710 | 2100 | 1650 | |||||||
| Furnace temperature:1. Steel 1200 °C 2.Copper 900 °C 3.Aluminum 500 °C | ||||||||||
| Power consumption per ton of material: 1. Steel 350--550KW 2.Copper 150--300KW 3.Aluminum 180--400KW | ||||||||||
Remark: Power consumption per ton of material relates to power, frequency, temperature, workpiece appearance and density, body temperature and other element
