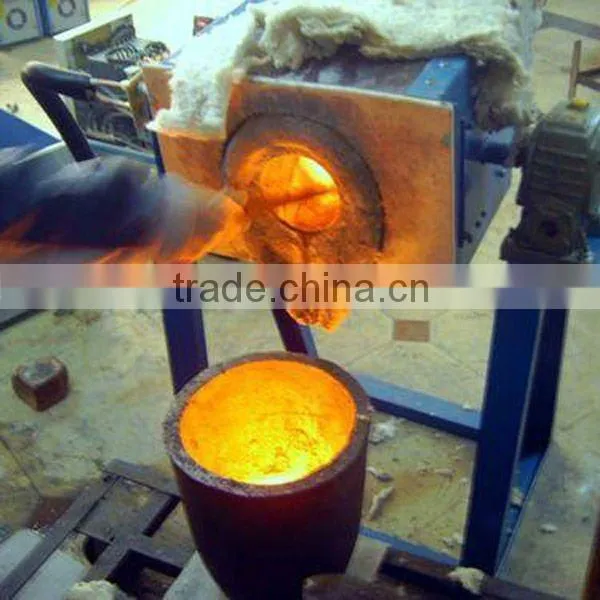

KGPS-50KG Silver and Gold Melting Furnace

KGPS-50KG Silver and Gold Melting Furnace thumbnail-1
KGPS-50KG Silver and Gold Melting Furnace photo-1
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Induction Furnace, induction furnace
Usage:
Melting Furnace
Contact Supplier Request Quote Chat Now
Foshan Rongdongsheng Furnace Industry Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Induction Furnace, induction furnace
Usage Melting Furnace
Place of Origin Guangdong, China
Brand Name Rongdongsheng
Model Number KGPS--0.05T

Introduction and application

Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper ,zinc ,tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.



Performance Characteristics:

1.Zero-voltage scanning soft , available for start or stop at any time under any state without impact on power supply;

2.Speedy melting, low production cost , low pollution, conforming to environmental protection requirement;

3.Melting directly from low temperature, available for fully emptying of solution , easy change of category of melting material;

4.Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;

5.Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;

6.Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; power supply with fault diagnosis facilitating service.



Techinical Parameter:

Equipment Type Furnace Capaicty Power   input(Three-phase Four- wire 50/60Hz) Power Output Melting Time
    (Minutes)		 Power consumption per ton of material
    (KW)
Rating power
    (KW)		 Input   Voltage
    (V)		 Input   Current
    (A)		 DC Current
    (A)		 DC Voltage
    (V)		 IF Voltage
    (V)		 IF frequency
    (KHZ)		 Steel
    (KW)		 Iron
    (KW)		 Copper
    (KW)		 Brass
    (KW)		 Aluminum
    (KW)
KGPS--0.05T 50KG 50 380 80 100 500 750 1-2.5 20-60 850 800 450 420 470
KGPS--0.1T 100KG 100 380 160 200 500 750 1-2.5 20-60 800 750 450 400 460
KGPS--0.2T 200KG 160 380 256 320 500 750 1-2.5 30-70 750 700 440 390 450
KGPS--0.25T 250KG 160 380 256 320 500 750 1-2.5 30-70 750 700 440 380 440
KGPS--0.3T 300KG 200 380 320 400 500 750 1-2.5 30-70 700 650 430 380 430
KGPS--0.5T 500KG 250 380 400 500 500 750 1-2.5 30-70 650 600 430 370 420
KGPS--0.75T 750KG 400 380 640 800 500 750 1-2.5 40-70 630 580 400 350 410
KGPS--1T 1Ton 600 380 960 1200 500 750 0.7-1 40-70 600 560 390 340 400
KGPS--1.5T 1.5Ton 1000 380 1600 2000 500 750 0.7-1 50-70 580 530 380 330 380
660 912 1140 880 1300
KGPS--2T 2Ton 1250 380 2000 2500 500 750 0.5-1 50-70 560 520 370 320 360
660 1140 1430 880 1300
KGPS--3T 3Ton 1500 380 2400 3000 500 750 0.5-1 50-80 530 510 350 310 350
660 1370 1710 880 1300
KGPS--5T 5Ton 2500 380 4000 3200 780 1170 0.3-1 60-90 510 490 340 290 330
660 2272 2840 880 1300
KGPS--10T 10Ton 5000 660 4560 5700 880 1300 0.3-1 70-100 500 450 320 260 320
Furnace   temperature:1.Steel 1650°C   2.Iron   1450°C     3.Copper 1150 °C     4.Brass 1000 °C   5. Aluminum 700 °C       6. Zinc 400 °C
Remark:
*1.Melting time and power consumption/ton is important to equipment   power, raw material shape and weight, operator's skill level and other   elements;
*2.Power paramenters shall be subject to steel   melting; lower power is required by melting of copper, aluminum, zinc or   other material with low melting point; please consult Rongdongsheng Technical   Department for specific data
*3.Configuration :an intermediate frequency power   supply,a capacitor cabinet, an overturn control cabinet, body, two sets of   reduction boxes and supports, two water cooling cables, etc
* 4.The above data is of standard model. We also   provide customized non-standard products with different power or melting   speed.



Technical and After-Service

We provide not only excellent equipments but also perfect after-sale service as below:

1. We also provide customized. Can custom made non-standard products with different power and smelt time according customer requirement.

2. All favorable price will to provide various spare parts depend on your order/

3. Moreover, we are kindly help customer to installing and testing the equipment, and provide the install and operate illustrated books .

4. Free technical training , technical consult

5. Provide long-term technical services and follow-up service.

6. Product quality guarantee period for a yea after buy equipment.

 KGPS-50KG silver and gold melting furnace



   KGPS-50KG silver and gold melting furnace
