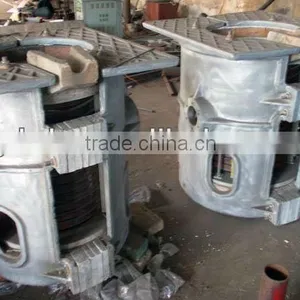

Help Center500kg Aluminum Alloy Induction Melting Furnace
Related Products
-
KGPS-50KG Silver and Gold Melting FurnaceUS$ 1,000 - 5,000MOQ: 1 Set -
KGPS-200KG Induction Steel Melting Furnace , Induction Furnace Melting SteelUS$ 1,000 - 80,000MOQ: 1 Set
-
500kg 250kw Electric Steel Induction Melting FurnaceUS$ 1,000 - 80,000MOQ: 1 Set
-
KGPS-100KG Aluminum , Copper , Steel , Gold and Silver Smelting FurnaceUS$ 1,000 - 50,000MOQ: 1 Set
-
KGPS-50KG Induction Smelting Furnace , Oven , Equipment for MetalUS$ 1,000 - 10,000MOQ: 1 Set
Introduction and application
Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper ,zinc ,tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
Performance Characteristics:
1.Zero-voltage scanning soft , available for start or stop at any time under any state without impact on power supply;
2.Speedy melting, low production cost , low pollution, conforming to environmental protection requirement;
3.Melting directly from low temperature, available for fully emptying of solution , easy change of category of melting material;
4.Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5.Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
Equipment Type & Technical Parameters:
| Equipment Type | Furnace Capaicty | Power input(Three-phase Four- wire 50/60Hz) | Power Output | Melting Time (Minutes) | |||||
| Rating power (KW) | Input Voltage (V) | Input Current (A) | DC Current (A) | DC Voltage (V) | IF Voltage (V) | IF frequency (KHZ) | |||
| KGPS--0.05T | 50KG | 50 | 380 | 80 | 100 | 500 | 750 | 1-2.5 | 20-60 |
| KGPS--0.1T | 100KG | 100 | 380 | 160 | 200 | 500 | 750 | 1-2.5 | 20-60 |
| KGPS--0.2T | 200KG | 160 | 380 | 256 | 320 | 500 | 750 | 1-2.5 | 30-70 |
| KGPS--0.25T | 250KG | 160 | 380 | 256 | 320 | 500 | 750 | 1-2.5 | 30-70 |
| KGPS--0.3T | 300KG | 200 | 380 | 320 | 400 | 500 | 750 | 1-2.5 | 30-70 |
| KGPS--0.5T | 500KG | 250 | 380 | 400 | 500 | 500 | 750 | 1-2.5 | 30-70 |
| KGPS--0.75T | 750KG | 400 | 380 | 640 | 800 | 500 | 750 | 1-2.5 | 40-70 |
| KGPS--1T | 1Ton | 600 | 380 | 960 | 1200 | 500 | 750 | 0.7-1 | 40-70 |
| KGPS--1.5T | 1.5Ton | 1000 | 380 | 1600 | 2000 | 500 | 750 | 0.7-1 | 50-70 |
| 660 | 912 | 1140 | 880 | 1300 | |||||
| KGPS--2T | 2Ton | 1250 | 380 | 2000 | 2500 | 500 | 750 | 0.5-1 | 50-70 |
| 660 | 1140 | 1430 | 880 | 1300 | |||||
| KGPS--3T | 3Ton | 1500 | 380 | 2400 | 3000 | 500 | 750 | 0.5-1 | 50-80 |
| 660 | 1370 | 1710 | 880 | 1300 | |||||
| KGPS--5T | 5Ton | 2500 | 380 | 4000 | 3200 | 780 | 1170 | 0.3-1 | 60-90 |
| 660 | 2272 | 2840 | 880 | 1300 | |||||
| KGPS--10T | 10Ton | 5000 | 660 | 4560 | 5700 | 880 | 1300 | 0.3-1 | 70-100 |
Remark:
*1.Melting time and power consumption/ton is important to equipment power, raw material shape and weight, operator's skill level and other elements;
*2.Power parameters shall be subject to steel melting; lower power is required by melting of copper, aluminum, zinc or other material with low melting point; please consult Rongdongsheng Technical Department for specific data
*3.Configuration :an intermediate frequency power supply,a capacitor cabinet, an overturn control cabinet, body, two sets of reduction boxes and supports, two water cooling cables, etc
* 4.The above data is of standard model. We also provide customized nonstandard products with different power or melting speed.
Technical and After-Service
1. We also provide customized. Can custom made non-standard products with different power and smelt time according customer requirement.
2. All favorable price will to provide various spare parts depend on your order
3. Moreover, we are kindly help customer to installing and testing the equipment, and provide the install and operate illustrated books .
4. Provide long-term technical services and follow-up service.
5. Product quality guarantee period for a yea
