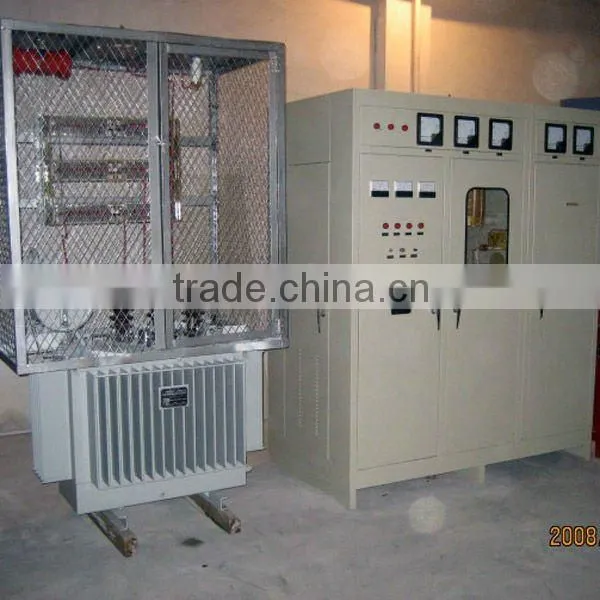

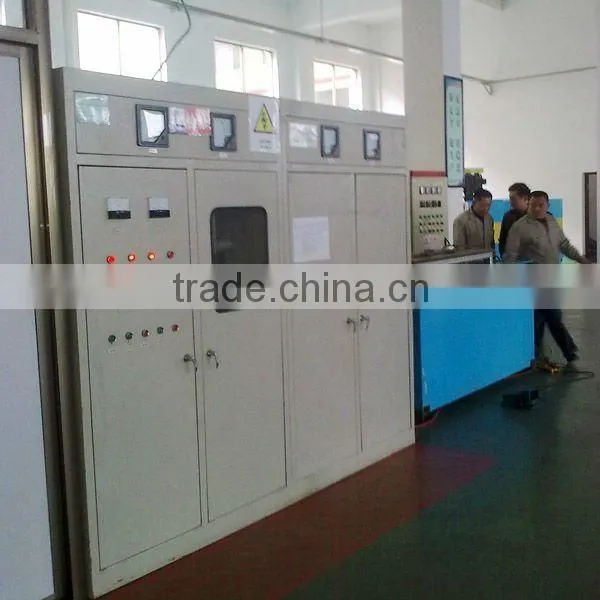

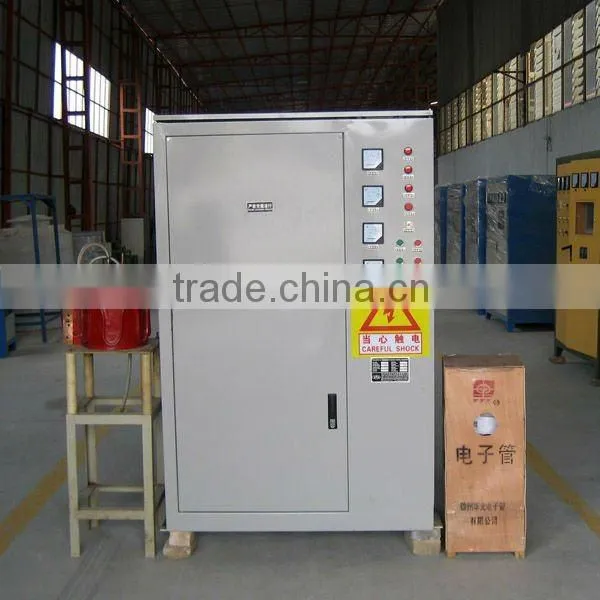

Electric (Vacuum) tube High Frequency Equipment
This equipment adopts for uprated self-excited electric (vacuum) tube oscillator. Through it transform the 50Hz power current into different frequency current and produce a powerful magnetic file in the quenching sensors. The metal workpiece will speedy heating when the electromagnetic field produce eddy current and magnetic leaking loss,. It widely use in heating treatment.
Features:
- Vacuum tube high frequency of ultrahighfrequency at quenching high precision workpiece can keep the workpiece not out of shape,hardening layer ultra-thin;
- the surface of metal can reach high temperature and heating in a few seconds
- Main circuit adopts thyristor pressure regulating system. Can control high voltage at will to realize adjustable power;
- Adopted the best oscillator and filament voltage stabilizer of vacuum tube in the country, stable voltage accuracy high and long use-life
- Control system adopts over current and water pressure protection to avoid equipment from damage by improper operation.
- Rectifier adopts low loss transformer, energy conversation and safety
Application:
High frequency: 100 to 300 KHz mainly use in quenching,annealing and tempering the surface of metal workpiece. Make the hardness of metal workpiece stronger or lower, increase its wear resistance and service life. use for gear, axle, tool, machine tool guide ways, hardware tool and all kinds of machinery partswhole or local or surface quenching, the case depth of quenching below 2.0mm.
