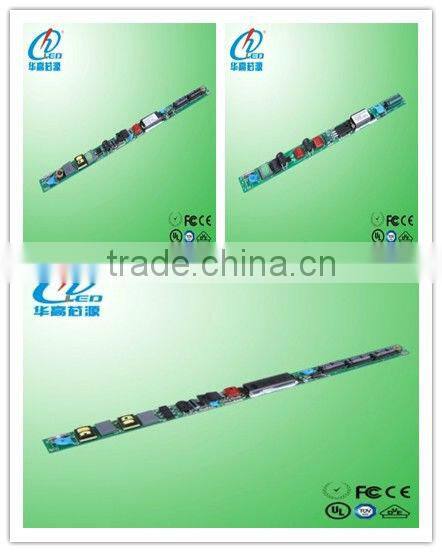

UL EMC CE FCC T8 Isolated 28W Led Tube Driver

FOB Price

US$ 2 - 5 / Piece

100 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Huagao
Model Number	HG-T8-WI40-700	Output Power	Other, 22-28W
Output Type	Single	Input Voltage	Other, AC100V-240V
Output Voltage	DC30-40V	Output Frequency	47-63Hz
Output Current	560-700mA

Product Description

Specifications

28W led tube driver
1.Constant-current power
2.Size;303*17.2*11mm
3.PF:0.95
4:Certificate:CE,RoHS,FCC

LED Tube Interior Isolating Constant-current Power Series

28W led tube driver

Description

1:Constant current output

2.Hight efficiency,low power consumption led light driver

2:Conversion efficiency:>90%

3:Power factor (PF):>0.95

4:Protecting features of short circuit, open circuit, over-heat and overload,

5:Compatible with T8/10 LED tubes.

7.Quick assembly and easy installation led light driver

6:Approved by CE RoHS VDE TUV

Specification

Model	HG-T8-WI40-300	HG-T8-WI40-430	HG-T8-WI40-700
Output power	5-12W	14-22W	22-28W
Output voltage	DC30-40V	DC30-40V	DC30-40V
Series connection	10-12series	10-12series	10-12series
Output current	150-310mA	320-540mA	560-700mA
Input Voltage	AC100-240V	AC100-240V	AC100-240V
Frequency	47-63HZ	47-63HZ	47-63HZ
Conversion efficiency	85%	90%	90%
Power factor	0.92	0.95	0.95
Size	21017.210.5mm	26317.211mm	30317.211mm
Application	Apply T8,T10 Interior isolating power supply
Protection	Over-heat,over-load,short-ciruit,open-circuit protection
Certificate	Approve by VDE,TUV,ETL,FCC,CE

Product presention

Product Features

28W led tube driver

HG-T8-WI40-430 is desighed specially for fluorescent lamp T8, T10. Its maximum power output reaches up to 22W and input high voltage range is 90-305V, meeting the requirement of CE EMC.

It has much excellent quality: high power factor, ultra slim, high efficiency, high precision, full voltage input isolating power. It adopts brand-new Isolation topology circuit design with good quality component, helping it with the characteristics of low noise, energy-saving, environmental friendly and long working life.

Approval Standards: This product conforms to the EN55015 EN55022 standards and has UL certificate.
