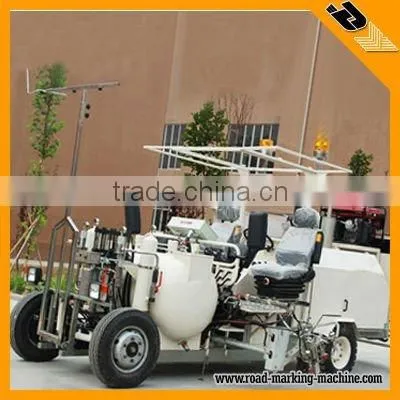

Big Sitting Type Cold Solvent Road Marking Machine(Water Based,Two Component)

US$ 78,000 - 80,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Model Number:

DY-BSAL-II

Zhengzhou Dayu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name DY

Model Number DY-BSAL-II

Specifications

Big Sitting Type Road Marking Machine
Engine:Diesel
Paint:Cold Solvent,Water Based,Two Component
Marking:Automatic

Big Sitting Type Cold Solvent Road Marking Machine(Water Based,Two Component)

Engine:Diesel
Paint:Cold Solvent,Water-based,Two-Component

Marking:Automatic

DY-BSAL-I Big-size Driving Type Airless Road Marking Machine

DY-BSAL-I Big-size Driving Type Airless Road Marking Machine is used for long distance marking eg: high-way,express way etc.

Technical data for DY-BSAL-I Big-size Driving Type Airless Road Marking Machine

1. 4 new-type pneumatic spraying guns and 1 manual spraying gun with lengthening pipe with reverse washed

nozzle 42/20 or 70/20). The four guns can be started at the same time if construction needs.

2. PLC micro-electronic system can freely change the line types such as single or double continuous line

and all kindsof broken lines. And some function eg: paint measuring, line length and area measuring and line thickness

reminding to the marking operation convenient and fast etc. also can be equipped according to the users' needs.

Parameter:

No.	Item	Technical Data
1	Engine	37HP Water-cooled four-cylinder diesel engine
2	Driving system	Variable speed transmission---HTS
3	Driving speed	Forward: 0-22km/h; back off: 0-12km/h, Max climbing capacity: 15°
4	Paint pump	Double hydraulic-driven plunger-type spraying pump. Max flow per pump: 20L/min, Max spraying pressure: 20Mpa
5	Paint tank	500kg
6	Spray width	100-1000mm
7	Glass Beads bin	200kg per bin
8	Dimensions	530016502300mm (LWH)
9	Weight	2500kg
10	Spray gun	4 new-type pneumatic spraying guns and 1manual spraying gun with lengthening pipe
11	Available paint	Cold solvent, water-based and two-component road marking paint
12	Control system	PLC micro-electronic system
