Specifications
DY-BTS Big Driving Thermoplastic Spraying Road Marking Machine is a low-pressure air spray thermoplastic spraying road marking.

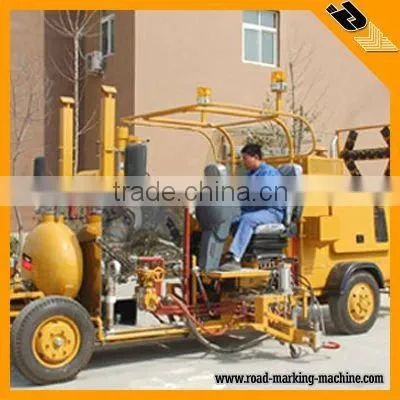

DY-BTS Big Driving Thermoplastic Spraying Road Marking Machine
Description of DY-BTS Road Marking Machine
DY-BTS Big Driving Thermoplastic Spraying Road Marking Machine is a low-pressure air spray thermoplastic spraying road marking machine with high efficiency and flexibility, whose spray thickness is adjustable and not effected by the old marking line.
Main Feature of DY-BTS Road Marking Machine
1. Advanced hydraulic drive with infinitely variable speed control system for precise speed control and adjustment.
2. Moving priority design can be efficiently control machine running to enable the safety in case of emergency.
3. Larger capacity pressurized paint tank and glass bead container, make sure of long-distance and continuous marking job.Conduction oil jacket and internal vertical hydraulic agitator ensure efficiently and uniformly heating.
4. Adjustable double pneumatic atomizing spray guns, flexibly adjust marking width and thickness according to requirements.
5. Infrared furnace can save fuels by more than 50%, thermal efficiency is three times that of the normal furnace.
6. Sensitive, precise and stable computer control system easily realize all operations.
7. All directions warning system make sure of safety during construction.
Technical Data of DY-BTS Road Marking Machine
No. |
Item |
Spec. |
1 |
Engine |
Diesel Engine Electrical Starting |
2 |
Driving System |
HTS variable speed transmission system with automatic brake device |
3 |
Heating Mode |
Infrared gas heater or injecting diesel heater (alternative) |
4 |
Marking Mode |
Spraying with air-auxiliary spraying gun |
5 |
Air Compressor |
2m3/h two diameter piston type compressor,with safe automatic exhaust device |
6 |
Paint Tank |
300L (Erect hydraulic stirring device, Heating and keeping the temperature automatically) |
7 |
Glass Beads System |
120L (The automatic quantitative dispenser synchronous with the paint spraying system) |
8 |
Electronic Control |
Set up various standard line type and Adjust line type |
9 |
Pre-marking System |
Able to pre-marking for another line to improve the marking efficiency |
10 |
Guide Rod |
Hydraulic guide rod |
11 |
Warning Function |
Warm Lights(Can be adjust flicker frequency) |
12 |
Size and Weight |
5300*2200*2300mm 2650kg |
