Specifications
Cold paint road line marking machine1. Japan Honda/Robin engine
2. Cold solvent paint
3. Spraying by gun
4. CE,ISO9001
Road line marking machine
Zhengzhou Dayu Machinery Co.,Ltd. is one leader manufacturer of road line marking machine in China,Have produced road line marking machine over 15years,
Types of Dayu road line marking machine:
1,Thermoplastic road line marking machine
2,Cold paint line marking machine
3,Two-component road line marking machine
4,Road line marking remover
5,Auxiliay road line marking machine
6,Thermoplastic pre-heater

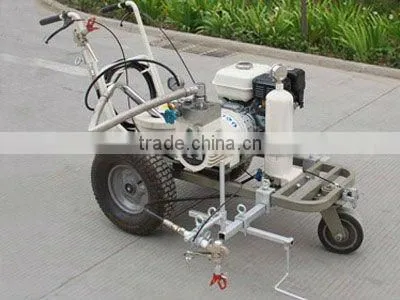

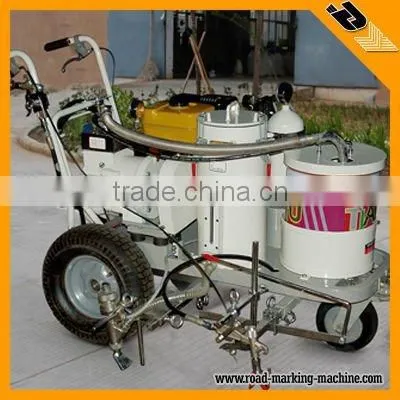

DY-HAL-VI Hand-push cold paint road line marking machine is mainly suitable for the road, the parking lot, the airport, the gas station, the company factory district and spreads delimits to mark the straight line, the dashed line, the curve, the zebra crossing, the writing, the arrow, the graphic mark etc.
Main Feature for DY-HAL-VI Hand-push cold paint road line marking machine
1.Paint pump is imported diaphragmatic high pressure with big flow and stable pressure.
2.Directional device controlled by the brake handle to ensure the road-marking machine to operate freely in straight line or turning.
3.Single new-type manual spray guns with hard side columnar reverse washed nozzles(20/25) which can make the on-spot discharging easy and convenient; the non-arc nozzle ensures the line straight and exact. The 6m lengthening pipe which is installed with the machine can be used for spraying special signs or lines like arrows, letters or destrian lines.
4.Use paint tank(option for special paint tank to improve the work efficiency). There is air in-take filter in the feeding port.
Technical Data of DY-HAL-VI Hand-push cold paint road line marking machine
No. |
Item |
Technical Data |
1 |
Engine |
Japanese Robin 6.0HP or Honda 5.5HP four-stroke air-cooled gasoline engine. |
2 |
Spraying width |
100~200mm |
3 |
Paint pump |
max pressure is 20Mpa (working pressure is 10-15Mpa), max flow: 4.5 L/min |
4 |
Front Wheel directional device |
Directional device controlled by the brake handle |
5 |
Paint tank (optional) |
Use paint tank |
6 |
Spray gun |
Single new-type manual spray guns |
7 |
Total weight |
135kg |
9 |
Dimensions |
1445*1140*910mm |
10 |
Available paint |
Cold solvent paint, water-based paint. |
Dayu other related cold paint road line marking machine:
1,DY-BSAL-I Big-size Driving Type Cold Paint Road Line Marking Machine
2,DY-SSAL Small-size Driving Type Cold Paint Road Line Marking Machine

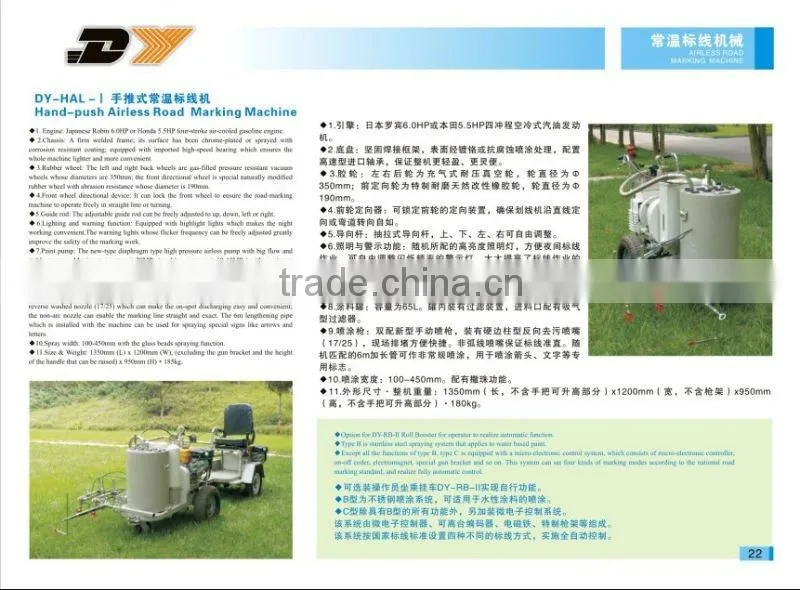

3,DY-HAL-I Hand-push Cold Paint Road Line Marking Machine
4,DY-HAL-II Hand-Push Cold Paint Road Line Marking Machine
5,DY-HAL-V Hand-push Cold Paint Road Line Marking Machine
6.DY-TMAL-I/II (A/B)Truck Mounted Cold Paint Road Line Marking Machine
